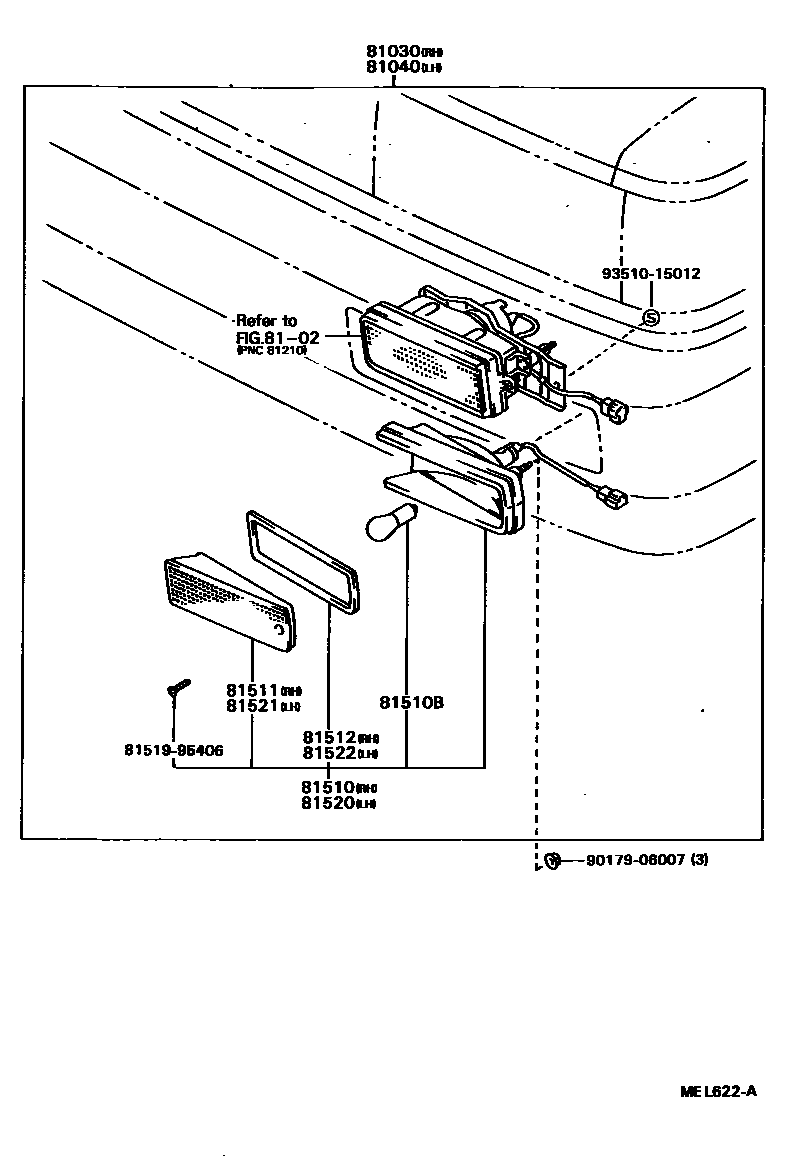

FRONT TURN SIGNAL LAMP

0001 1 0002 1

8102FOG LAMP

→ Go to FIG 81-02

81030LAMP ASSY, FRONT FOG AND TURN SIGNAL, RH

main81030-91602iGX70198810-199704

81040LAMP ASSY, FRONT FOG AND TURN SIGNAL, LH

main81040-91602iGX70198810-199704

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-22290iLX76,YX7#198812-199704

main81510-91602iGX70198810-199704

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iGX70,LX76,YX7#198810-199704

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-22221iLX76,YX7#198812-199704

main81511-22320iGX70198810-199704

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14140iLX76,YX7#198812-199704

main81512-22320iGX70198810-199704

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-22290iLX76,YX7#198812-199704

main81520-91602iGX70198810-199704

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-22221iLX76,YX7#198812-199704

main81521-22320iGX70198810-199704

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14140iLX76,YX7#198812-199704

main81512-22320iGX70198810-199704

8151995406BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-95406

9017906007

main90179-06007

9351015012

main93510-15012

13 parts on this diagram · 2 diagrams in section
