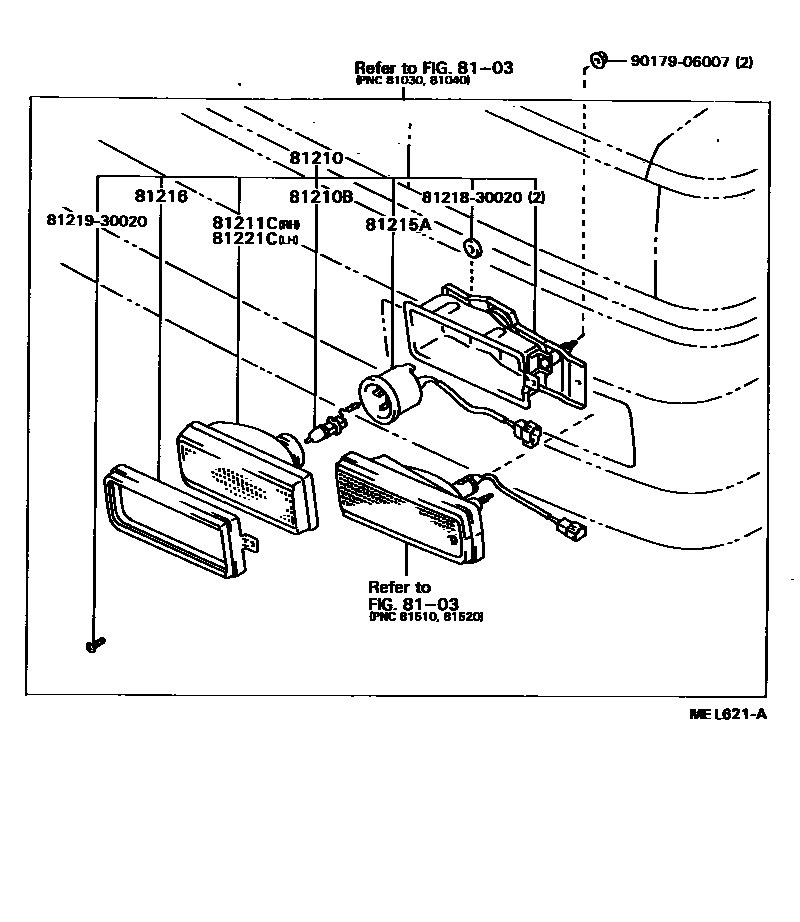

FOG LAMP

8103FRONT TURN SIGNAL LAMP

→ Go to FIG 81-03

81210LAMP ASSY, FOG

main81210-22030iGX70198810-199704

main81220-22020iGX70198810-199704

81210BBULB, FOG LAMP

main90981-13018×2iGX70198810-199704

81211CLAMP UNIT, FOG LAMP, RH

main81212-22030iGX70198810-199704

81215ASOCKET & WIRE, FOG LAMP

main81215-22030×2iGX70198810-199704

81216RIM, FOG LAMP, NO.1

main81216-22030iGX70198810-199704

main81226-22020iGX70198810-199704

81221CLAMP UNIT, FOG LAMP, LH

main81222-22020iGX70198810-199704

8121830020REFLECTOR, FOG LAMP

main81218-30020

8121930020BOLT, FOG LAMP

main81219-30020

9017906007

main90179-06007

10 parts on this diagram · 1 diagram in section
