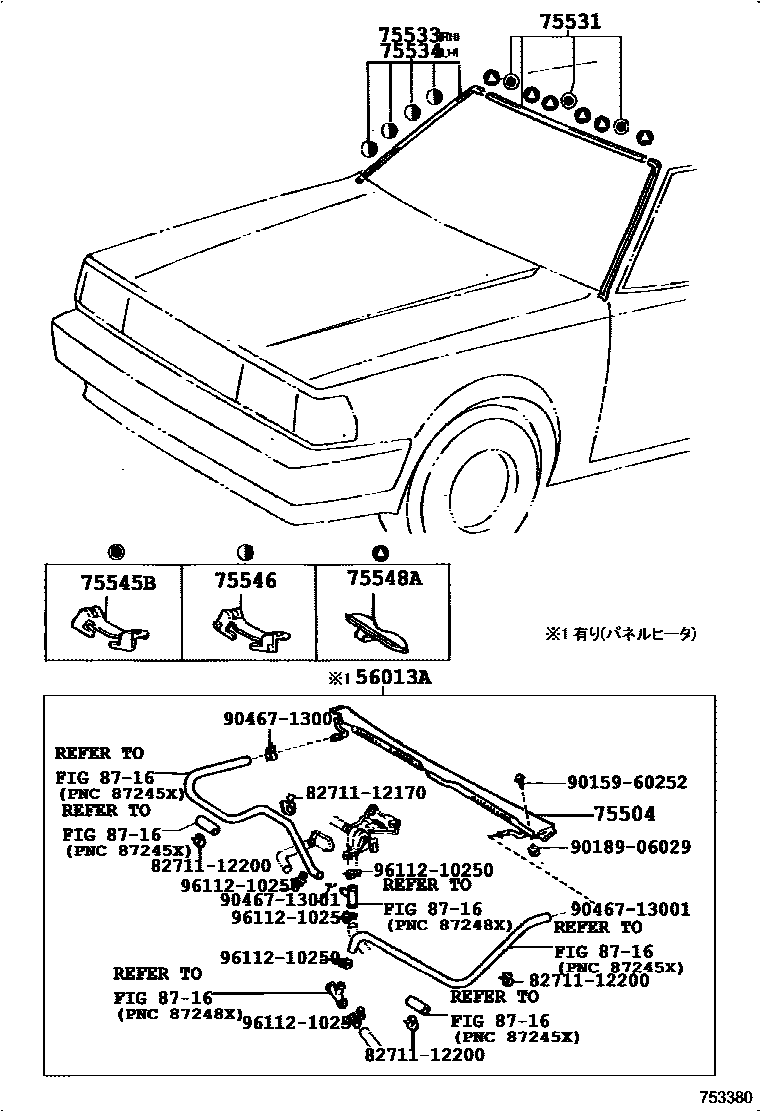

FRONT MOULDING

56013AMOULDING SUB-ASSY, FRONT WINDOW, INNER CENTER

main56013-22010iGX70,LX76,YX76198810-199704

75504MOULDING SUB-ASSY, WINDSHILD, OUTSIDE LOWER

main75504-22040iGX70,LX76,YX76198810-199704

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-22090iGX70,LX76,YX7#198810-199704

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-22120iGX70,LX76,YX7#198810-199704

main75533-22180iGX70,LX76,YX7#198810-199704

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-22120iGX70,LX76,YX7#198810-199704

75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-22040iGX70,LX76,YX7#198810-199704

75546CLIP, WINDSHIELD OUTSIDE MOULDING

main75546-22050iGX70,LX76,YX7#198810-199704

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-22101iGX70,LX76,YX7#198810-199704

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

8271112170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12170

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9015960252

main90159-60252

9018906029

main90189-06029

9046713001

main90467-13001

9611210250

main96112-10250

15 parts on this diagram · 1 diagram in section
