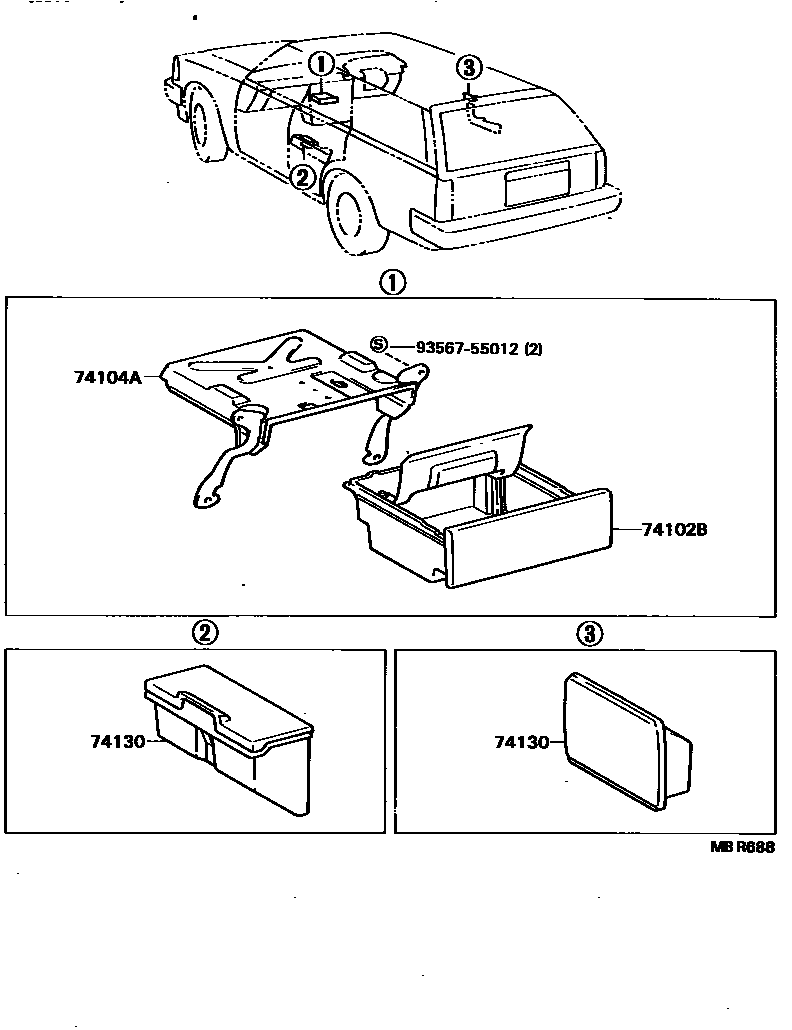

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-22090iGX70,LX76,YX7#198810-199704

main74102-22100iGX70199008-199509

main74102-22120iGX70199509-199704

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-22100iGX70,LX76,YX7#198810-199704

74130RECEPTACLE ASSY, REAR ASH

main74130-22090-06×2iLX76,YX76198812-199302

SABLE,TRIM4#

main74130-22090-13×2iLX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main74130-22090-14×2iLX76,YX76198812-199008

BLUE,TRIM8#

main74130-23010×2iGX70199008-199302

main74130-23020×2iGX70199302-199704

main74130-91602×2iGX70198810-199302

9356755012

main93567-55012

4 parts on this diagram · 1 diagram in section
