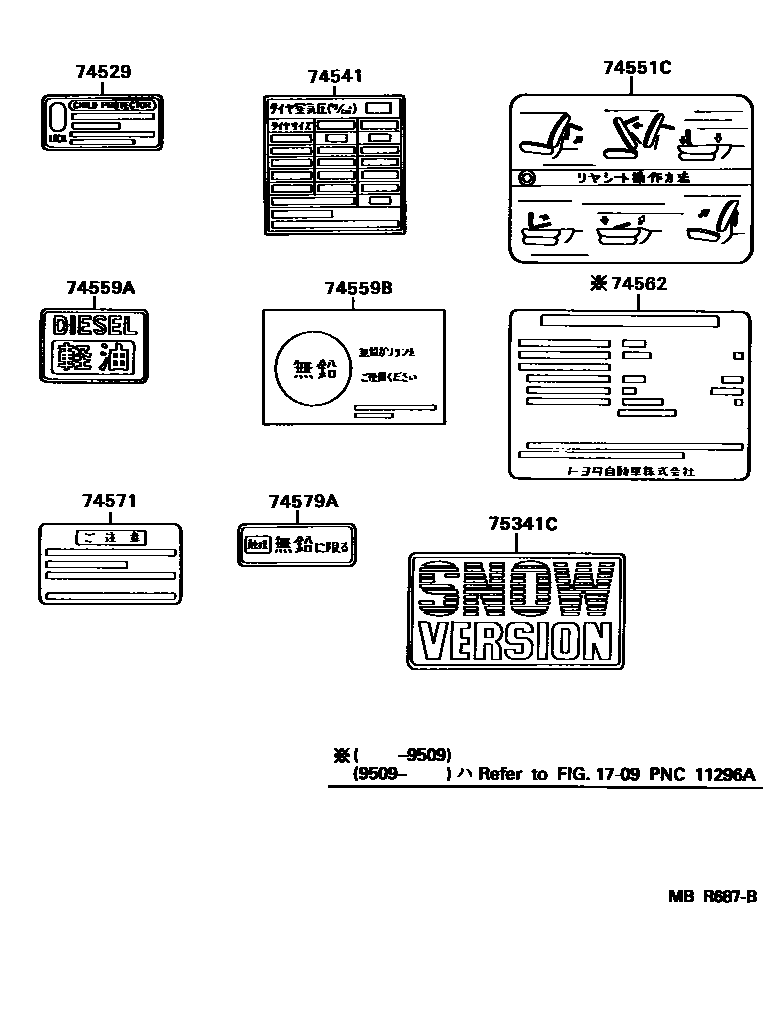

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-12010×2iGX70,LX76,YX7#198810-199704

74541PLATE, TIRE PRESSURE CAUTION

main42661-22480iGX70198810-199008

main42661-22481iGX70199008-199302

main42661-22482iGX70199302-199506

main42661-22483iGX70199509-199704

main42661-22720iGX70199506-199509

main42661-23051iLX76,YX76198812-199302

main42661-23052iLX76,YX78199302-199506

main42661-23053iYX78199506-199704

74551CPLATE, REAR SEAT PROTECTOR CAUTION

main74551-91601iLX76,YX7#198812-199704

74559APLATE, FUEL CAUTION

main74559-14030iLX76198812-199409

74559BLABEL, FUEL INFORMATION

main74559-14010iGX70,YX76198810-198905

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main74562-22400iYX76198812-198908

main74562-22440iLX76198812-199409

main74562-23040iYX76198908-199302

main74562-23050iYX78199302-199509

main74562-24050iGX70198810-199505

74571PLATE, BRAKE FLUID CAUTION

main47288-32010iGX70,LX76,YX7#198810-199408

74579ALABEL, UNLEADED FUEL INFORMATION

main74579-30011iGX70,YX76198810-199203

75341CPLATE, HOOD NAME

main75341-20060iGX70,LX76,YX7#199008-199704

10 parts on this diagram · 2 diagrams in section
