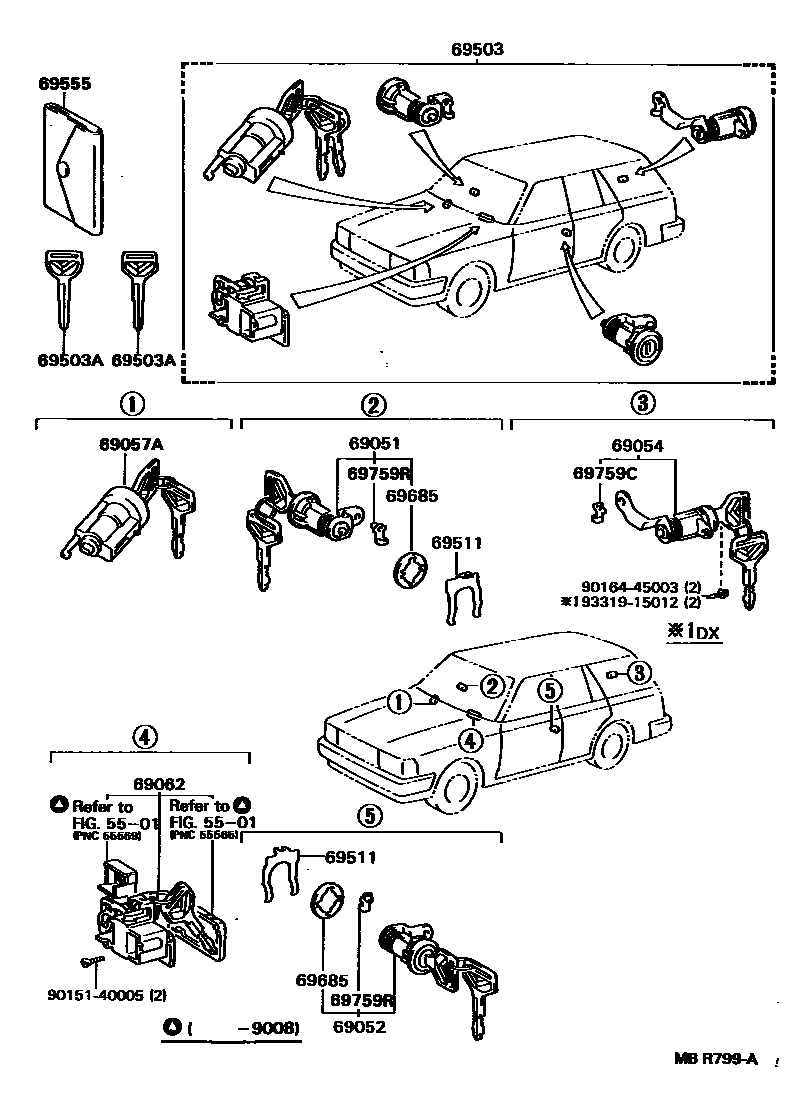

LOCK CYLINDER SET

5501

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-23051iGX70,LX76,YX76198810-199008

main69051-23090iGX70,LX76,YX7#199008-199704

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-23051iGX70,LX76,YX76198810-199008

main69052-23090iGX70,LX76,YX7#199008-199704

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-23021iGX70,YX76..GL,LG198810-199008

main69055-23051iLX76,YX76..DX198812-199008

main69055-23080iLX76,YX7#..DX199008-199704

main69055-23090iGX70,YX7#..GL,LG199008-199704

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-23021iGX70..5F198810-199008

sub69057-91607

main69057-23070iGX70,LX76,YX7#..5F199008-199704

main69057-23090iGX70,YX7#..ATM199008-199704

main69057-91606iYX76..3FC198810-199008

sub69057-91608

main69057-91607iGX70..5F198811-199008

sub69057-14130

main69057-91608iGX70..4FC198811-199008

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-23011-06iGX70,LX76,YX76198810-199008

SABLE,TRIM4#

sub69056-23011

sub69056-22130

sub55565-22010

sub55569-22020

main69056-23011-12iGX70198810-199008

NEW MAROON,TRIM3#

sub69056-23011

sub69056-22130

sub55565-22010

sub55569-22020

main69056-23011-14iGX70,LX76,YX76198810-199008

BLUE,TRIM8#

sub69056-23011

sub69056-22130

sub55565-22010

sub55569-22020

main69056-23060iGX70,LX76,YX7#199008-199704

sub69056-35031

69503CYLINDER SET, LOCK

main69005-23081iGX70..5F198810-199005

sub69005-91642

main69005-23090iLX76,YX7#..DX199008-199704

main69005-23111iLX76,YX76..DX198812-199005

main69005-23130iGX70,YX7#..5F..(GL,LG)199008-199704

main69005-23140iGX70,YX7#..ATM199008-199704

main69005-91631iYX76..3FC198810-199008

sub69005-91643

main69005-91642iGX70..5F198811-199008

main69005-91643iGX70..4FC198811-199008

main69005-91644iLX76,YX76..DX199005-199008

main69005-91645iYX76..5F..GL199005-199008

69503AKEY, BLANK

main90999-00107iGX70,LX76,YX76198810-199008

main90999-00108iGX70,LX76,YX76198810-199008

main90999-00112iGX70,LX76,YX7#199008-199704

main90999-00114iGX70,LX76,YX7#199008-199704

main90999-00123iGX70,LX76,YX76198810-199008

main90999-00134iGX70,LX76,YX7#199008-199704

sub90999-00146

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iGX70,LX76,YX7#198810-199704

69555COVER, KEY

main69555-17020iGX70,LX76,YX78199210-199704

main69555-20010iLX76,YX76..DX198810-199302

69685PAD, LOCK CYLINDER

main69513-87001iGX70,LX76,YX7#198810-199704

sub69513-32010

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-20090iGX70,LX76,YX76198810-199011

main69759-30050iGX70,LX76,YX7#199011-199704

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-20080iGX70,LX76,YX76199008-199011

main69759-20080iGX70,LX76,YX76198810-199008

ORANGE

main69759-20090iGX70,LX76,YX76198810-199008

PINK

main69759-20090iGX70,LX76,YX76199008-199011

main69759-30040iGX70,LX76,YX7#199011-199704

main69759-30050iGX70,LX76,YX7#199011-199704

9015140005

main90151-40005

9016445003

main90164-45003

9331915012

main93319-15012

16 parts on this diagram · 1 diagram in section
