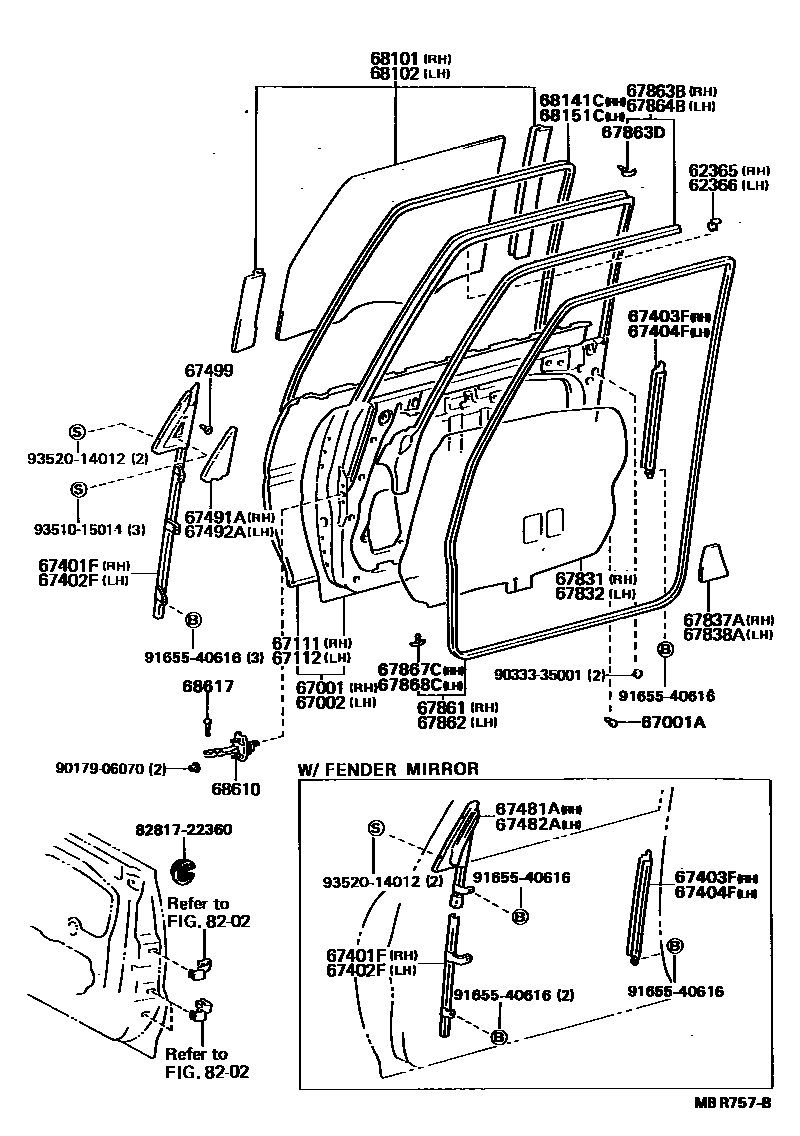

FRONT DOOR PANEL & GLASS

0001 1 0002 1

62365CLIP, DOOR WINDOW GLASS, FRONT RH

main62369-22030iLX76,YX76198812-199302

main62369-22040×2iGX70198810-199008

62366CLIP, DOOR WINDOW GLASS, FRONT LH

main62369-22030iLX76,YX76198812-199302

main62369-22040iGX70199008-199302

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-22220iGX70,LX76,YX78199302-199704

main67001-22230iGX70,LX76,YX76198810-199302

67001ACUSHION, FRONT DOOR PANEL

main90541-09006×2iGX70,LX76,YX7#198810-199704

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-22220iGX70,LX76,YX78199302-199704

main67002-22230iGX70,LX76,YX76198810-199302

67111PANEL, FRONT DOOR, OUTER RH

main67111-22130iGX70,LX76,YX7#198810-199704

67112PANEL, FRONT DOOR, OUTER LH

main67112-22140iGX70,LX76,YX7#198810-199704

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-22080iGX70198810-199704

main67401-22090iGX70198810-199704

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-22080iGX70198810-199704

main67402-22090iGX70198810-199704

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-22040iGX70,LX76,YX7#198810-199704

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-22040iGX70,LX76,YX7#198810-199704

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-22070iGX70,LX76,YX7#198810-199704

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-22040iGX70,LX76,YX7#198810-199704

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-22040iGX70,YX7#..GL,LG198810-199704

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-22040iGX70,YX7#..GL,LG198810-199704

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010×2iGX70,YX7#..GL,LG198810-199704

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-22100iGX70,LX76,YX7#198810-199406

main67831-22130×2iGX70,LX76,YX76198810-199008

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-22130iGX70,LX76,YX76199008-199302

main67832-22010iGX70,LX76,YX7#198810-199406

67837ASEAL, FRONT DOOR VENT, RH

main67837-22020iGX70,LX76,YX76198810-199302

67838ASEAL, FRONT DOOR VENT, LH

main67838-22020iGX70,LX76,YX78199302-199704

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-22140iGX70,LX76,YX7#198810-199704

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-22140iGX70,LX76,YX7#198810-199704

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-22010iGX70,LX76,YX7#198810-199704

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67868-30040×4iGX70,LX76,YX7#198810-199704

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-22010iGX70,LX76,YX7#198810-199704

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×19iGX70,YX78199412-199704

main67867-22020×19iGX70,LX76,YX7#198810-199412

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×19iGX70,YX78199412-199704

main67868-22010×19iGX70,LX76,YX7#198810-199412

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-22070iGX70198810-199704

main68101-22080iGX70199008-199704

main68101-22090iGX70198810-199704

main68101-22100iGX70199008-199704

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-22070iGX70198810-199704

main68102-22080iGX70199008-199704

main68102-22090iGX70198810-199704

main68102-22100iGX70199008-199704

68141CRUN, FRONT DOOR GLASS, RH

main68141-22060iGX70198810-199704

main68141-22070iYX7#..GL198812-199704

68151CRUN, FRONT DOOR GLASS, LH

main68151-22010iLX76,YX7#198812-199704

main68151-22020iYX7#..GL198812-199704

68610CHECK ASSY, FRONT DOOR

main68610-22030×2iGX70,LX76,YX76198810-199302

main68610-23010×2iGX70,LX76,YX78199302-199704

68617PIN, FRONT DOOR CHECK

main68617-22020×2iGX70,LX76,YX76198810-199302

main68617-23010×2iGX70,LX76,YX78199302-199704

8202WIRING & CLAMP

→ Go to FIG 82-02

8281722360PROTECTOR, WIRING HARNESS, NO.1

main82817-22360

9017906070

main90179-06070

9033335001

main90333-35001

9165540616

main91655-40616

9351015011

main93510-15011

9352014012

main93520-14012

40 parts on this diagram · 2 diagrams in section
