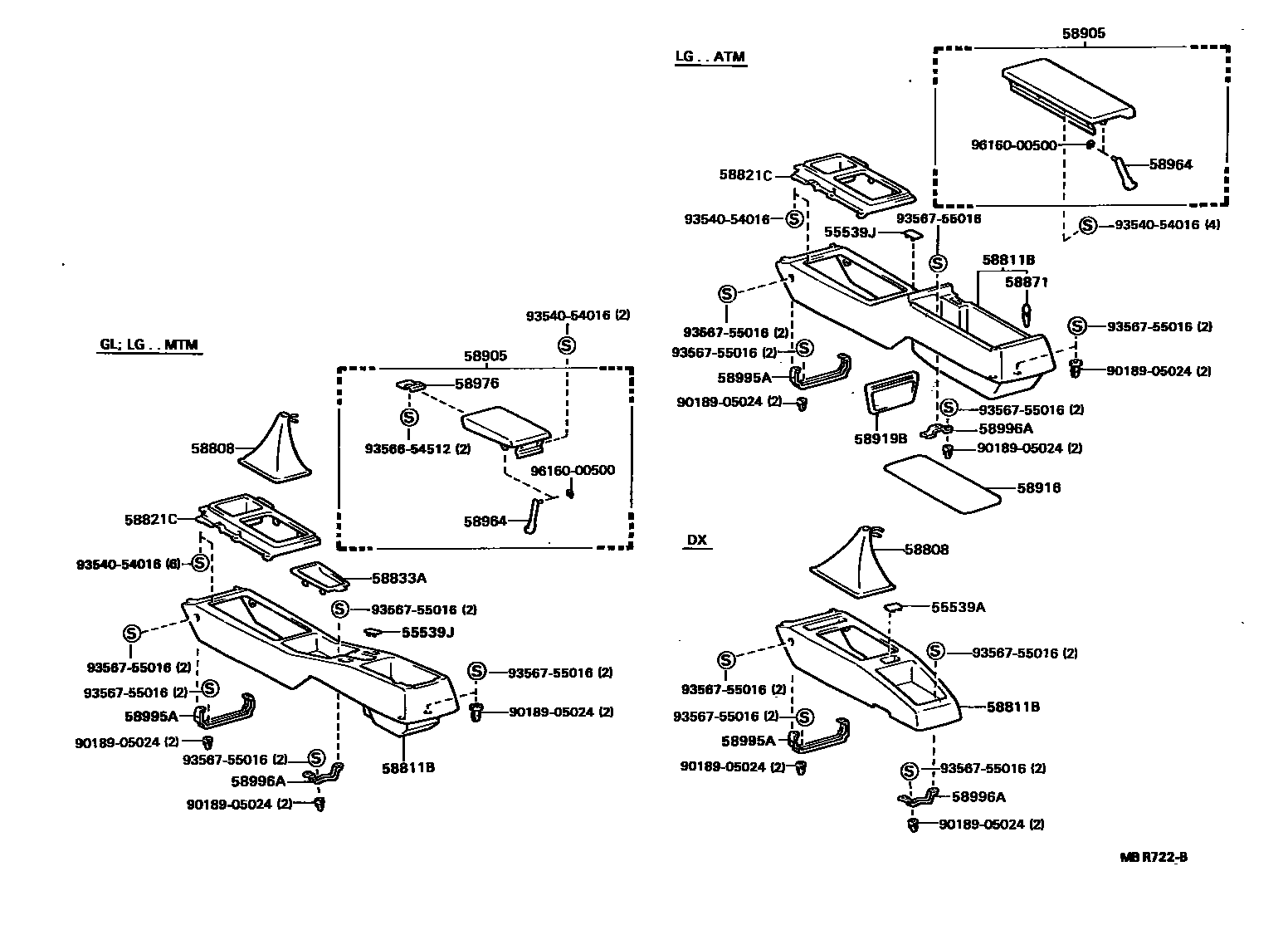

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-24010-20iLX76,YX76..DX198812-199008

BLUE,TRIM8#

main55539-24010-43iLX76,YX7#..DX199008-199704

MEDIUM GRAY,TRIM1#

main55539-24010-56iLX76,YX76..DX198812-199302

SABLE,TRIM4#

55539JCOVER, SPARE SWITCH HOLE

main55539-24010-10iGX70198810-199302

NEW MAROON,TRIM3#

main55539-24010-20iGX70,YX76..GL,LG198810-199008

BLUE,TRIM8#

main55539-24010-43iGX70,YX7#..GL,LG199008-199704

MEDIUM GRAY,TRIM1#

main55539-24010-56iGX70,YX76..GL,LG198810-199704

SABLE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-22070-06iGX70..5F198810-199704

SABLE,TRIM4#

main58808-22070-12iGX70..5F198810-199302

NEW MAROON,TRIM3#

main58808-22070-13iGX70..5F199008-199704

MEDIUM GRAY,TRIM1#

main58808-22070-14iGX70..5F198810-199008

BLUE,TRIM8#

main58808-22080-06iLX76,YX76..5F198812-199302

SABLE,TRIM4#

main58808-22080-13iLX76,YX7#..5F199008-199704

MEDIUM GRAY,TRIM1#

main58808-22080-14iLX76,YX76..5F198812-199008

BLUE,TRIM8#

58811BBOX, CONSOLE

main58801-22150-06iGX70,YX76..(3FC,5F)..(GL,LG)198810-199704

SABLE,TRIM4#

main58801-22150-12iGX70..5F198810-199302

NEW MAROON,TRIM3#

main58801-22150-13iGX70,YX7#..(3FC,5F)..(GL,LG)199008-199704

MEDIUM GRAY,TRIM1#

main58801-22150-14iGX70,YX76..(3FC,5F)..(GL,LG)198810-199008

BLUE,TRIM8#

main58801-22250-02iGX70..4FC198810-199302

NEW MAROON,TRIM3#

main58801-22250-03iGX70..4FC199008-199704

MEDIUM GRAY,TRIM1#

main58801-22250-04iGX70..4FC198810-199008

BLUE,TRIM8#

main58801-22250-06iGX70..4FC198810-199704

SABLE,TRIM4#

main58811-22160-06iLX76,YX76..DX198812-199302

SABLE,TRIM4#

main58811-22160-13iLX76,YX7#..DX199008-199704

MEDIUM GRAY,TRIM1#

main58811-22160-14iLX76,YX76..DX198812-199008

BLUE,TRIM8#

58821CPANEL, CONSOLE, UPPER

main58821-22080-06iYX76..5F..GL198812-199302

SABLE,TRIM4#

main58821-22080-13iYX7#..5F..GL199008-199704

MEDIUM GRAY,TRIM1#

main58821-22080-14iYX76..5F..GL198812-199008

BLUE,TRIM8#

main58821-22091-06iGX70;YX76..3FC198810-199704

SABLE,TRIM4#

main58821-22091-12iGX70198810-199302

NEW MAROON,TRIM3#

main58821-22091-13iGX70;YX7#..3FC199008-199704

MEDIUM GRAY,TRIM1#

main58821-22091-14iGX70;YX76..3FC198810-199008

BLUE,TRIM8#

58833ACOVER, CONSOLE, UPPER

main58833-22060-06iGX70,YX76..(3FC,5F)..(GL,LG)198810-199704

SABLE,TRIM4#

main58833-22060-12iGX70..5F198810-199302

NEW MAROON,TRIM3#

main58833-22060-13iGX70,YX7#..(3FC,5F)..(GL,LG)199008-199704

MEDIUM GRAY,TRIM1#

main58833-22060-14iGX70,YX76..(3FC,5F)..(GL,LG)198810-199008

BLUE,TRIM8#

58871CUSHION, CONSOLE BOX

main90541-03015iGX70..4FC198810-199008

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-22050-06iGX70,YX76..(3FC,5F)..(GL,LG)198810-199704

SABLE,TRIM4#

main58905-22050-13iGX70,YX7#..(3FC,5F)..(GL,LG)199008-199704

MEDIUM GRAY,TRIM1#

main58905-22050-14iGX70,YX76..(3FC,5F)..(GL,LG)198810-199008

BLUE,TRIM8#

main58905-22050-22iGX70..5F198810-199302

NEW MAROON,TRIM3#

main58905-22070-06iGX70..4FC198810-199704

SABLE,TRIM4#

main58905-22070-13iGX70..4FC199008-199704

MEDIUM GRAY,TRIM1#

main58905-22070-14iGX70..4FC198810-199008

BLUE,TRIM8#

main58905-22070-22iGX70..4FC198810-199302

NEW MAROON,TRIM3#

58916MAT, BOX BOTTOM

main58916-22070-02iGX70..4FC198810-199302

NEW MAROON,TRIM3#

main58916-22070-03iGX70..4FC199008-199704

MEDIUM GRAY,TRIM1#

main58916-22070-04iGX70..4FC198810-199008

BLUE,TRIM8#

main58916-22070-06iGX70..4FC198810-199704

SABLE,TRIM4#

58919BPLATE, CONSOLE BOX

main58919-22030×2iGX70..4FC198810-199302

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-22030iGX70..4FC198810-199704

main58964-30030iGX70,YX7#..(3FC,5F)..(GL,LG)198810-199704

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iGX70,YX7#..(3FC,5F)..(GL,LG)198810-199704

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-22010iGX70,LX76,YX7#198810-199704

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-22030iGX70,LX76,YX7#..3FC,5F198810-199704

main58996-22040iGX70..4FC198810-199704

9018905024

main90189-05024

9354054016

main93540-54016

9356654512

main93566-54512

9356755016

main93567-55016

9616000500

main96160-00500

19 parts on this diagram · 1 diagram in section
