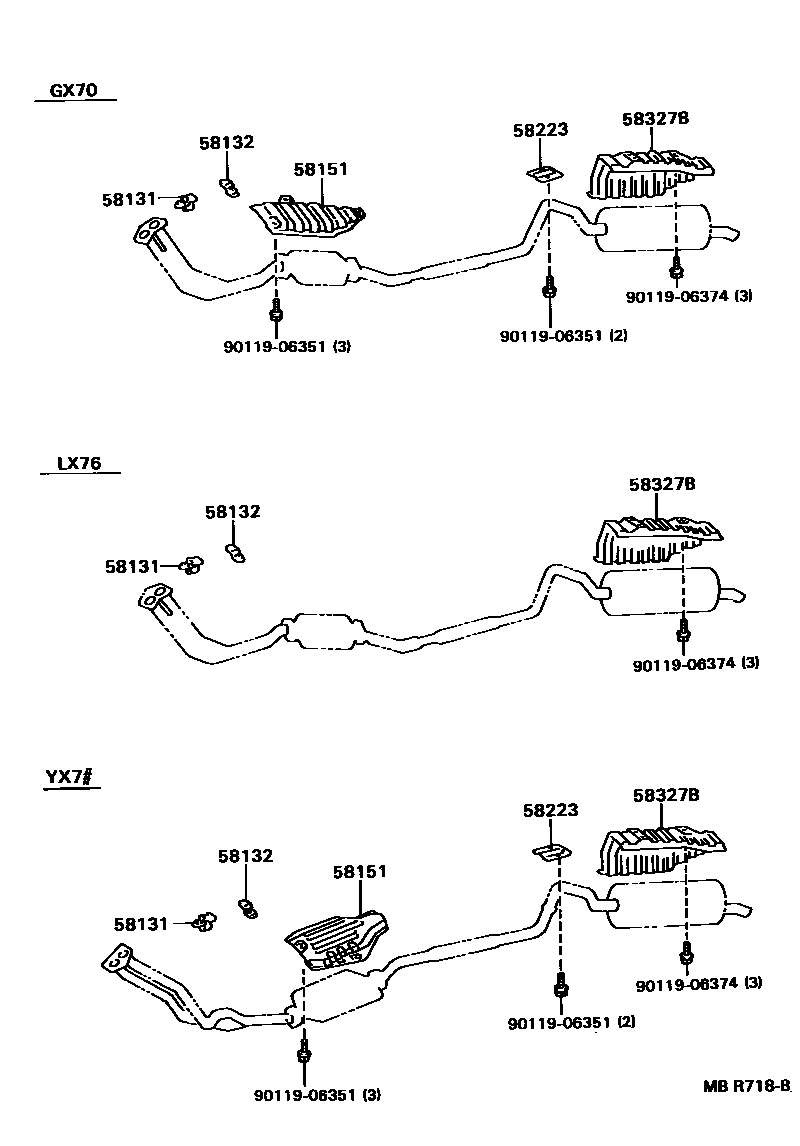

FLOOR INSULATOR

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-22040iGX70,LX76,YX7#198810-199704

58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

main58132-22040iGX70,LX76,YX7#198810-199704

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-22050iYX7#198812-199704

main58151-22050iGX70198810-199704

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-91601iGX70,YX7#198810-199704

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-23010iGX70,LX76,YX7#198810-199704

9011906351

main90119-06351

9011906374

main90119-06374

7 parts on this diagram · 1 diagram in section
