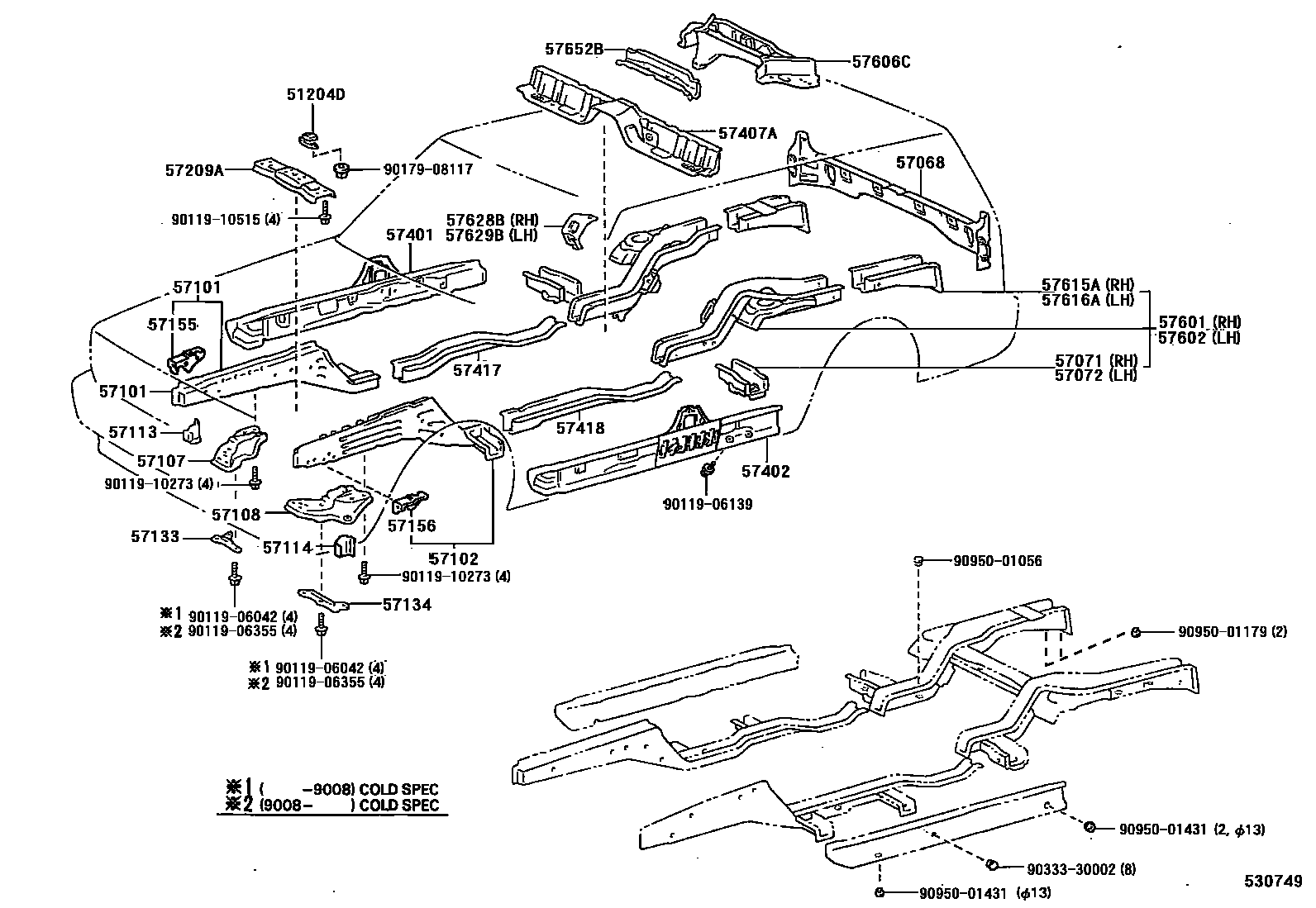

FLOOR SIDE MEMBER

51204DDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-22100iLX76198812-199409

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-23020iGX70,LX76,YX7#198810-199704

57071BOX SUB-ASSY, TORQUE, REAR RH

main57071-23010iGX70,LX76,YX7#198810-199704

57072BOX SUB-ASSY, TORQUE, REAR LH

main57072-23010iGX70,LX76,YX7#198810-199704

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-22240iGX70,LX76,YX7#198810-199704

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-22280iGX70,LX76,YX7#198810-199704

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-22070iGX70,LX76,YX7#198810-199704

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-22140iGX70,LX76,YX7#198810-199704

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-22060iGX70,LX76,YX7#198810-199704

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-22060iGX70,LX76,YX7#198810-199704

57133PROTECTOR, STRUT BAR BRACKET, RH

main57133-22020iGX70,LX76,YX7#198810-199704

57134PROTECTOR, STRUT BAR BRACKET, LH

main57134-22010iGX70,LX76,YX7#198810-199704

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-22090iGX70,LX76,YX7#199008-199704

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-22070iGX70,LX76,YX7#199008-199704

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-22130iYX7#..5F198812-199704

main57209-22140iYX7#..3FC198812-199704

main57209-22160iGX70..4FC198810-199704

main57255-22190iGX70..5F198810-199608

main57255-22240iLX76198812-199409

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-22080iGX70,LX76,YX7#198810-199509

main57401-22170iGX70,YX78199509-199704

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-22080iGX70,LX76,YX7#198810-199509

main57402-22170iGX70,YX78199509-199704

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-23010iGX70,LX76,YX7#198810-199704

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-22050iGX70,LX76,YX7#198810-199704

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-22050iGX70,LX76,YX7#198810-199704

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-23010iLX76,YX7#198812-199704

main57601-23020iGX70198810-199704

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-23010iLX76,YX7#198812-199704

main57602-23020iGX70198810-199704

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-23010iGX70,LX76,YX7#198810-199704

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-23020iGX70,LX76,YX7#198810-199704

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-23020iGX70,LX76,YX7#198810-199704

57628BPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-91601iGX70,LX76,YX7#198810-199704

57629BPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-91604iGX70,LX76,YX7#198810-199704

57652BMEMBER, REAR FLOOR CROSS, FRONT RH

main57652-91604iGX70,LX76,YX7#198810-199704

9011906042

main90119-06042

9011906139

main90119-06139

9011906355

main90119-06355

9011910273

main90119-10273

9011910515

main90119-10515

9017908117

main90179-08117

9033330002

main90333-30002

9095001056

main90950-01056

9095001179

main90950-01179

9095001431

main90950-01431

38 parts on this diagram · 1 diagram in section
