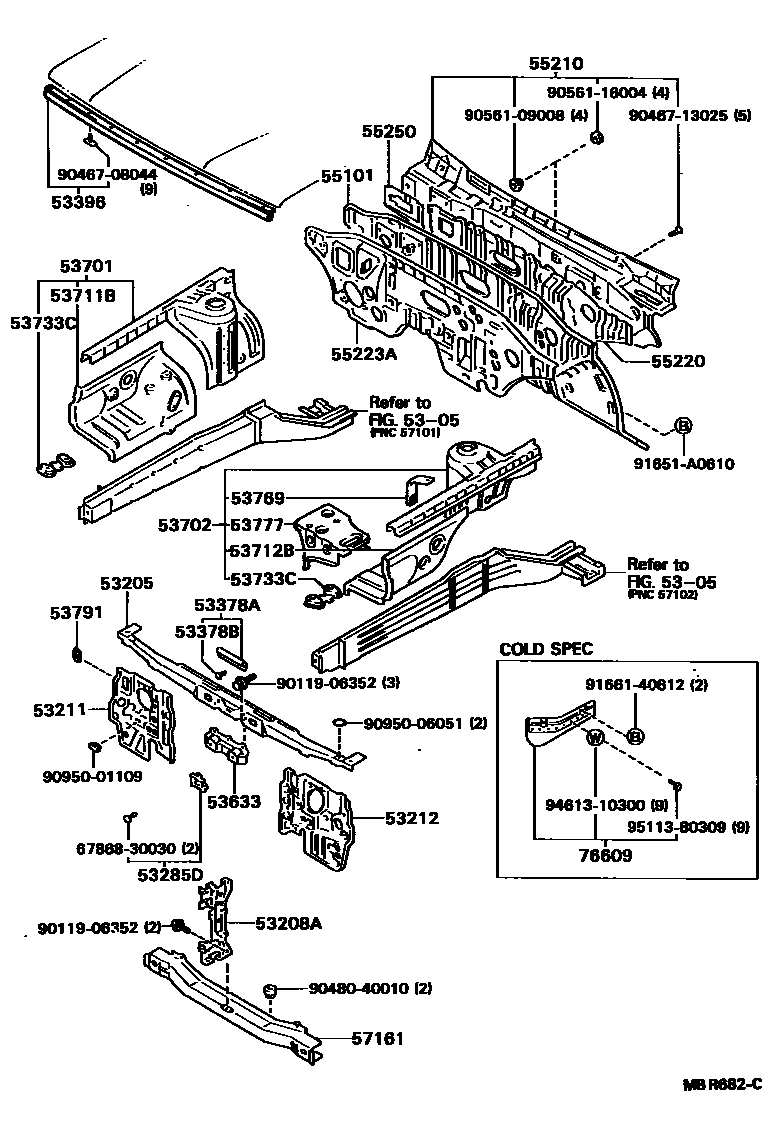

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-22040iLX76198812-199008

main53205-22140iGX70,LX76,YX7#198810-199704

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-22031iGX70,LX76,YX7#198810-199704

53211SUPPORT, RADIATOR, RH

main53211-22211iGX70,LX76,YX7#198810-199704

53212SUPPORT, RADIATOR, LH

main53212-22131iGX70,LX76,YX76198810-199704

main53212-22190iYX78199302-199704

53285DCOVER, FRONT BUMPER ARM HOLE

main53285-22020iGX70,LX76,YX7#198810-199704

main53286-22010iGX70,LX76,YX7#198810-199704

53378ASEAL, HOOD AIR INTAKE DUCT

main53378-22010iLX76198812-199409

53378BCLIP(FOR HOOD AIR INTAKE DUCT SEAL)

main90467-08011×2iLX76198812-199409

53396SEAL, RADIATOR SUPPORT TO HEADLAMP

main53396-22011iGX70,LX76,YX7#198810-199704

53633SHIELD, HOOD LOCK CONTROL CABLE

main53633-22030iGX70,LX76,YX7#198810-199704

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-22390iGX70198810-199704

main53701-22400iYX76198812-199301

main53701-22420iYX7#199301-199704

main53701-22520iLX76198812-199409

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-22400iLX76198812-199302

main53702-22480iGX70,LX76,YX7#198810-199704

53711BAPRON, FRONT FENDER, FRONT RH

main53711-22320iGX70,LX76198810-199704

main53711-22340iYX7#198812-199704

53712BAPRON, FRONT FENDER, FRONT LH

main53712-22290iGX70,LX76,YX76198810-199302

main53712-22291iGX70,LX76,YX78199302-199704

main53712-22310iLX76198812-199302

53733CPATCH, FRONT FENDER APRON

main53733-22060iGX70,LX76,YX7#198810-199704

53769PLATE, IGNITION COIL MOUNTING, LH

main53769-22030iGX70,LX76198810-199704

53777SUPPORT, BATTERY CARRIER, NO.2

main53777-22030iLX76198812-199302

53791COVER, COOL AIR INTAKE HOLE

main53791-22020iLX76,YX7#198812-199704

55101PANEL SUB-ASSY, DASH

main55101-22590iYX78199302-199704

main55101-22911iGX70198810-199704

main55101-22913iLX76198812-199409

main55101-22927iYX76198812-199302

55210INSULATOR ASSY, DASH PANEL

main55210-22180iGX70,LX76,YX76198810-199302

main55210-22200iGX70,LX76,YX78199302-199704

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-22010iGX70,LX76,YX7#198810-199704

55223AINSULATOR, DASH PANEL, OUTER

main55223-22020iLX76198812-199409

55250DOOR ASSY, COWL SIDE VENTILATOR, RH

main55250-22010iGX70,LX76,YX7#198810-199704

57161CROSSMEMBER, FRONT

main57104-22110iGX70,LX76,YX7#198810-199704

76609MUDGUARD SUB-ASSY, FRONT SIDE MEMBER

main76609-22010iGX70,YX7#..ATM198810-199704

6786830030CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-30030

9011906352

main90119-06352

9046708044

main90467-08044

9046713025

main90467-13025

9048040010

main90480-40010

9056109008

main90561-09008

9056116004

main90561-16004

9095001109

main90950-01109

9095006051

main90950-06051

91651A0610

main91651-A0610

9166140612

main91661-40612

9461310300

main94613-10300

9511380309

main95113-80309

38 parts on this diagram · 2 diagrams in section
