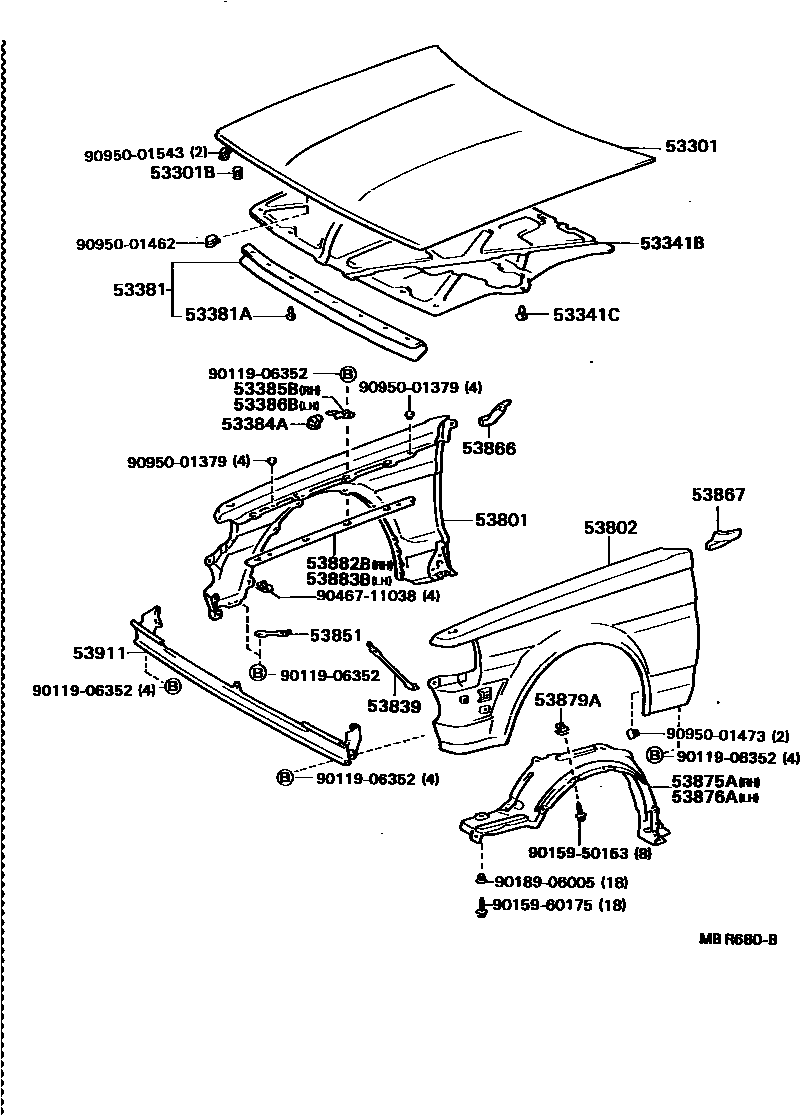

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-91606iGX70,LX76,YX7#198810-199704

53301BCUSHION, HOOD BUMPER

main90541-15004×2iGX70,LX76,YX7#198810-199704

L=29

main90541-15111×2iGX70,LX76,YX7#198810-199704

L=26

53341BINSULATOR, HOOD

main53341-22071iGX70,YX76198810-199210

main53341-22072iGX70,YX7#199210-199310

main53341-22080iLX76198812-199310

53341CCLIP(FOR HOOD INSULATOR)

main90467-09008-01×15iLX76,YX78199302-199704

BLACK,TRIM1#

main90467-09008-11×15iGX70; LX76,YX76..DX; YX76..GL198810-199008

BLACK,TRIM3#,4#,8#; BLACK,TRIM4#,8#; BLACK,TRIM8#

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-22060iGX70,YX7#198810-199704

main53381-22070iLX76198812-199409

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×7iGX70,LX76,YX7#198810-199704

53384ABUMPER, FENDER TO HOOD

main53384-22050×2iGX70,LX76,YX7#198810-199704

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-20020iGX70,LX76,YX7#198810-199704

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-20020iGX70,LX76,YX7#198810-199704

53801FENDER SUB-ASSY, FRONT RH

main53801-22740iGX70198810-199704

main53801-22890iYX7#..GL198812-199704

main53801-2A050iLX76,YX7#198812-199704

main53801-2A060iGX70198810-199704

53802FENDER SUB-ASSY, FRONT LH

main53802-22860iYX7#..GL198812-199704

main53802-22870iGX70198810-199704

main53802-2A020iLX76,YX7#198812-199704

main53802-2A030iGX70198810-199704

53839BRACE, FRONT FENDER, LH

main53852-22020iGX70,LX76,YX7#198810-199704

53851BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH

main53851-22020iGX70,LX76,YX7#198810-199704

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-22050iGX70,LX76,YX7#198810-199704

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-22050iGX70,LX76,YX7#198810-199704

53875ALINER, FRONT FENDER, RH

main53875-22040iGX70,LX76,YX7#198810-199704

53876ALINER, FRONT FENDER, LH

main53876-22040iGX70,LX76,YX7#198810-199704

53879ARETAINER, FRONT FENDER LINER

main53879-22030×8iGX70,LX76,YX7#198810-199704

53882BSEAL, FRONT FENDER, RH

main53882-22050iGX70,LX76,YX7#198812-199704

main53882-22060iGX70198810-198812

53883BSEAL, FRONT FENDER, LH

main53882-22050iGX70,LX76,YX7#198812-199704

main53882-22060iGX70198810-198812

53911PANEL, FRONT VALANCE

main53901-22110iGX70,LX76,YX7#198810-199704

9011906352

main90119-06352

9015950153

main90159-50153

9015960175

main90159-60175

9018906005

main90189-06005

9046711038

main90467-11038

9095001379

main90950-01379

9095001462

main90950-01462

9095001473

main90950-01473

9095001543

main90950-01543

30 parts on this diagram · 1 diagram in section
