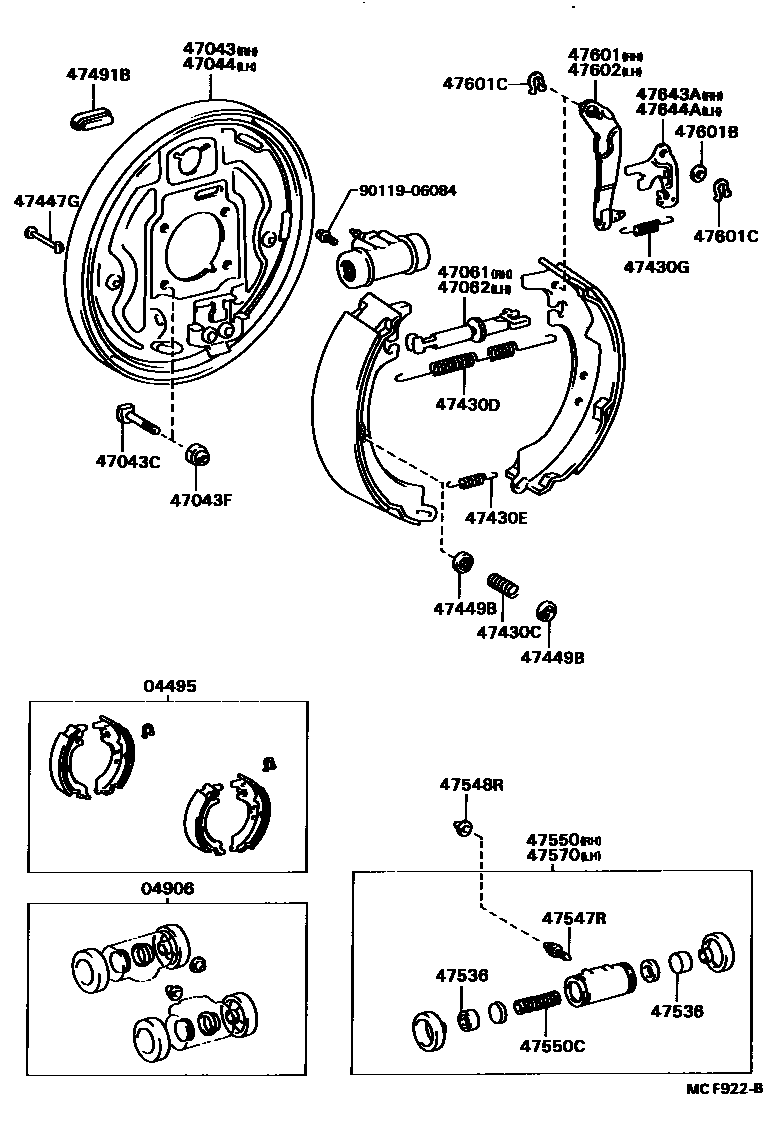

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0003 1

04495SHOE KIT, REAR BRAKE

main04495-22081iGX70,LX76,YX76198810-199002

main04495-22090iGX70,LX76,YX7#199002-199510

main04495-43020iGX70,YX78199510-199704

main04497-22041iGX70,LX76,YX76198810-199001

REBUILT

main04497-22050iGX70,YX78199409-199510

REBUILT

04906CUP KIT, REAR WHEEL CYLINDER

main04906-14020iGX70,LX76,YX76198810-199001

main04906-22030iGX70,LX76,YX76199001-199007

main04906-22040iGX70,LX76,YX7#199105-199704

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-22060iGX70,LX76,YX7#198810-199704

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011×8iGX70,LX76,YX7#198810-199704

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000×8iGX70,LX76,YX7#198810-199704

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-22060iGX70,LX76,YX7#198810-199704

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-32020iGX70,LX76,YX7#198810-199509

main47061-43010iGX70,YX78199509-199704

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-32020iGX70,LX76,YX7#198810-199509

main47062-43010iGX70,YX78199509-199704

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017×4iGX70,LX76,YX76198810-199008

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23375×2iGX70,LX76,YX76198810-199008

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346×2iGX70,LX76,YX76198810-199008

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011×2iGX70,LX76,YX76198810-199008

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030×4iGX70,LX76,YX7#199008-199704

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iGX70,LX76,YX76198810-199008

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iGX70,LX76,YX7#198810-199704

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020×4iGX70,LX76,YX76198810-199001

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-26010×2iGX70,LX76,YX7#198810-199704

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iGX70,LX76,YX7#198810-199704

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-22090iGX70,LX76,YX76198810-199001

main47550-22091iGX70,LX76,YX76199001-199007

main47550-22100iGX70,LX76,YX7#199105-199704

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-20010×2iGX70,LX76,YX76198810-199001

main90501-09079×2iGX70,LX76,YX7#199105-199501

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-22090iGX70,LX76,YX76198810-199001

main47550-22091iGX70,LX76,YX76199001-199007

main47550-22100iGX70,LX76,YX7#199105-199704

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iGX70,LX76,YX7#198810-199704

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iGX70,LX76,YX7#198810-199704

main90564-08151iGX70,LX76,YX7#198810-199704

main90564-08152iGX70,LX76,YX7#198810-199704

main90564-08172iGX70,LX76,YX7#198810-199704

main90564-08173iGX70,LX76,YX7#198810-199704

main90564-08174iGX70,LX76,YX7#198810-199704

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iGX70,LX76,YX76198810-199008

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iGX70,LX76,YX7#198810-199704

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-20020iGX70,LX76,YX7#198810-199704

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-20020iGX70,LX76,YX7#198810-199704

9011906084

main90119-06084

28 parts on this diagram · 2 diagrams in section
