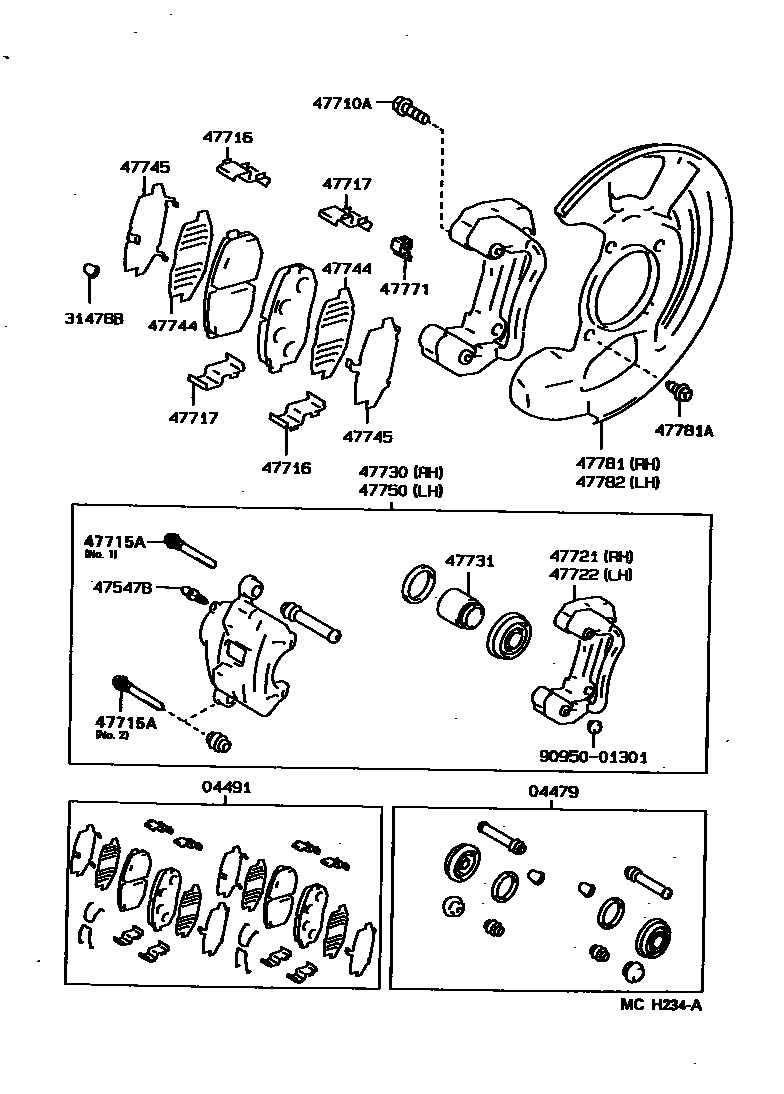

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-22010iGX70,LX76,YX7#198810-199412

main04479-22011iGX70,YX78199412-199704

04491PAD KIT, DISC BRAKE, FRONT

main04491-22162iGX70,LX76,YX76198810-199302

main04491-22380iGX70,LX76,YX78199302-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iGX70,LX76,YX7#198810-199704

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12040×2iGX70,LX76,YX7#198810-199704

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058×4iGX70,LX76,YX7#198810-199704

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22010×4iGX70,LX76,YX7#198810-199704

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-22010×4iGX70,LX76,YX7#198810-199704

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-22010×4iGX70,LX76,YX7#198810-199704

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22050iGX70,LX76,YX7#198810-199704

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22030iGX70,LX76,YX7#198810-199704

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22150iGX70,LX76,YX7#198810-199412

main47730-22151iGX70,YX78199412-199704

47731PISTON, FRONT DISC BRAKE

main47731-22010×2iGX70,LX76,YX7#198810-199704

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-22071×4iGX70,LX76,YX76198810-199302

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-22041×4iGX70,LX76,YX76198810-199302

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22150iGX70,LX76,YX7#198810-199412

main47750-22151iGX70,YX78199412-199704

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-22030×2iGX70,LX76,YX78199302-199704

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-24010iGX70,LX76,YX7#198810-199704

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08341×8iGX70,LX76,YX7#198810-199704

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-24010iGX70,LX76,YX7#198810-199704

9095001301

main90950-01301

20 parts on this diagram · 2 diagrams in section
