DISC WHEEL & WHEEL CAP

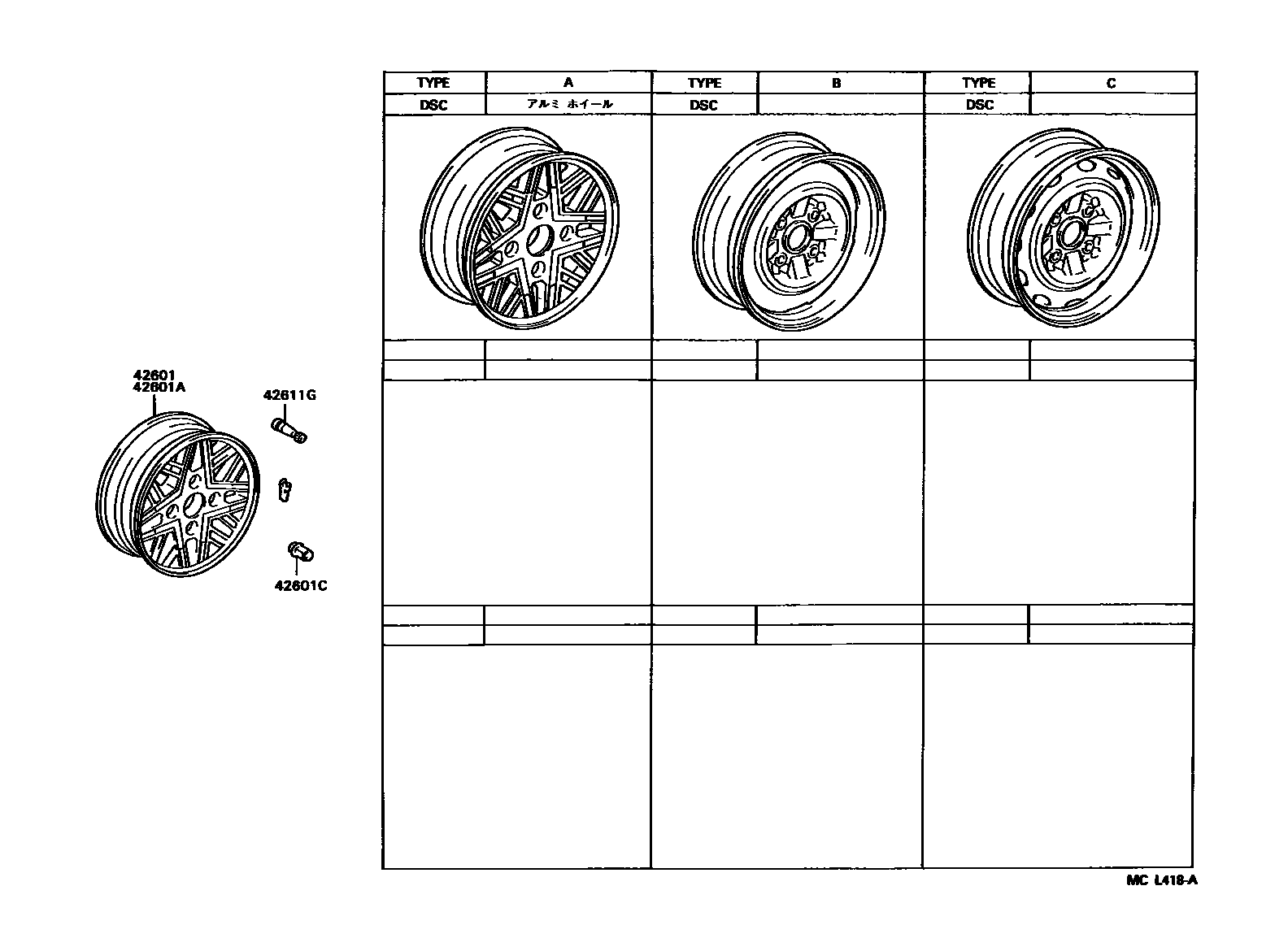

Parts diagram

42601WHEEL, DISC

main42611-12790×4i198810-199008

main42611-22211-03×4i199008-199704

main42611-22280×4i199008-199704

main42611-22330-03×4i198810-199008

main42611-22630-03×4i199008-199302

main42611-22640-03×4i199302-199704

42601AWHEEL, DISC (FOR SPARE)

main42611-12790i199509-199704

main42611-22211-03i198812-199008

main42611-22280i199008-199704

main42611-22330-03i198810-199008

main42611-22630-03i199302-199704

main42611-22640-03i199008-199302

42601CNUT, HUB (FOR AXLE)

main90942-01007×16i198810-199008

main90942-01021×16i198812-199704

main90942-01026×16i199509-199704

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5i198810-199704

4 parts on this diagram · 3 diagrams in section
