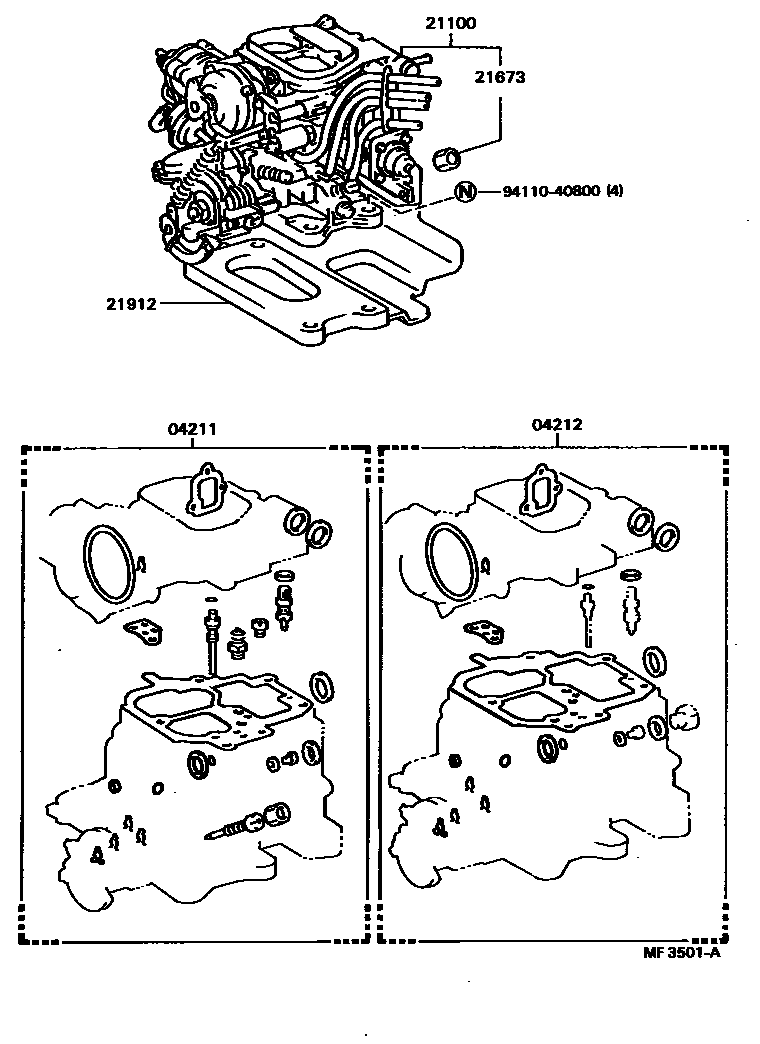

CARBURETOR ASSEMBLY

04211CARBURETOR KIT

main04211-72230i2YJ..YX76198812-198911

main04211-72280i2YJ..YX76..5F198911-199003

main04211-72281i2YJ..YX76199208-199302

04212GASKET KIT, CARBURETOR

main04212-72050i2YJ..YX76198812-198910

main04212-72060i2YJ..YX76199003-199208

main04212-73100i2YJ..YX76..3FC198911-199003

main04212-73101i2YJ..YX76199208-199302

21100CARBURETOR ASSY

main21100-72311i2YJ..YX76198812-198911

main21100-72360i2YJ..YX76..5F198911-199003

main21100-72361i2YJ..YX76199111-199302

21673CAP, IDLE LIMIT

main21673-13280i2YJ..YX76198812-199302

21912INSULATOR, CARBURETOR HEAT

main21912-72010i2YJ..YX76198812-198912

main21912-72011i2YJ..YX76198912-199302

9411040800

main94110-40800

6 parts on this diagram · 1 diagram in section
