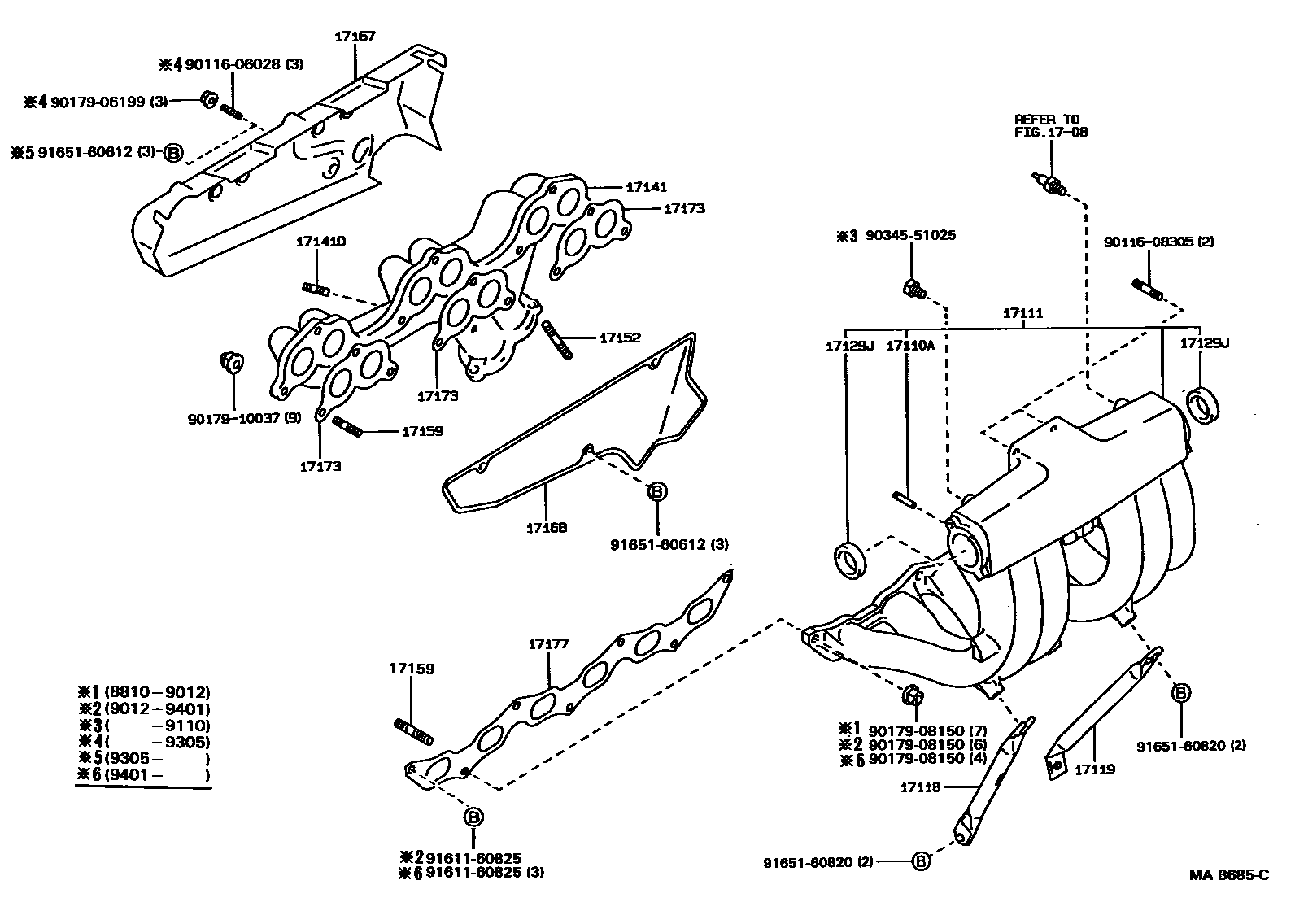

MANIFOLD

0001 1 0002 1 0003 1 0004 1

1708

17110AUNION, VACUUM HOSE

main90406-06002i1GFE..GX70198810-199704

17111MANIFOLD, INTAKE

main17101-54100i2L..LX76198812-198908

sub17101-54101

sub90339-05018

sub90445-11017

sub90917-11033

sub96132-30600

main17101-54101i2L..LX76198908-199409

main17101-70050i1GFE..GX70198810-199008

main17101-70070i1GFE..GX70199008-199108

main17101-70080i1GFE..GX70199108-199704

main17111-71010i2YJ..YX76198812-199302

main17111-73011i3YE..YX78199302-199704

17118STAY, MANIFOLD

main17118-70060i1GFE..GX70198810-199704

main17118-73010i3YE..YX78199302-199704

17119STAY, MANIFOLD, NO.2

main17139-70010i1GFE..GX70198810-199704

17129TANK, INTAKE AIR SURGE

main17109-73020i3YE..YX78199302-199704

17129JPLUG, TIGHT(FOR INTAKE AIR SURGE TANK)

main96411-34000i1GFE..GX70198810-199012

sub96411-44000

main96411-44000i1GFE..GX70199012-199704

17141MANIFOLD, EXHAUST

main17141-54090i2L..LX76198812-199409

main17141-70040i1GFE..GX70198810-199704

sub17141-88301

main17141-71020i2YJ..YX76198812-199302

main17141-72010i3YE..YX78199302-199704

main17141-88301i1GFE..GX70199110-199512

17141DBOLT, STUD(FOR OXYGEN SENSOR)

main90116-08128i1GFE..GX70198810-199704

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i2YJ..YX76198812-198909

main90116-10088i2L..LX76198812-199409

main90116-10146i1GFE..GX70198810-199704

main90116-10148i2YJ..YX76198909-199001

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08220i2L..LX76199008-199409

INTAKE SIDE

main90116-08220i2L..LX76198812-199008

INTAKE MANIFOLD

main90116-08281i1GFE..GX70198810-199704

INTAKE MANIFOLD

main90116-10063i1GFE..GX70198810-199704

EXHAUST MANIFOLD

main90116-10063i2YJ,3YE..YX7#198812-199704

main90116-10141i2L..LX76198812-199008

EXHAUST MANIFOLD

main90116-10141i2L..LX76199008-199409

EXHAUST SIDE

main92132-60820i2L..LX76199204-199301

INTAKE SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-54070i2L..LX76198812-199409

main17167-70040i1GFE..GX70199210-199704

main17167-71020i2YJ..YX76198812-199302

main17167-73011i3YE..YX78199302-199704

main17167-88300i1GFE..GX70198810-199210

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main12521-72010i3YE..YX78199302-199704

main17168-70020i1GFE..GX70199210-199704

main17168-88300i1GFE..GX70198810-199210

sub17168-70020

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-54030i2L..LX76198812-199409

main17173-70020i1GFE..GX70198810-199704

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-54020i2L..LX76198812-199409

sub17177-54021

main17177-70040i1GFE..GX70198810-199704

9011606028

main90116-06028

9011608305

main90116-08305

9017906199

main90179-06199

9017908150

main90179-08150

9017910037

main90179-10037

9034551025

main90345-51025

9161160825

main91611-60825

9165160612

main91651-60612

9165160820

main91651-60820

24 parts on this diagram · 4 diagrams in section
