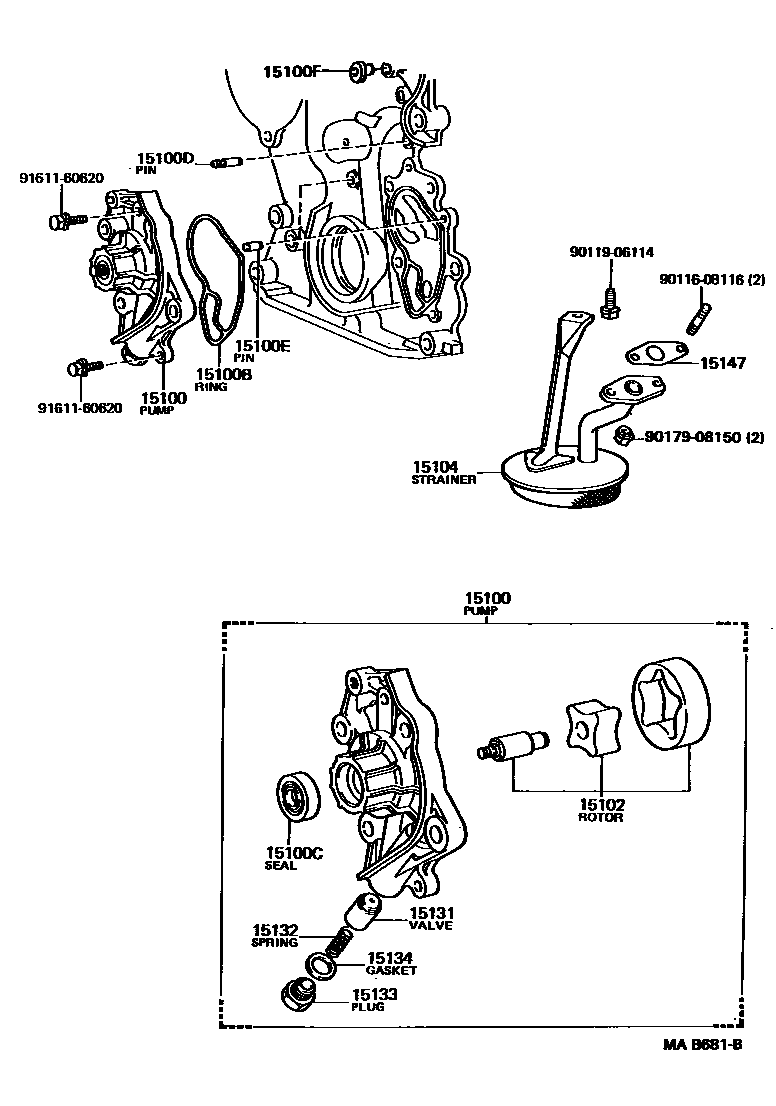

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15100PUMP ASSY, OIL

main15100-70030i1GFE..GX70198810-199704

main15100-71010i2YJ,3YE..YX7#198812-199704

15100BRING, O(FOR OIL PUMP)

main15188-70010i1GFE..GX70198810-199704

15100CSEAL(FOR OIL PUMP)

main90029-21005i1GFE..GX70198810-199704

15100DPIN(FOR OIL PUMP SET)

main15182-70010i1GFE..GX70198810-199704

15100EPIN, STRAIGHT (FOR OIL PUMP SET)

main15181-70010×2i1GFE..GX70198810-199704

15100FBUSH (FOR OIL PUMP)

main90029-38300i1GFE..GX70198810-199008

main90029-38302i1GFE..GX70199008-199704

15102ROTOR SET, OIL PUMP

main15102-70011i1GFE..GX70198810-199704

main15102-71010i2YJ,3YE..YX7#198812-199704

15104STRAINER SUB-ASSY, OIL

main15104-54120i2L..LX76198812-199409

main15104-70040i1GFE..GX70198810-199704

15131VALVE, OIL PUMP RELIEF

main15131-24010i1GFE..GX70; 2YJ,3YE..YX7#198810-199704

main15131-54010i2L..LX76198812-199409

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i1GFE..GX70; 2YJ,3YE..YX7#198810-199704

main15132-54010i2L..LX76198812-199409

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1GFE..GX70198810-199704

main15133-24010i2YJ,3YE..YX7#198812-199704

main15133-54010i2L..LX76198812-199409

15134GASKET, OIL PUMP RELIEF VALVE

main15134-70030i1GFE..GX70198810-199704

15147GASKET, OIL STRAINER

main15147-70021i1GFE..GX70198810-199704

9011608116

main90116-08116

9011906114

main90119-06114

9017908150

main90179-08150

9161160620

main91611-60620

17 parts on this diagram · 3 diagrams in section
