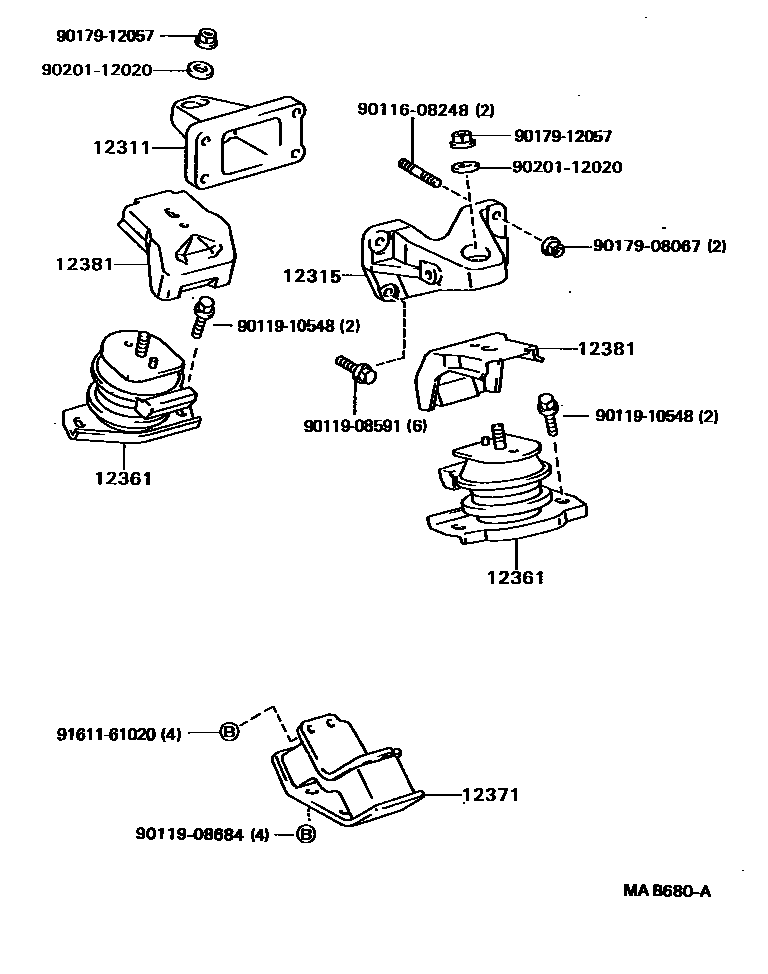

MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-54130i2L..LX76198812-199008

main12311-54190i2L..LX76199008-199409

main12311-70090i1GFE..GX70198810-199704

main12311-71010i2YJ,3YE..YX7#198812-199704

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-70060i1GFE..GX70198810-199704

main12315-71010i2YJ,3YE..YX7#198812-199704

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-54152×2i2L..LX76198812-198903

main12361-54153×2i2L..LX76198903-199409

main12361-70120×2i1GFE..GX70198810-198907

main12361-70170×2i1GFE..GX70198907-198908

main12361-70180×2i1GFE..GX70198908-199704

main12361-71020×2i2YJ,3YE..YX7#198812-199601

main12361-73050×2i3YE..YX78199601-199704

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020i1GFE..GX70198810-199704

main12371-34030i2L..LX76; 2YJ,3YE..YX7#198812-199704

12381STABILIZER, ENGINE MOUNTING

main12381-70010×2i1GFE..GX70198810-199704

main12381-71030×2i2YJ,3YE..YX7#198812-199704

9011608248

main90116-08248

9011908591

main90119-08591

9011908684

main90119-08684

9011910548

main90119-10548

9017908067

main90179-08067

9017912057

main90179-12057

9020112020

main90201-12020

9161161020

main91611-61020

13 parts on this diagram · 3 diagrams in section
