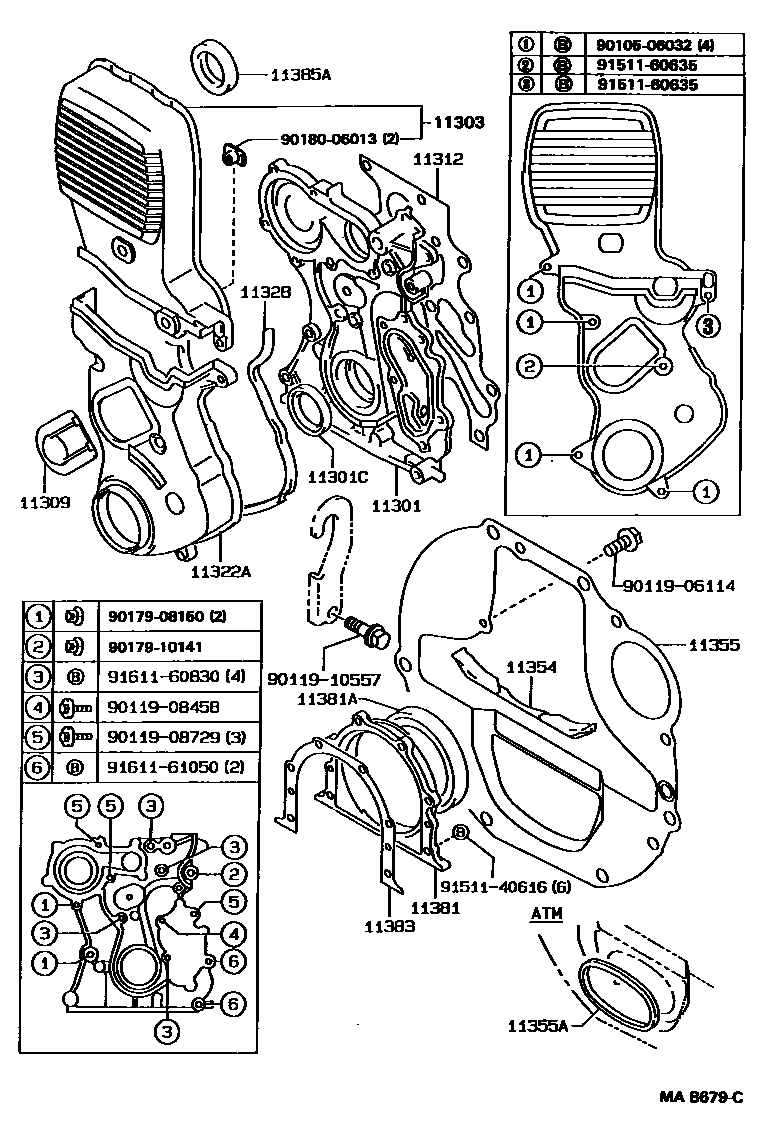

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-71010i2YJ,3YE..YX7#198812-199704

main11311-54050i2L..LX76198812-199108

sub11311-54051

main11311-54051i2L..LX76199108-199409

sub11311-54052

sub15115-54022

main11311-70040i1GFE..GX70198810-199010

sub11311-79035

main11311-79035i1GFE..GX70199010-199704

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42012i2L..LX76198812-199102

main90311-42026i2L..LX76199102-199401

main90311-42030i2L..LX76199401-199409

sub90311-42031

main90311-45003i1GFE..GX70198810-199704

sub90311-45015

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-70020i1GFE..GX70198810-199704

11309COVER SUB-ASSY, TIMING BELT, NO.4

main11325-88300i1GFE..GX70198810-199704

11312GASKET, FRONT END PLATE

main11312-54021i2L..LX76198812-199409

main11312-70013i1GFE..GX70198810-199009

sub11312-70014

main11312-70014i1GFE..GX70199009-199704

sub11312-70020

11322ACOVER, TIMING BELT, NO.1

main11302-70040i1GFE..GX70198810-199704

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-54020i2L..LX76198812-198904

sub11328-54021

main11328-54021i2L..LX76198904-199409

main11328-70030i1GFE..GX70198810-199704

main11328-71011i2YJ..YX76198812-198912

sub11328-71012

main11328-71012i2YJ,3YE..YX7#198912-199704

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010i2L..LX76198812-199409

main11354-70010i1GFE..GX70198810-199704

main11354-71010i2YJ,3YE..YX7#198812-199704

11355PLATE, REAR END

main11355-54030i2L..LX76198812-199409

main11355-70010i1GFE..GX70..5F198810-199704

main11355-70020i1GFE..GX70..4FC198810-199704

main11355-71010i2YJ,3YE..YX7#..5F198812-199704

main11355-71021i2YJ,3YE..YX7#..3FC198812-199704

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01160i2YJ,3YE..YX7#..3FC198812-199704

main90950-01307i1GFE..GX70..4FC198810-199704

11381RETAINER, ENGINE REAR OIL SEAL

main11381-54020i2L..LX76198812-199409

sub11381-54030

sub90116-08404

main11381-70010i1GFE..GX70198810-199704

main11381-71010i2YJ,3YE..YX7#198812-199704

11381ASEAL, ENGINE REAR OIL

main90311-75004i1GFE..GX70198810-198908

sub90311-75006

main90311-75007i1GFE..GX70198908-199704

main90311-80003i2YJ..YX76198812-199004

sub90311-80009

main90311-80009i2YJ,3YE..YX7#199004-199704

sub90311-80014

main90311-85004i2L..LX76198812-199102

sub90311-85006

main90311-85006i2L..LX76199102-199209

sub90311-85009

main90311-85007i2L..LX76199209-199409

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i2YJ..YX76198812-198912

main11383-54020i2L..LX76198812-199107

sub11383-54030

main11383-54030i2L..LX76199107-199409

main11383-70010i1GFE..GX70198810-199009

sub11383-70011

main11383-70011i1GFE..GX70199009-199704

main11383-71010i2YJ,3YE..YX7#198912-199704

11385RETAINER, CAMSHAFT OIL SEAL

main11382-54020i2L..LX76198812-199409

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-35008i1GFE..GX70198810-199003

sub90311-35022

main90311-35013i1GFE..GX70199003-199704

sub90311-35022

main90311-35022i1GFE..GX70199003-199704

sub90311-35040

9010506032

main90105-06032

9011906114

main90119-06114

9011908458

main90119-08458

9011908729

main90119-08729

9011910557

main90119-10557

9017908150

main90179-08150

9017910141

main90179-10141

9018006013

main90180-06013

9151140616

main91511-40616

9151160635

main91511-60635

9161160830

main91611-60830

9161161050

main91611-61050

27 parts on this diagram · 3 diagrams in section
