ENGINE OVERHAUL GASKET KIT

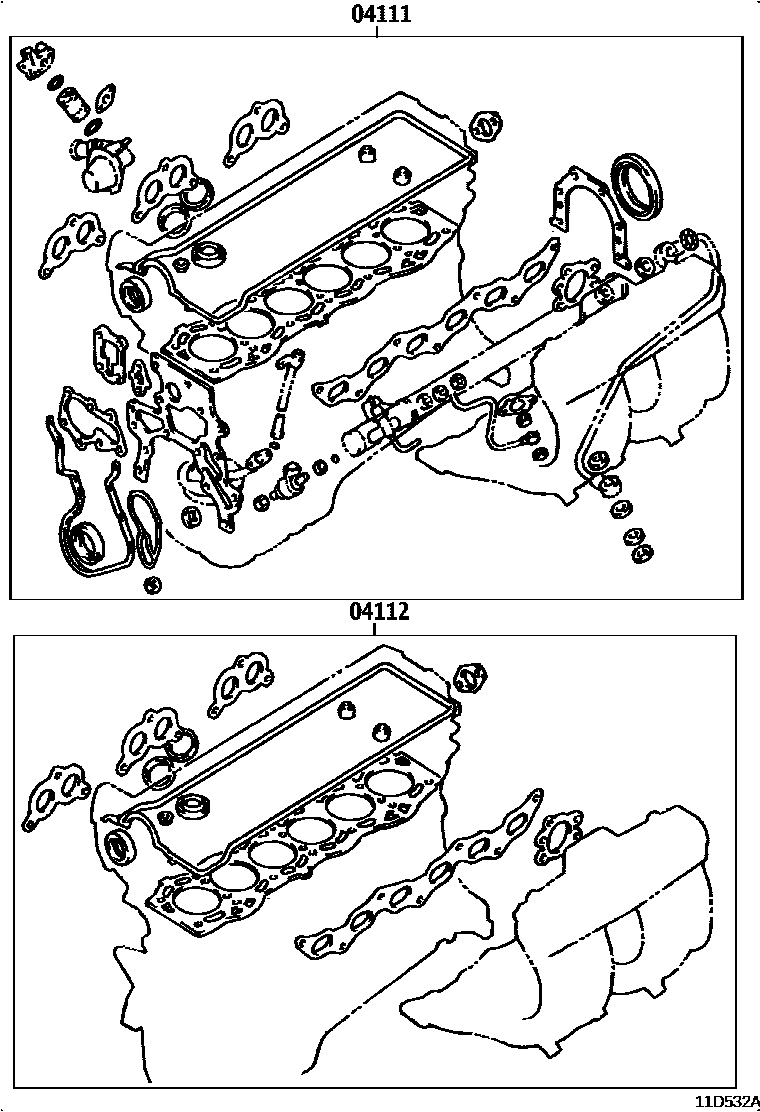

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-54080i198812-198904

main04111-54081i198904-198908

main04111-54082i198908-199108

main04111-54083i199108-199409

main04111-70060i198810-199007

main04111-70061i199007-199311

main04111-70062i199311-199704

main04111-72013i198812-198912

main04111-72014i198912-199106

main04111-72015i199106-199302

main04111-73018i199302-199308

main04111-73019i199308-199704

04112GASKET KIT, ENGINE VALVE GRIND

main04112-54070i198812-199108

main04112-54071i199108-199409

main04112-70060i198810-199007

main04112-70061i199007-199704

main04112-72013i198812-199001

main04112-72014i199001-199106

main04112-72015i199106-199302

main04112-73017i199302-199308

main04112-73018i199308-199704

2 parts on this diagram · 4 diagrams in section
