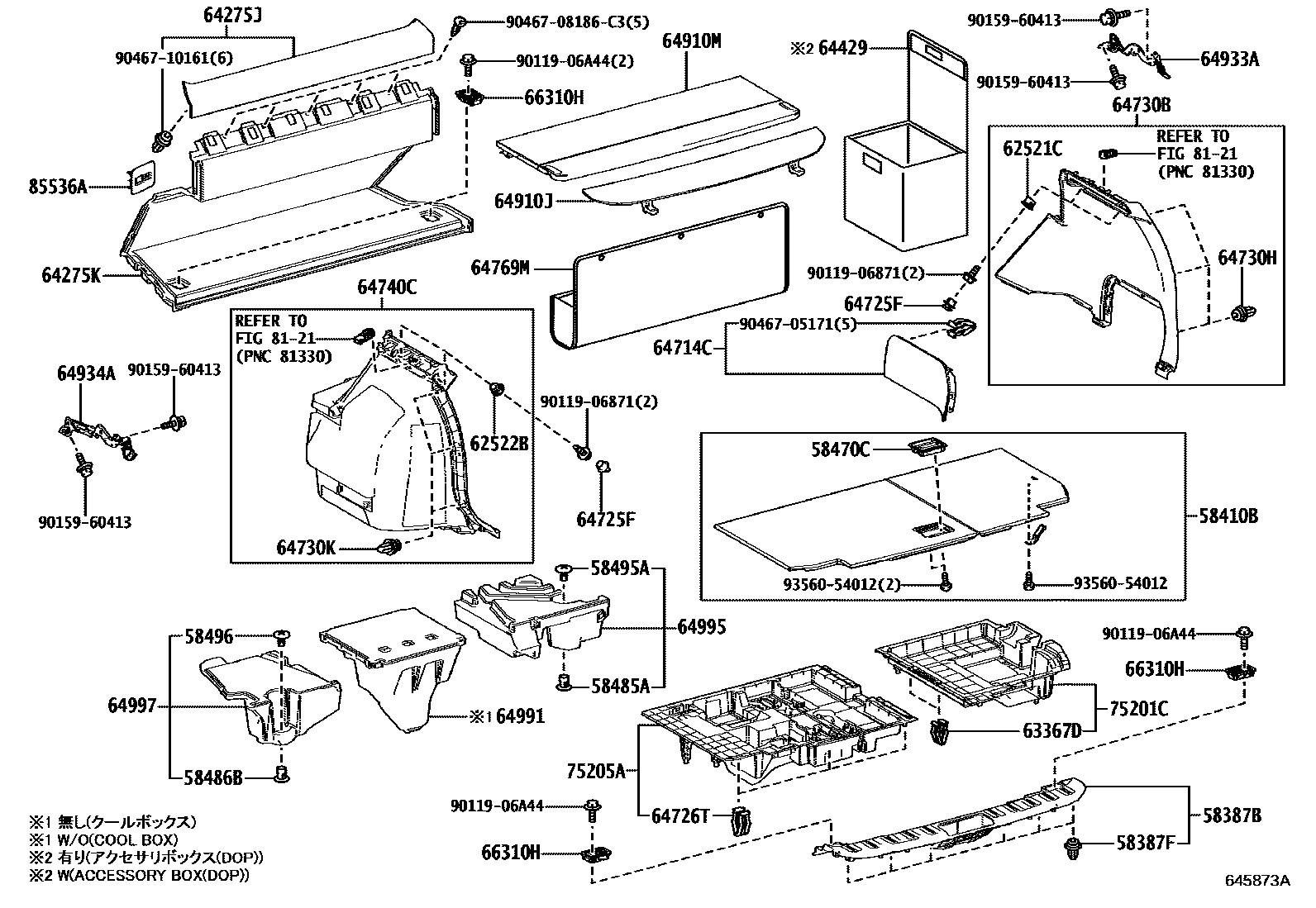

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
BLACK,TRIM0#,2#,4#
58387FCLIP, REAR FLOOR FINISH PLATE
58410BBOARD ASSY, DECK
NLACK,TRIM0#,2#,4#
58470CHANDLE ASSY, DECK BOARD
BLACK,TRIM0#,2#,4#
58485APLATE, REAR FLOOR BOARD, UPPER NO.1
58486BPLATE, REAR FLOOR BOARD, UPPER NO.2
58495APLATE, REAR FLOOR BOARD, UPPER NO.3
58496PLATE, REAR FLOOR BOARD, UPR NO.4
62521CCOVER, QUARTER TRIM RH
BLACK,TRIM0#,2#,4#
62522BCOVER, QUARTER TRIM LH
BLACK,TRIM0#,2#,4#
63367DCLIP(FOR DECK FLOOR BOX)
64275JCOVER, ROOM PARTITION, NO.1
BLACK,TRIM0#,2#,4#
64275KCOVER, ROOM PARTITION, NO.2
BLACK,TRIM0#,2#,4#
64429TRAY, LUGGAGE COMPARTMENT SIDE
main64490-40050
64714CCOVER, DECK SIDE TRIM, RH
BLACK,TRIM0#,2#,4#
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,2#,4#
64726TCLIP, DECK FLOOR BOX
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM0#,2#,4#
64730HCLIP(FOR DECK TRIM SIDE PANEL)
64730KCLIP(FOR DECK SIDE TRIM PANEL)
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM0#,2#,4#
64769MCASE, TOOL BAG
64910JCOVER ASSY, TONNEAU
BLACK,TRIM0#,2#,4#
64910MCOVER ASSY, TONNEAU
BLACK,TRIM0#,2#,4#
64933ABRACKET, TONNEAU COVER HOLDER, RH
64934ABRACKET, TONNEAU COVER HOLDER, LH
64991BOX, DECK FLOOR, FRONT
64995BOX, DECK FLOOR, RH
64997BOX, DECK FLOOR, LH
66310HHOOK ASSY, ROPE
75201CBOX SUB-ASSY, TOOL, NO.1
75205ABOX SUB-ASSY, TOOL, NO.2
8121
85536ABEZEL, POWER OUTLET SOCKET
BLACK,TRIM0#,2#,4#
9011906871
main90119-06871
9011906A44
main90119-06A44
9015960413
main90159-60413
9046705171
main90467-05171
9046708186C3
main90467-08186C3
9046710161
main90467-10161
9356054012
main93560-54012
41 parts on this diagram · 1 diagram in section
