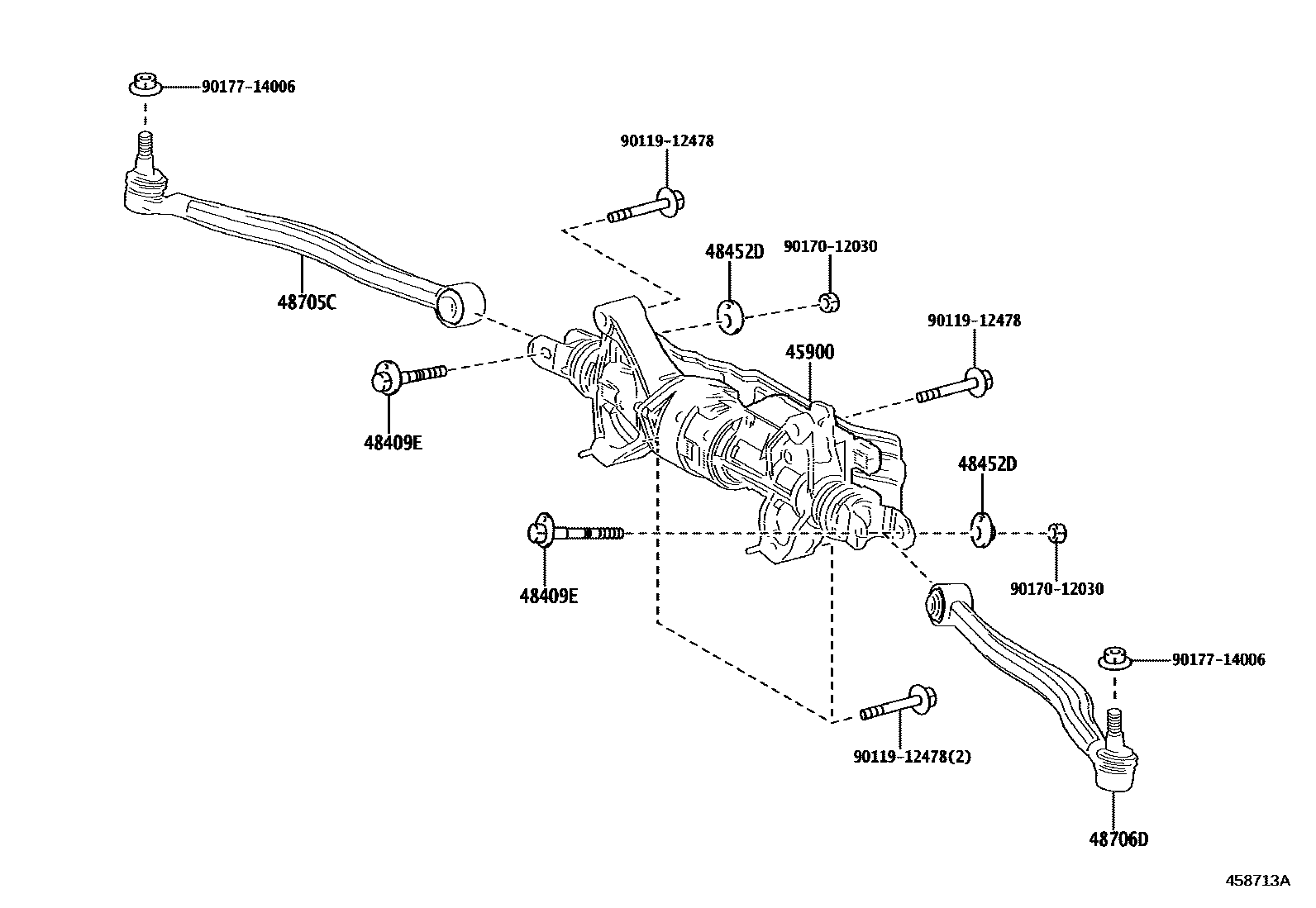

REAR STEERING GEAR (4WS)

45900LINK ASSY, REAR STEERING

main45900-48020iGRG75202310

48409ECAM SUB-ASSY, TOE ADJUST

main48409-48040iGRG75202310

48452DPLATE, TOE ADJUST

main48452-50040iGRG75202310

48705CLINK SUB-ASSY SET, TOE CONTROL, RH

main48705-48020iGRG75202310

48706DLINK SUB-ASSY SET, TOE CONTROL, LH

main48706-48020iGRG75202310

9011912478

main90119-12478

9017012030

main90170-12030

9017714006

main90177-14006

8 parts on this diagram · 1 diagram in section
