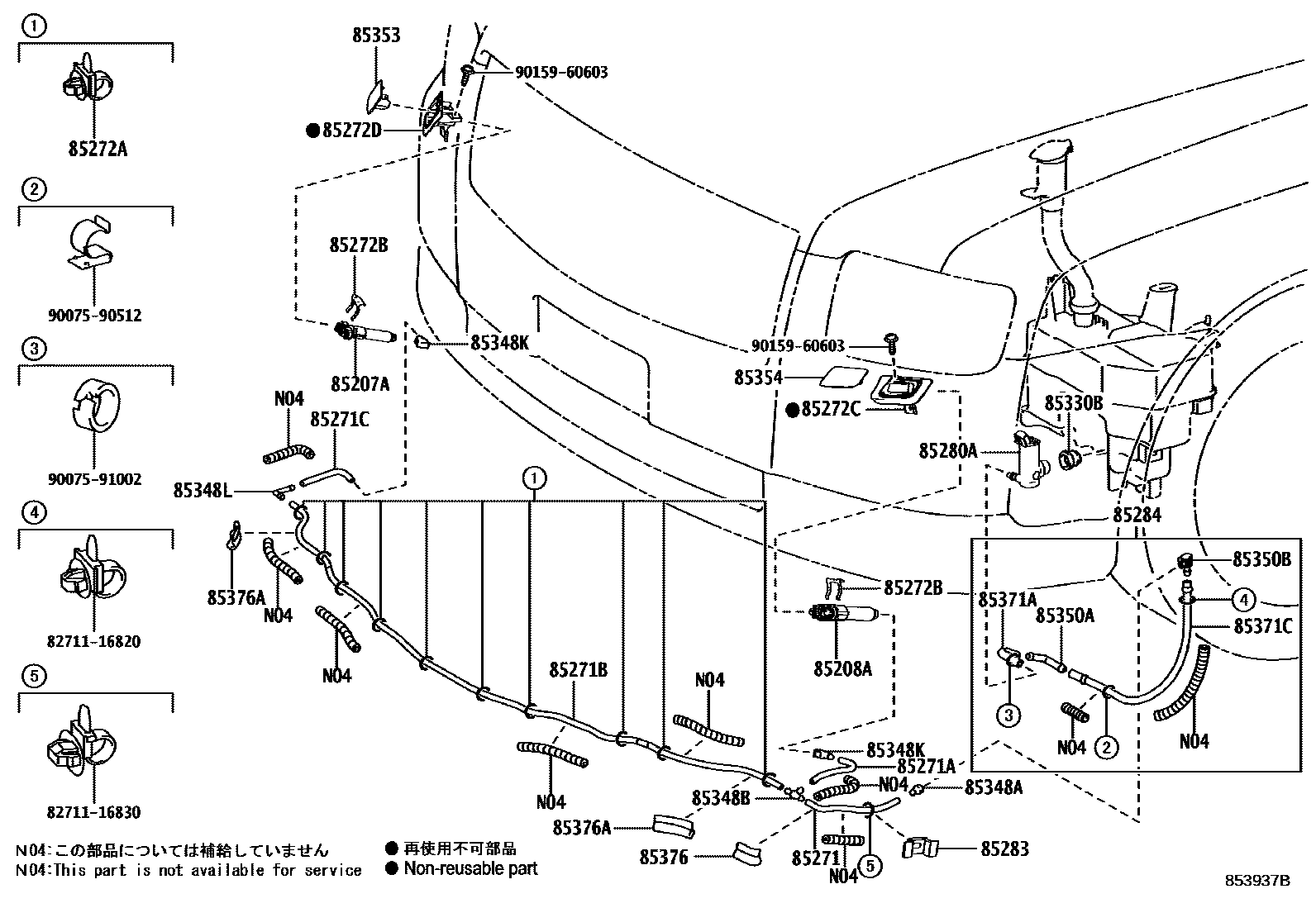

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
85271CHOSE, HEADLAMP CLEANER, NO.4
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85272CCLAMP, HEADLAMP CLEANER, NO.3
85272DCLAMP, HEADLAMP CLEANER, NO.4
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85283BRACKET, HEADLAMP CLEANER WASHER
85284HOSE ASSY, HEADLAMP CLEANER WASHER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
85350BJOINT, HEADLAMP CLEANER ELBOW, NO.4
85353COVER, HEADLAMP WASHER, RH
SILVER ME.,1C0
ETERNAL BLACK,225
BLACKISH RED MC.,3P6
BLUE MC.,8J9
85354COVER, HEADLAMP WASHER, LH
SILVER ME.,1C0
ETERNAL BLACK,225
BLACKISH RED MC.,3P6
BLUE MC.,8J9
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85371CHOSE, HEADLAMP CLEANER, NO.1
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
85376APROTECTOR, HEADLAMP CLEANER HOSE, NO.2
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
9007590512
main90075-90512
9007591002
main90075-91002
9015960603
main90159-60603
31 parts on this diagram · 1 diagram in section
