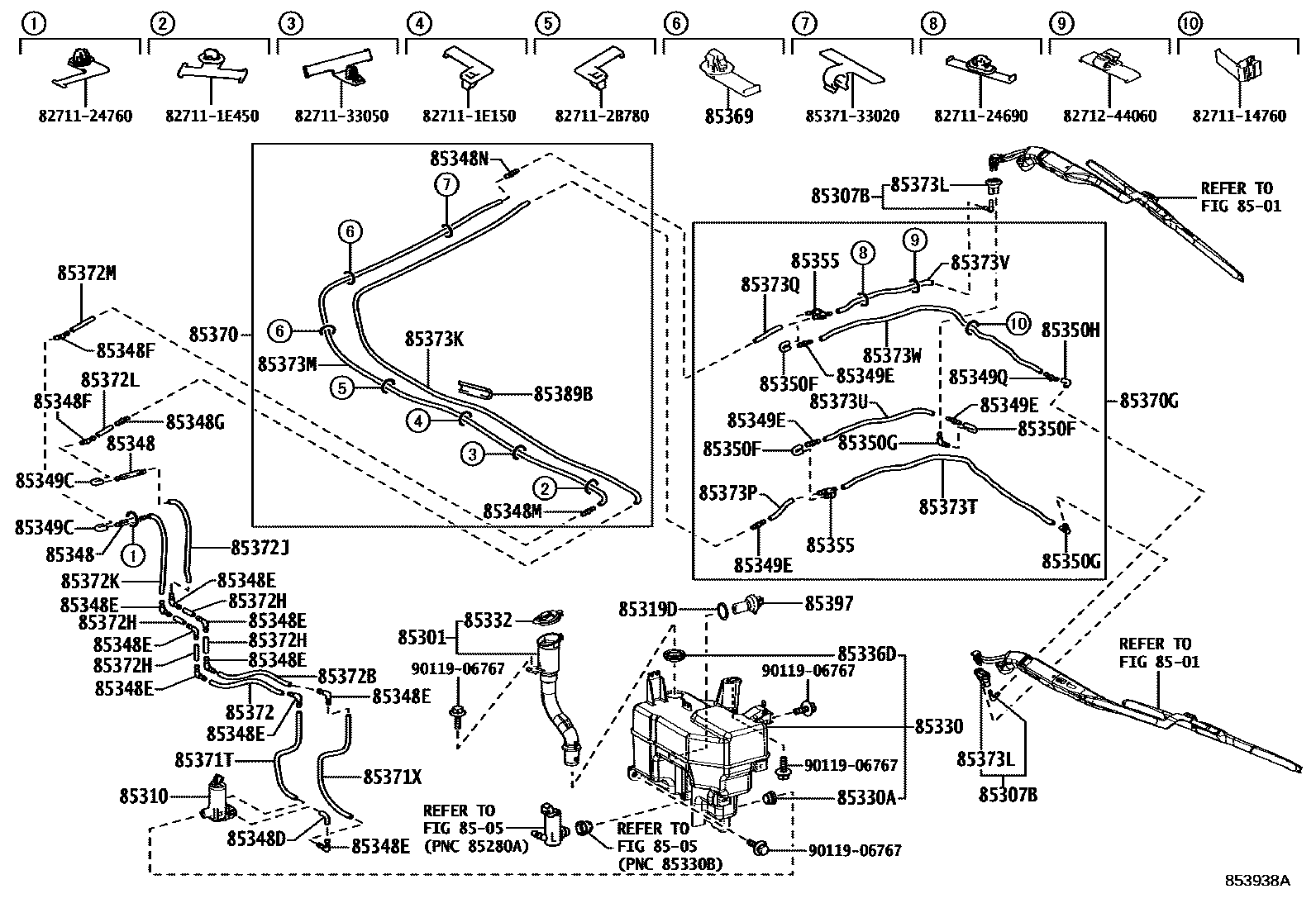

WINDSHIELD WASHER

8501WINDSHIELD WIPER

→ Go to FIG 85-01

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-40020i201806

85307BGROMMET SUB-ASSY, WASHER, NO.2

main85307-40010×2i201806

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-11040i201806

85319DPACKING, FRONT WASHER

main85319-33230i201806

85330JAR ASSY, WINDSHIELD WASHER

main85355-40010i201806

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i201806

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i201806

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i201806

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85385-48320×2i201806

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481i201806

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200×9i201806

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85375-14560×2i201806

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260i201806

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-10260i201806

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-10260i201806

85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4

main85375-33040×2i201806

85349EJOINT, WINDSHIELD WASHER HOSE, NO.5

main85375-10260×4i201806

85349QJOINT, WINDSHIELD WASHER HOSE, NO.6

main85375-14560i201806

85350FJOINT, WINDSHIELD WASHER ELBOW, NO.5

main85375-33040×3i201806

85350GJOINT, WINDSHIELD WASHER ELBOW, NO.6

main85355-20200×2i201806

85350HJOINT, WINDSHIELD WASHER ELBOW, NO.7

main85355-14481i201806

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020×2i201806

85369CLAMP

main82711-2C280×2i201806

85370HOSE ASSY, WINDSHIELD WASHER

main85370-40040i201806

85370GHOSE ASSY, WINDSHIELD WASHER, NO.2

main85370-40050i201806

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main90099-33080i201806

85371XHOSE, WINDSHIELD WASHER(FROM JOINT TO TOINT)

main90099-33080i201806

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i201806

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i201806

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080×4i201806

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i201806

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080i201806

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90099-33080i201806

85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7

main90099-33080i201806

85373KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.9

main90099-33803i201806

85373LGROMMET, WASHER

main85373-11020×2i201806

85373MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.10

main90099-33803i201806

85373PHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.12

main90099-33080i201806

85373QHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.13

main90099-33080i201806

85373THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.14

main90099-33080i201806

85373UHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.15

main90099-33080i201806

85373VHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.16

main90099-33080i201806

85373WHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.17

main90099-33080i201806

85389BPROTECTOR, WINDSHIELD WASHER

main85389-12880i201806

85397SWITCH ASSY,LEVEL WARNING

main85397-52100i201806

8271114760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14760

827111E150WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E150

827111E450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E450

8271124690WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24690

8271124760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24760

827112B780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B780

8271133050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33050

8271244060CLAMP, WIRING HARNESS

main82712-44060

8537133020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33020

9011906767

main90119-06767

57 parts on this diagram · 1 diagram in section
