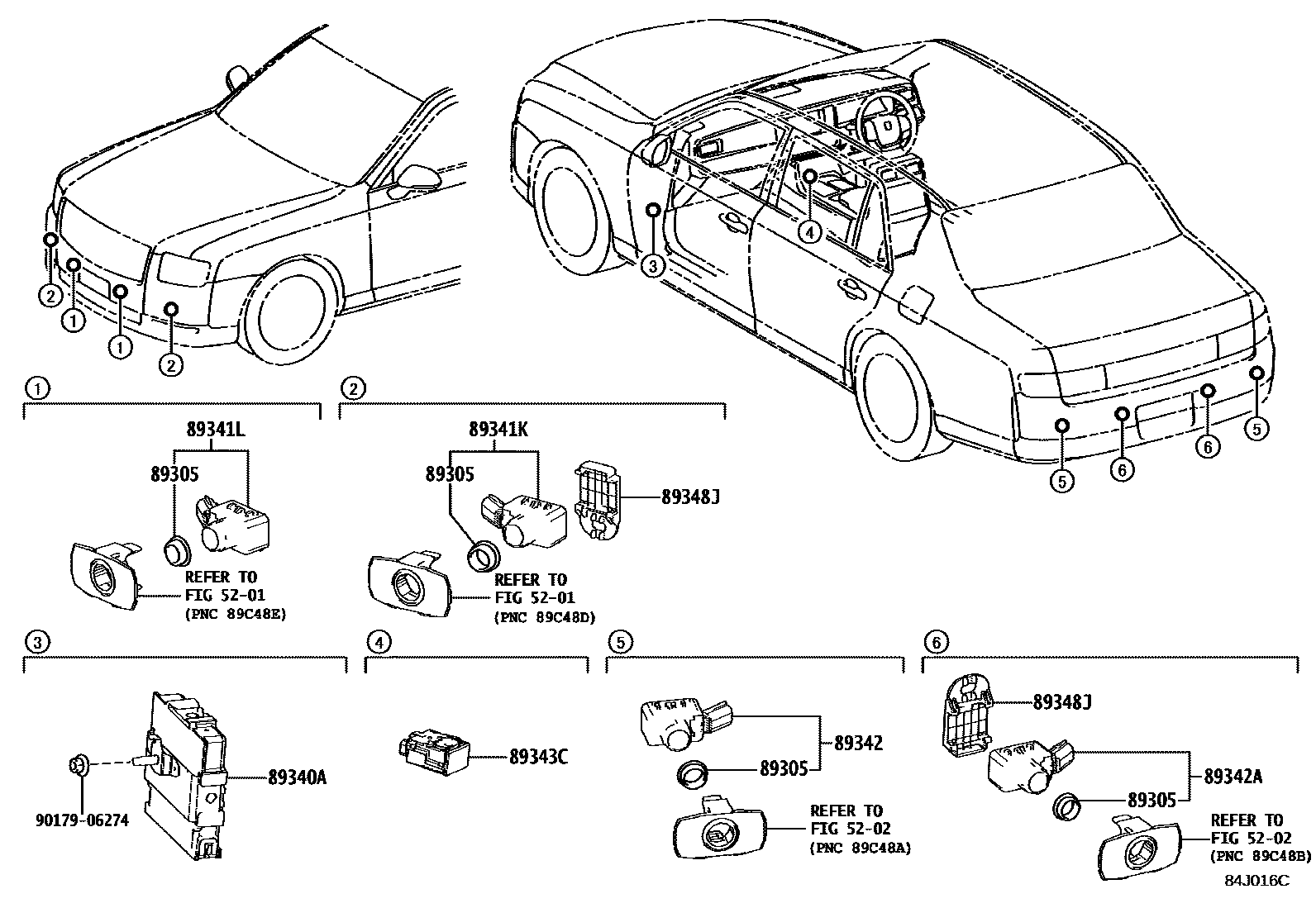

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89305CUSHION SET, ULTRASONIC SENSOR

main89305-47010iUWG60201806

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-40010iUWG60201806

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-33220-27×2iUWG60201806

ETERNAL BLACK,225

main89341-33220-D6×2iUWG60201806

BLACKISH RED MC.,3P6

main89341-33220-J7×2iUWG60201806

BLUE MC.,8J9

main89341-33220-P0×2iUWG60201806

SILVER ME.,1C0

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-33220-27×2iUWG60201806

ETERNAL BLACK,225

main89341-33220-D6×2iUWG60201806

BLACKISH RED MC.,3P6

main89341-33220-J7×2iUWG60201806

BLUE MC.,8J9

main89341-33220-P0×2iUWG60201806

SILVER ME.,1C0

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-33220-27×2iUWG60201806

ETERNAL BLACK,225

main89341-33220-D6×2iUWG60201806

BLACKISH RED MC.,3P6

main89341-33220-J7×2iUWG60201806

BLUE MC.,8J9

main89341-33220-P0×2iUWG60201806

SILVER ME.,1C0

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-33220-27×2iUWG60201806

ETERNAL BLACK,225

main89341-33220-D6×2iUWG60201806

BLACKISH RED MC.,3P6

main89341-33220-J7×2iUWG60201806

BLUE MC.,8J9

main89341-33220-P0×2iUWG60201806

SILVER ME.,1C0

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iUWG60201806

89348JCLIP, ULTRASONIC SENSOR

main89348-58130×4iUWG60201806

9017906274

main90179-06274

11 parts on this diagram · 1 diagram in section
