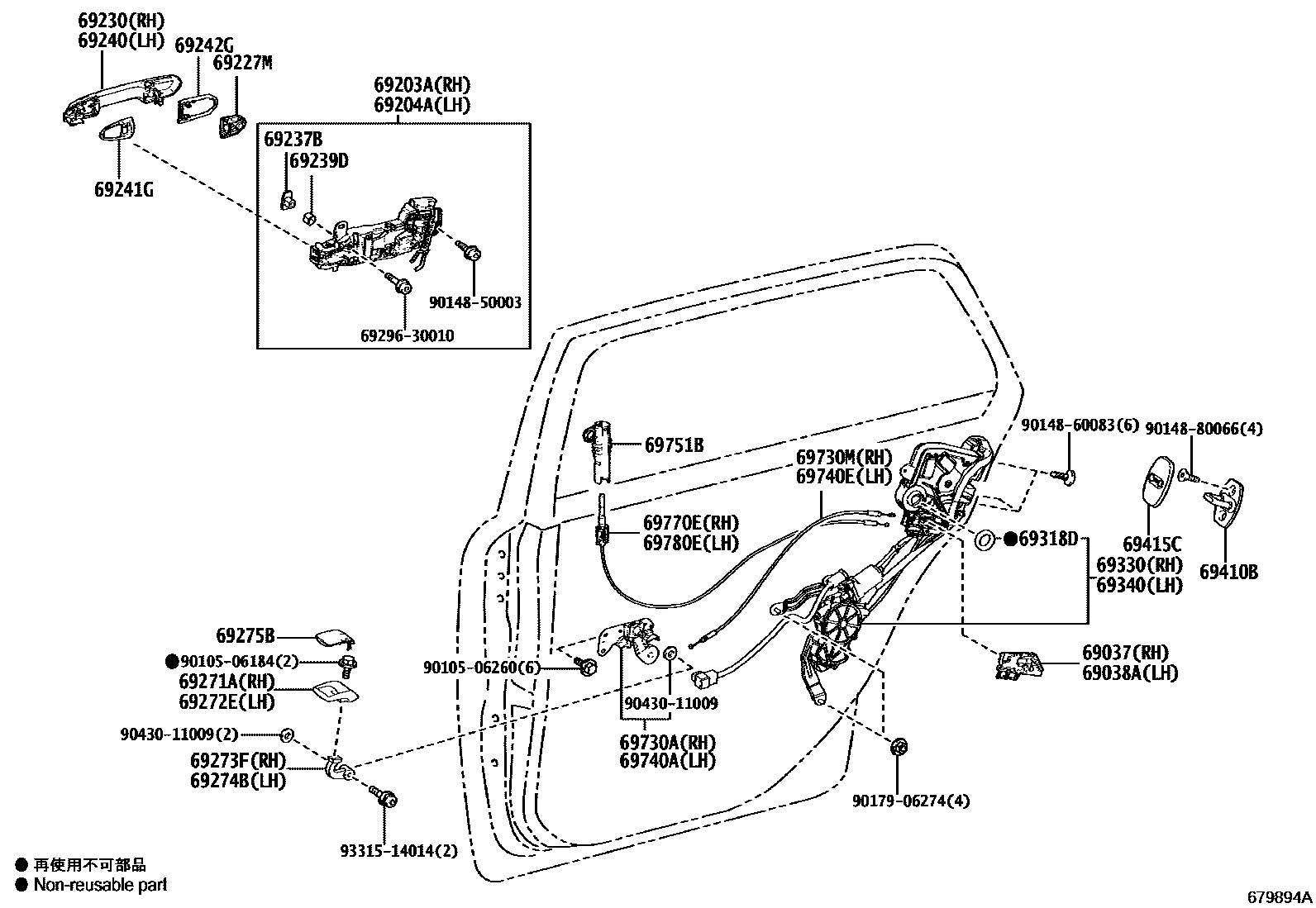

REAR DOOR LOCK & HANDLE
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69227MCOVER, REAR DOOR OUTSIDE HANDLE
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
sub69210-30391
sub69210-30391
sub69210-30391
sub69210-30391
SILVER ME.,1C0
ETERNAL BLACK,225
BLACKISH RED MC.,3P6
BLUE MC.,8J9
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
sub69210-30391
sub69210-30391
sub69210-30391
sub69210-30391
SILVER ME.,1C0
ETERNAL BLACK,225
BLACKISH RED MC.,3P6
BLUE MC.,8J9
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69271AHANDLE, REAR DOOR INSIDE, RH
69272EHANDLE, REAR DOOR INSIDE, LH
69273FBASE, REAR DOOR INSIDE HANDLE, RH
69274BBASE, REAR DOOR INSIDE HANDLE, LH
69275BGARNISH, REAR DOOR INSIDE HANDLE
LIGHT BROWN,TRIM1#,4#
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69730ALINK ASSY, REAR DOOR LOCK CONTROL, RH
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ALINK ASSY, REAR DOOR LOCK CONTROL, LH
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9010506184
main90105-06184
9010506260
main90105-06260
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9017906274
main90179-06274
9043011009
main90430-11009
9331514014
main93315-14014
37 parts on this diagram · 1 diagram in section
