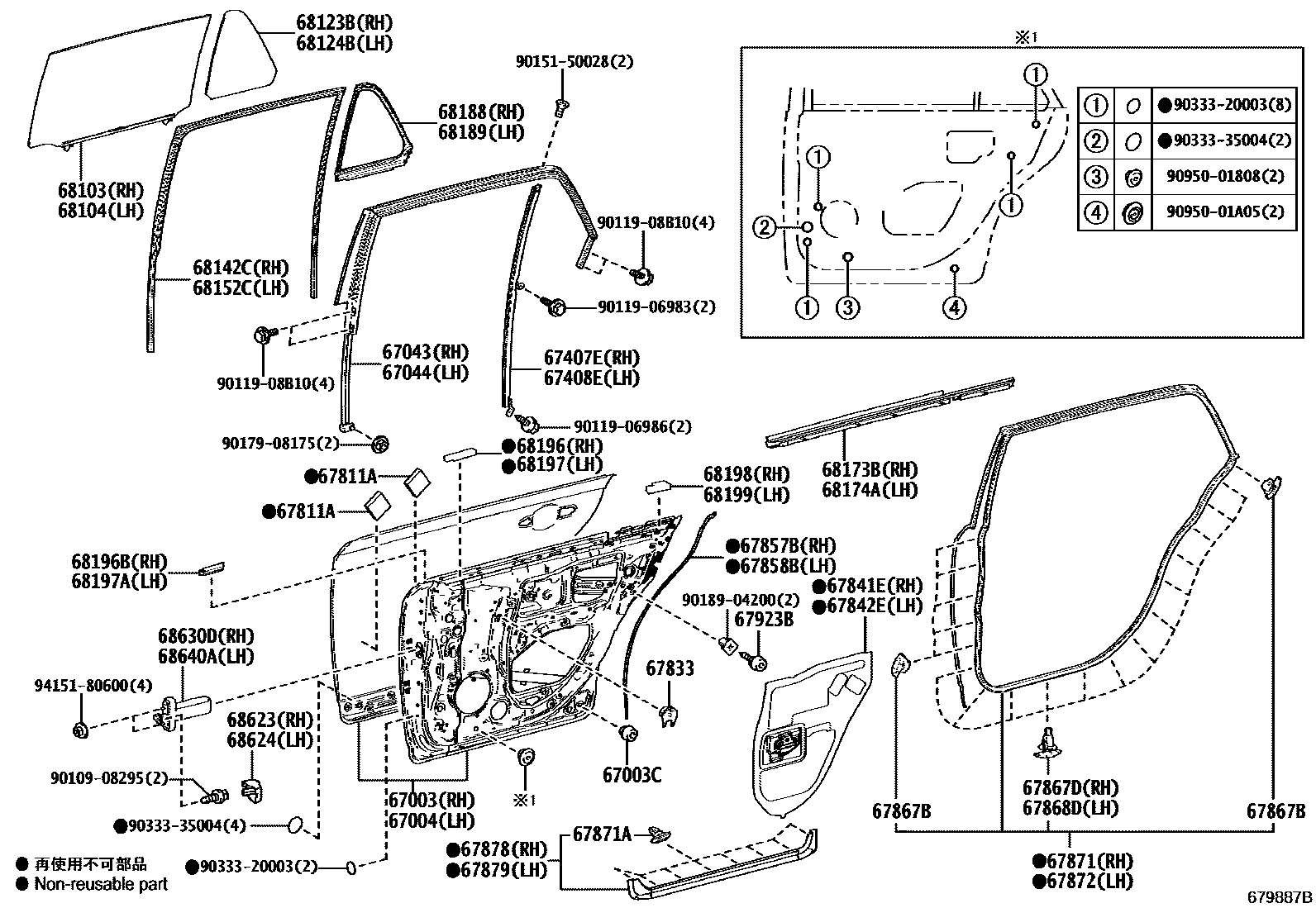

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67043FRAME SUB-ASSY, REAR DOOR WINDOW, RH
67044FRAME SUB-ASSY, REAR DOOR WINDOW, LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67811APAD, REAR DOOR SILENCER
67833COVER, REAR DOOR SERVICE HOLE
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67878WEATHERSTRIP, REAR DOOR, LOWER RH
67879WEATHERSTRIP, REAR DOOR, LOWER LH
67923BCUSHION, REAR DOOR STIFFENER, NO.1
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH
68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68196SEAL, REAR DOOR BELT, RH
68196BSEAL, REAR DOOR BELT, FRONT RH
68197SEAL, REAR DOOR BELT, LH
68197ASEAL, REAR DOOR BELT, FRONT LH
68198SEAL, REAR DOOR BELT, REAR RH
68199SEAL, REAR DOOR BELT, REAR LH
68623COVER, DOOR CHECK, RH
68624COVER, DOOR CHECK, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
9010908295
main90109-08295
9011906983
main90119-06983
9011906986
main90119-06986
9011908B10
main90119-08B10
9015150028
main90151-50028
9017908175
main90179-08175
9018904200
main90189-04200
9033320003
main90333-20003
9033335004
main90333-35004
9095001808
main90950-01808
9095001A05
main90950-01A05
9415180600
main94151-80600
54 parts on this diagram · 3 diagrams in section
