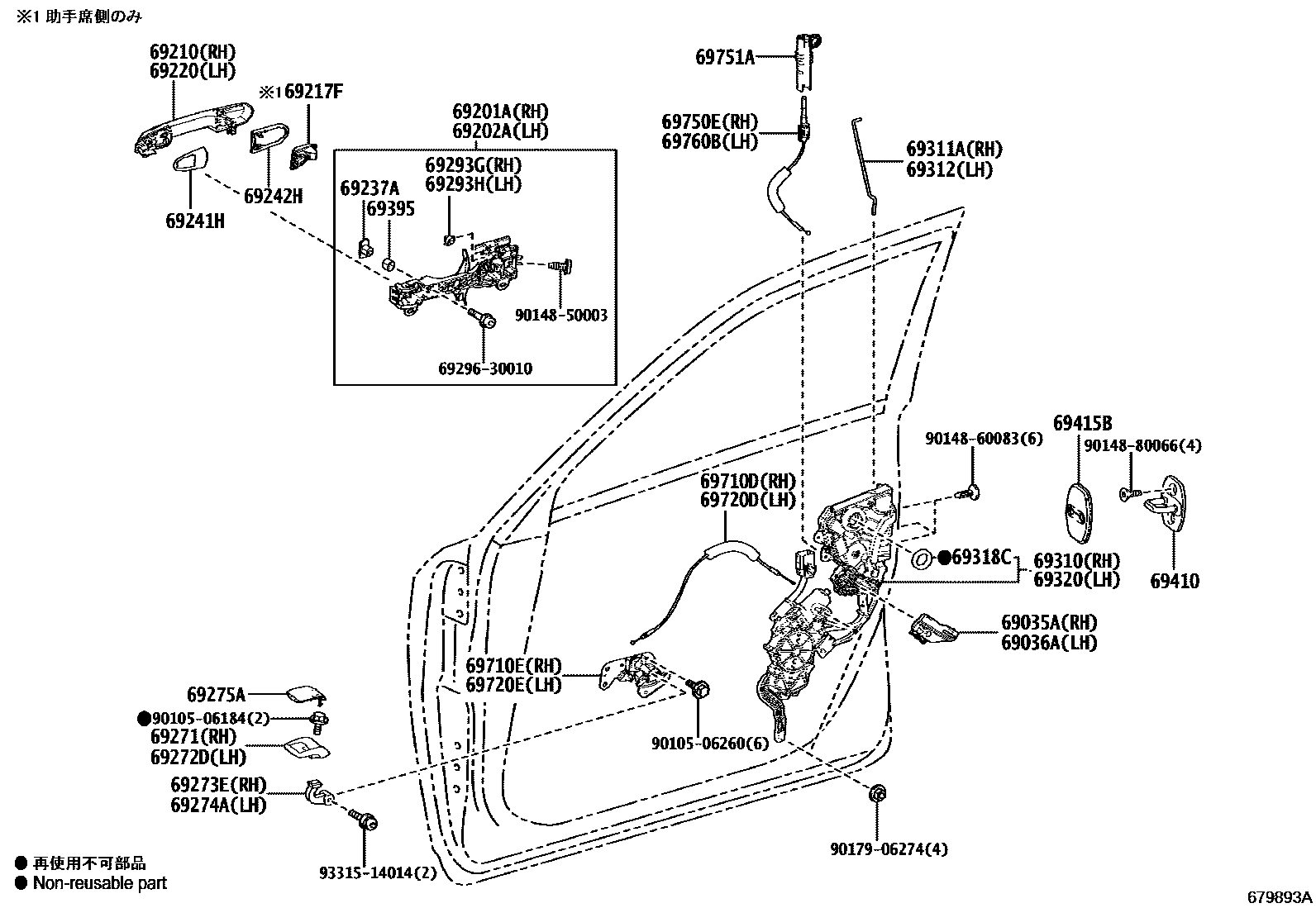

FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
sub69210-30401
sub69210-30401
sub69210-30401
sub69210-30401
SILVER ME.,1C0
ETERNAL BLACK,225
BLACKISH RED MC.,3P6
BLUE MC.,8J9
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
sub69210-30391
sub69210-30391
sub69210-30391
sub69210-30391
SILVER ME.,1C0
ETERNAL BLACK,225
BLACKISH RED MC.,3P6
BLUE MC.,8J9
69237ANUT, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69271HANDLE, FRONT DOOR INSIDE, RH
69272DHANDLE, FRONT DOOR INSIDE, LH
69273EBASE, FRONT DOOR INSIDE HANDLE, RH
69274ABASE, FRONT DOOR INSIDE HANDLE, LH
69275AGARNISH, FRONT DOOR INSIDE HANDLE
LIGHT BROWN,TRIM1#,4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69710ELINK ASSY, FRONT DOOR LOCK CONTROL, RH
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69720ELINK ASSY, FRONT DOOR LOCK CONTROL, LH
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9010506184
main90105-06184
9010506260
main90105-06260
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9017906274
main90179-06274
9331514014
main93315-14014
40 parts on this diagram · 1 diagram in section
