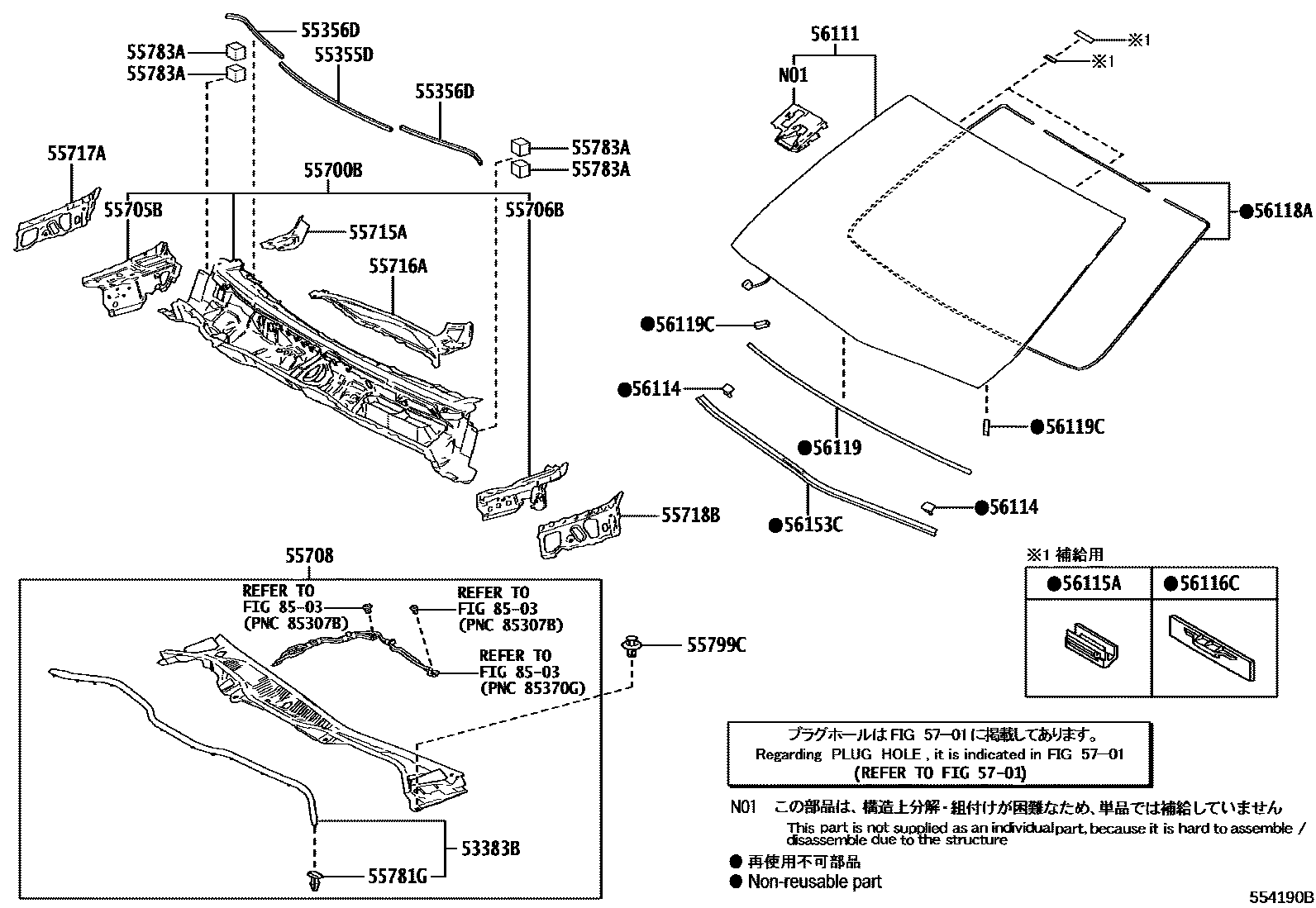

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-40030iUWG60201806

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-40040iUWG60201806

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-40030×2iUWG60201806

55700BCOWL ASSY

main55700-40070iUWG60201806

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-40050iUWG60201806

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-40030iUWG60201806

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-40010supersedes 55708-40020iUWG60201806

55715ABRACE, COWL TOP TO APRON, RH

main55715-40040iUWG60201806

55716ABRACE, COWL TOP TO APRON, LH

main55716-40040iUWG60201806

55717APANEL, COWL TOP SIDE, INNER RH

main55717-40030iUWG60201806

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-40010iUWG60201806

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×17iUWG60201806

55783APAD, COWL TOP SILENCER

main55783-50070×4iUWG60201806

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×4iUWG60201806

56111GLASS, WINDSHIELD

main56101-40900supersedes 56101-40901iUWG60201806

56114RETAINER, WINDSHIELD GLASS

main56114-48010×2iUWG60201806

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iUWG60201806

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iUWG60201806

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-50130iUWG60201806

56119SEAL, WINDSHIELD GLASS

main56119-40020iUWG60201806

56119CSEAL, WINDSHIELD GLASS

main56119-40030×2iUWG60201806

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-40010iUWG60201806

5701HOLE PLUG

→ Go to FIG 57-01

8503WINDSHIELD WASHER

→ Go to FIG 85-03

24 parts on this diagram · 1 diagram in section
