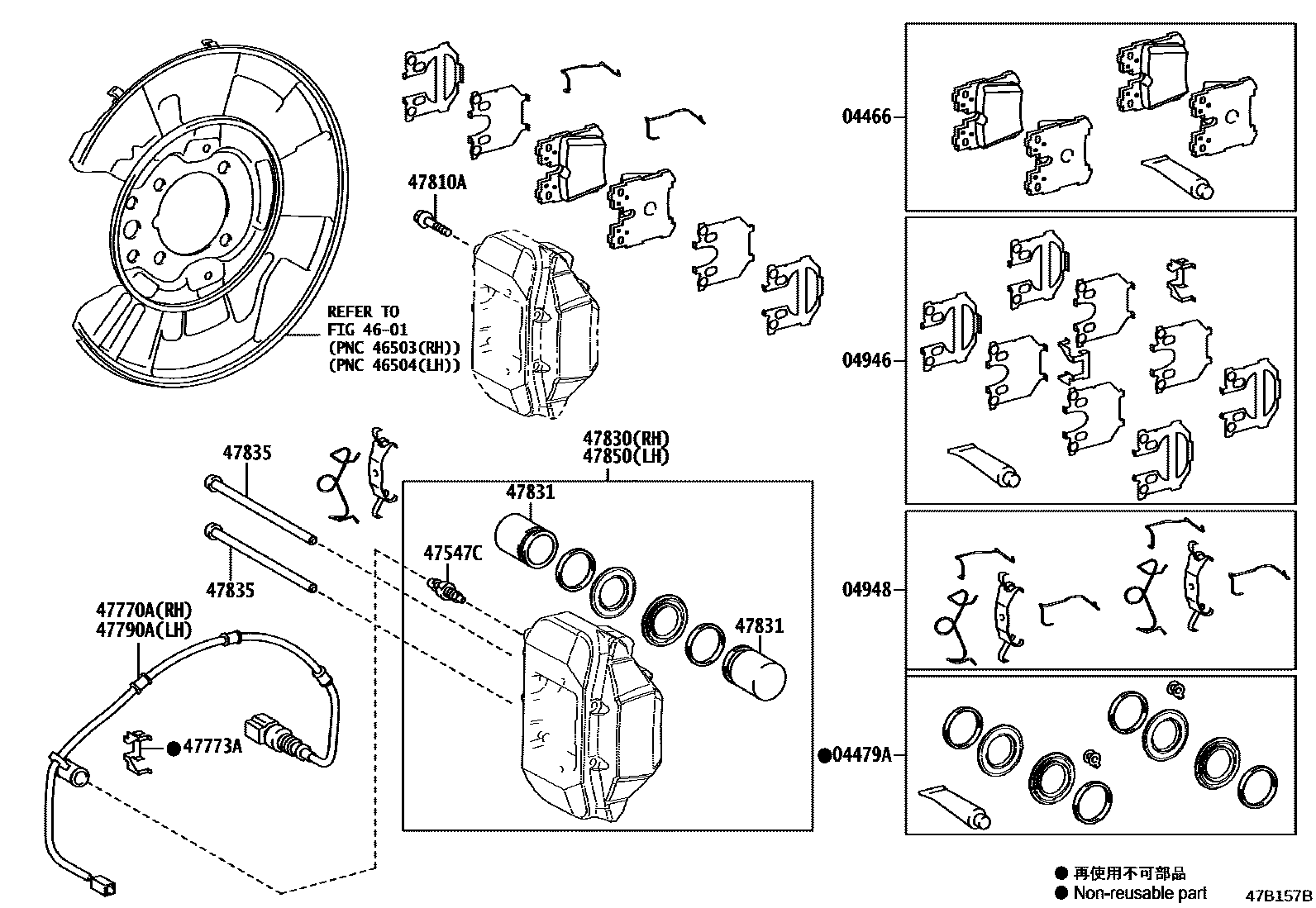

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-50160iUWG60201806

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-50180iUWG60201806

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-50100iUWG60201806

04948FITTING KIT, DISC BRAKE, REAR

main04948-50060iUWG60201806

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-50010×2iUWG60201806

47770AWIRE ASSY, PAD WEAR INDICATOR, RH

main47770-50100iUWG60201806

47773ARETAINER, PAD WEAR INDICATOR

main47773-50030×2iUWG60201806

47790AWIRE ASSY, PAD WEAR INDICATOR, LH

main47790-50060iUWG60201806

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12396×4iUWG60201806

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-50150iUWG60201806

47831PISTON, REAR DISC BRAKE

main47831-50140×4iUWG60201806

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-50140×4iUWG60201806

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-50150iUWG60201806

14 parts on this diagram · 1 diagram in section
