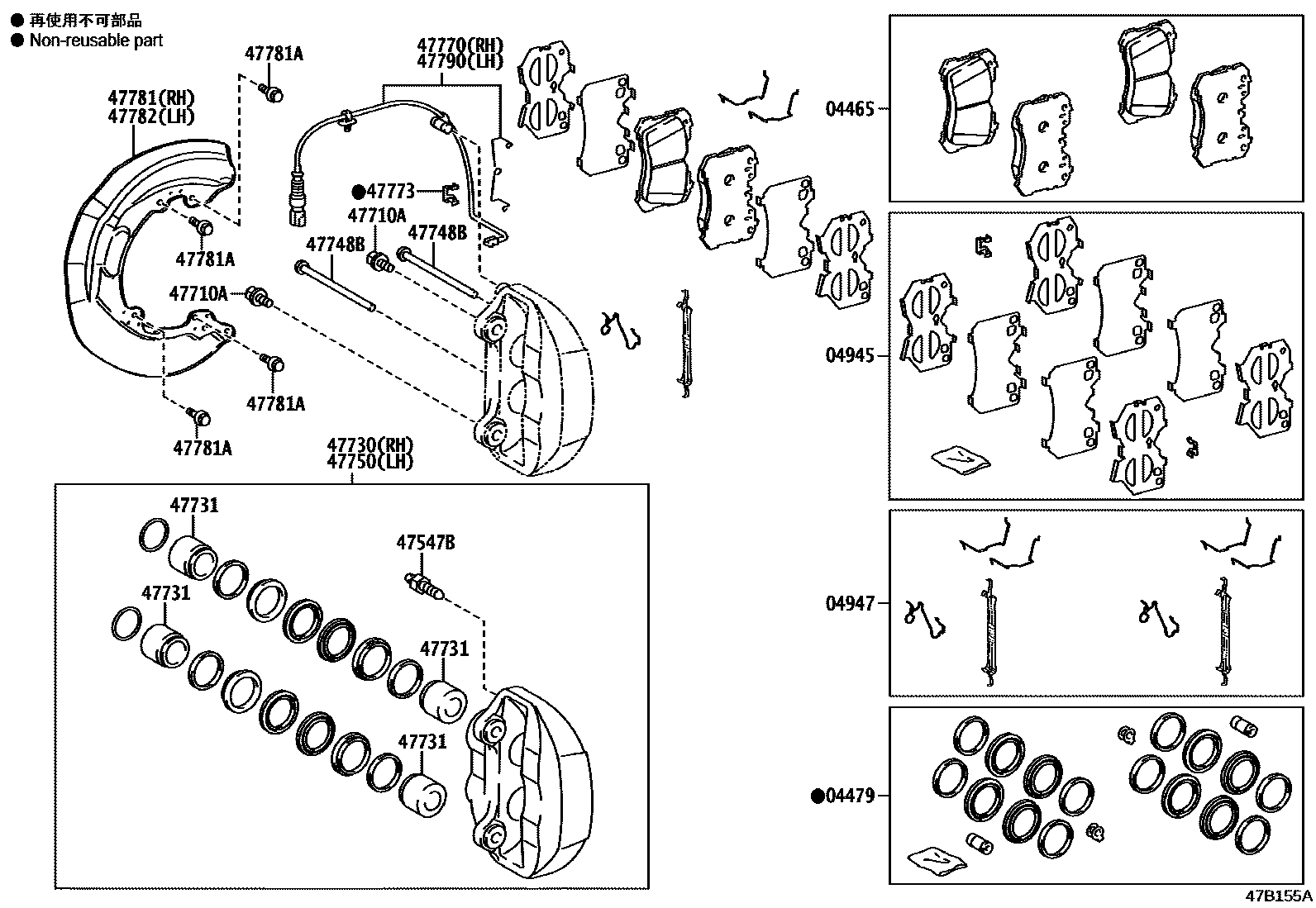

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-50260iUWG60201806

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-50040iUWG60201806

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-50110iUWG60201806

04947FITTING KIT, DISC BRAKE, FRONT

main04947-50130iUWG60201806

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010×2iUWG60201806

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14180×4iUWG60201806

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-50210iUWG60201806

47731PISTON, FRONT DISC BRAKE

main47731-50200×8iUWG60201806

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50200×4iUWG60201806

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-50210iUWG60201806

47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH

main47770-50090iUWG60201806

47773RETAINER, PAD WEAR INDICATOR

main47773-50030×2iUWG60201806

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-50060iUWG60201806

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06508×8iUWG60201806

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-50060iUWG60201806

47790WIRE ASSY, PAD WEAR INDICATOR, FRONT LH

main47790-50050iUWG60201806

16 parts on this diagram · 1 diagram in section
