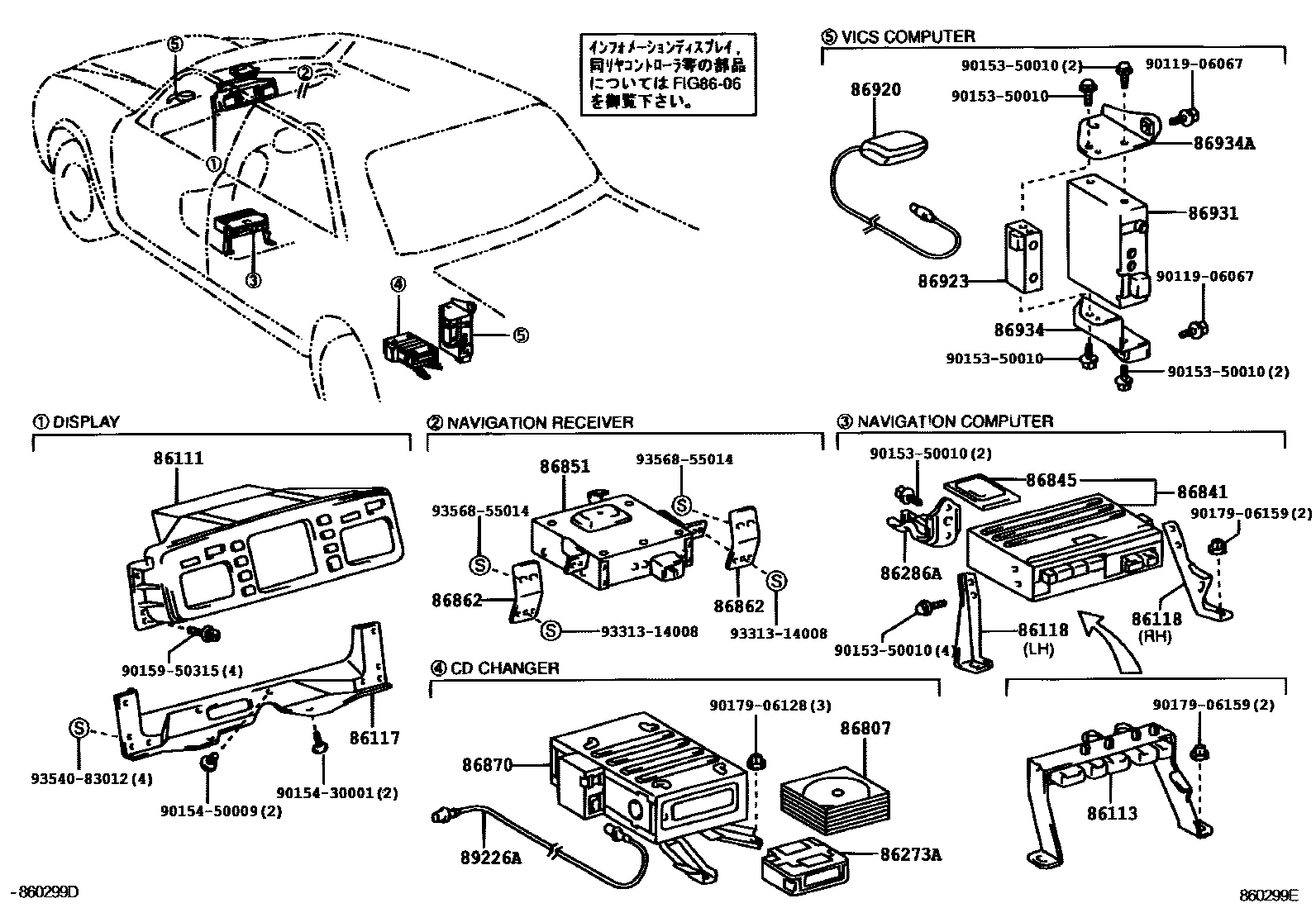

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1

86111MULTI-DISPLAY

main86111-40010iGZG50200004-200501

main86111-40020iGZG50199704-200004

main86111-40030iGZG50200501-201008

main86111-40040iGZG50201008

86113BLOCK, MULTI-DISPLAY JUNCTION

main86113-40010iGZG50199704-200004

main86113-40020iGZG50200004-200501

main86113-40030iGZG50200004-200501

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-40010iGZG50199704-200004

main86117-40050iGZG50200004-200501

main86117-40070iGZG50200501

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86117-40040iGZG50199704-200004

main86117-40060iGZG50200501

main86118-40020iGZG50199704-200004

main86118-40030iGZG50200501-201008

main86118-40040iGZG50201008

86273AMAGAZINE, DISC PLAYER

main86273-30020iGZG50..4FC,4HC199704-200004

86286ABRACKET, AMPLIFIER, NO.2

main86286-40010×2iGZG50..4FC,4HC199704-200004

86807DISC KIT, CD-ROM

main86807-40010iGZG50..4FC,4HC199704-199711

main86807-40011iGZG50..4FC,4HC199711-199811

main86807-40012iGZG50..4FC,4HC199811-199910

main86807-40013iGZG50..4FC,4HC199910-200004

86841COMPUTER, NAVIGATION

main86841-40010iGZG50199704-199711

main86841-40011iGZG50199711-199805

main86841-40012iGZG50199805-200004

main86841-40020iGZG50200105-200501

main86841-40030iGZG50200004-200009

main86841-40031iGZG50200009-200105

main86841-40040iGZG50200501-201008

main86841-40050iGZG50201008-201109

main86841-40051iGZG50201109-201701

86845CARD, NAVIGATION

main86845-40010iGZG50..4FC,4HC199704-199706

main86845-40011iGZG50..4FC,4HC199706-199711

main86845-40012iGZG50..4FC,4HC199711-200004

86851RECEIVER, NAVIGATION

main86851-40010iGZG50199704-200004

86862BRACKET, NAVIGATION ANTENNA

main86862-40010×2iGZG50199704-200004

main86862-40020×2iGZG50200004-200501

86870PLAYER ASSY, CD-ROM

main86871-40030iGZG50..4FC,4HC199704-200004

86920ANTENNA ASSY, TRAFFIC INFORMATION

main86920-40010iGZG50199704-200004

main86920-40020iGZG50200105-200501

main86920-50020iGZG50200004-200105

86923DETECTOR, TRAFFIC INFORMATION

main86923-40010iGZG50199704-200105

main86923-40020iGZG50200105-200501

86931COMPUTER, TRAFFIC INFORMATION

main86931-40010iGZG50199704-200105

main86931-40020iGZG50200105-200501

86934BRACKET, TRAFFIC INFORMATION, NO.1

main86934-40010iGZG50199704-200501

86934ABRACKET, TRAFFIC INFORMATION, NO.2

main86934-40020iGZG50199704-200501

89226AFIBER, OPTICAL

main89226-40050iGZG50..4FC,4HC199704-200004

9011906067

main90119-06067

9015350010

main90153-50010

9015430001

main90154-30001

9015450009

main90154-50009

9015950315

main90159-50315

9017906128

main90179-06128

9017906159

main90179-06159

9331314008

main93313-14008

9354083012

main93540-83012

9356855014

main93568-55014

28 parts on this diagram · 3 diagrams in section
