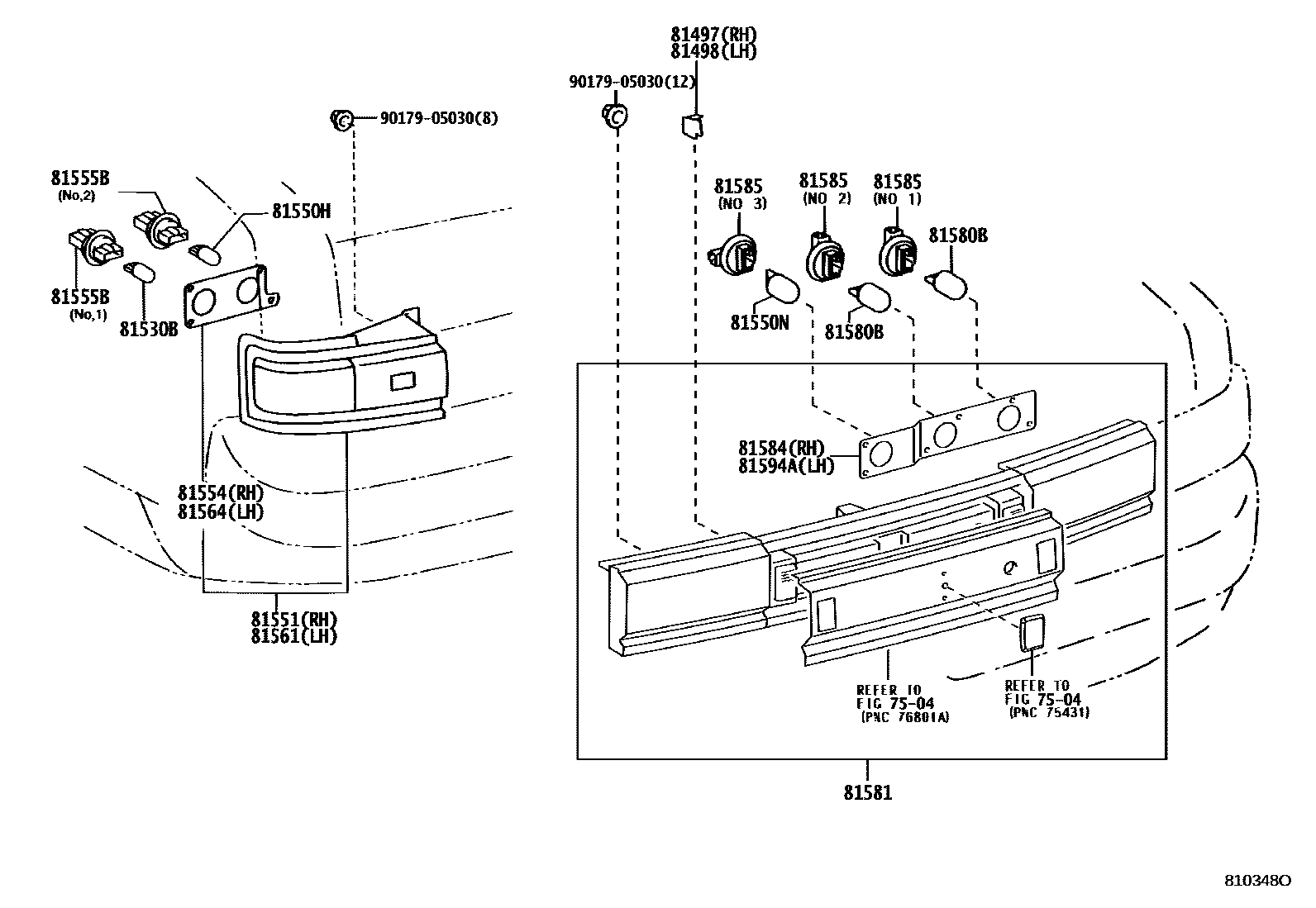

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

7504REAR MOULDING

→ Go to FIG 75-04

81497COVER, REAR COMBINATION LAMP, RH

main81497-40010iGZG50200501

81498COVER, REAR COMBINATION LAMP, LH

main81498-40010iGZG50199704-200501

81530BBULB, REAR TURN SIGNAL LAMP

main90981-13043×2iGZG50199704-200501

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iGZG50199704-200501

81550NBULB, BACK UP LAMP

main90981-13043×2iGZG50199704-200501

81551LENS, REAR COMBINATION LAMP, RH

main81551-40040iGZG50199704-200501

main81551-40060iGZG50200501-200801

main81551-40061iGZG50200801

main81551-40070iGZG50200501-200801

main81551-40071iGZG50200801

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-40040iGZG50199704-200501

81555BSOCKET PLUG, NO.1

main90075-60002×2iGZG50199704-200501

main90075-60003×2iGZG50199704-200501

81561LENS, REAR COMBINATION LAMP, LH

main81561-40040iGZG50199704-200501

main81561-40060iGZG50200501-200801

main81561-40061iGZG50200801

main81561-40070iGZG50200501-200801

main81561-40071iGZG50200801

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-40040iGZG50200501

81580BBULB (FOR REAR LAMP)

main90981-13044×4iGZG50199704-200501

81581LENS, REAR LAMP

main81581-40010iGZG50199704-200501

main81581-40020iGZG50199704-200501

main81581-40070iGZG50200501-200711

main81581-40071iGZG50200711-200801

main81581-40080iGZG50200501-200711

main81581-40081iGZG50200711-200801

main81581-40110iGZG50200801-201008

main81581-40120iGZG50200801-201008

main81581-40150iGZG50201008

main81581-40160iGZG50201008

81584PACKING, REAR LAMP RH

main81584-40010iGZG50199704-200501

81585SOCKET & WIRE, REAR LAMP

main81585-40010×2iGZG50199704-200501

main81585-40070×2iGZG50200501

main81585-40080×2iGZG50200501

main81586-40010×2iGZG50199704-200501

main81586-40050iGZG50200501-200711

main81586-40070×2iGZG50200501

main81587-40010×2iGZG50199704-200501

81594AGASKET, REAR LAMP LH

main81584-40010iGZG50199704-200501

9017905030

main90179-05030

17 parts on this diagram · 3 diagrams in section
