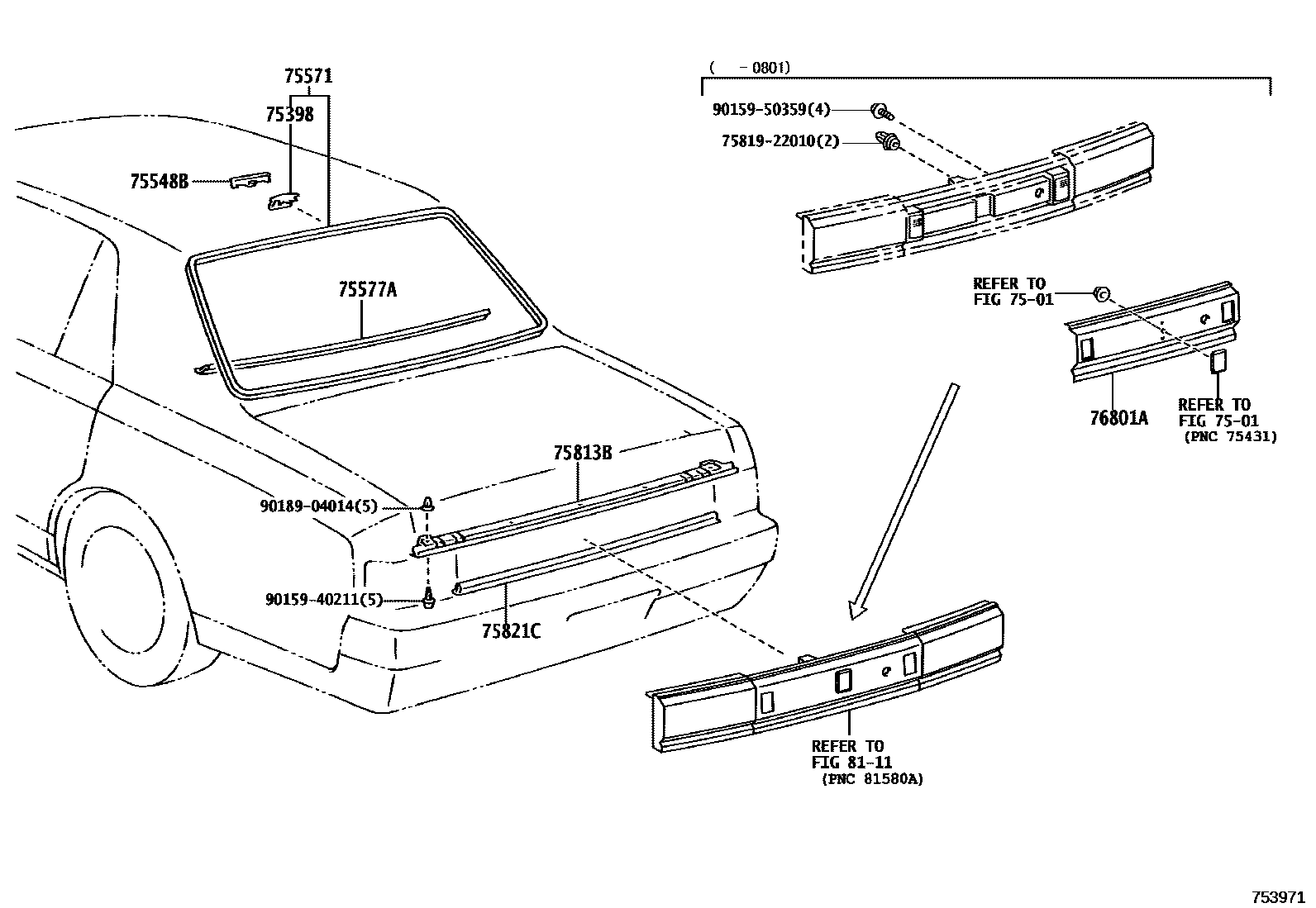

REAR MOULDING

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75398CLIP, OUTSIDE MOULDING, NO.5

main75398-40010×33iGZG50199704-200501

75548BFASTENER, BACK WINDOW OUTSIDE MOULDING

main75548-40020×33iGZG50199704-200501

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75501-40010iGZG50199704-200501

75577AMOULDING, BACK WINDOW OUTSIDE LOWER, RH

main75577-40020iGZG50199704-200501

75813BMOULDING, LUGGAGE COMPARTMENT DOOR

main75813-40010iGZG50199704-200501

main75813-40011iGZG50201008

75821CCOVER, LUGGAGE DOOR MOULDING END

main75821-40020iGZG50199704-200501

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-40010iGZG50199704-200501

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

7581922010CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-22010

9015940211

main90159-40211

9015950359

main90159-50359

9018904014

main90189-04014

13 parts on this diagram · 1 diagram in section
