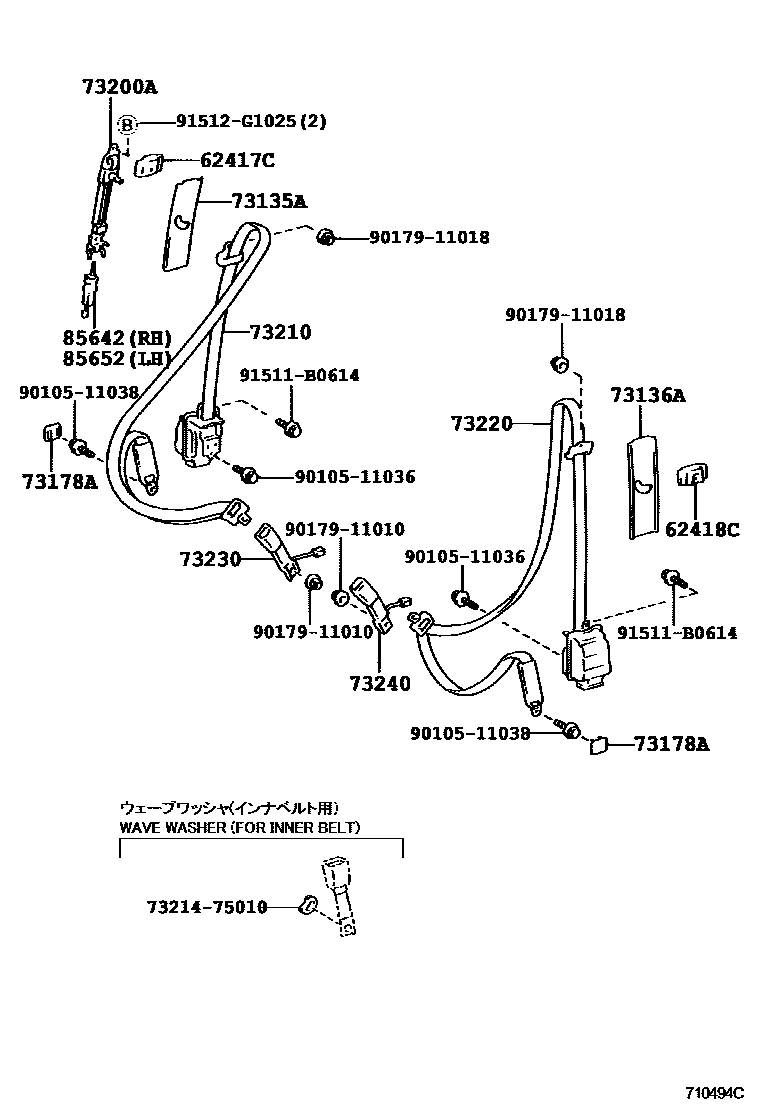

SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� ������� 0002 1�� ������� 0003 1�� ������� 0004 1�������(���� ���� �-�)

62417CPAD, CENTER PILLAR, RH

main62417-40030iGZG50200501

62418CPAD, CENTER PILLAR, LH

main62418-40020iGZG50199704-200501

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73135-50041-B0iGZG50199704-200501

BLUE GRAY,TRIM8#

main73135-50041-B1iGZG50200501-201701

LT.GRAY,TRIM1#

main73135-50041-E0iGZG50199704-200501

ORCHID,TRIM4#

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73136-50041-B0iGZG50199704-200501

BLUE GRAY,TRIM8#

main73136-50041-B1iGZG50200501-201701

LT.GRAY,TRIM1#

main73136-50041-E0iGZG50199704-200501

ORCHID,TRIM4#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-50010-B1×2iGZG50200501-201701

MD.GRAY,TRIM1#

main73178-50010-B2×2iGZG50199704-200501

DK.BLUE GRAY,TRIM8#

main73178-50010-E0×2iGZG50199704-200501

ORCHID,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-50060×2iGZG50199704-200501

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-40060-B0iGZG50199704-200501

BLUISH GRAY,TRIM1#

main73210-40060-B1iGZG50200501-201701

BLUISH GRAY,TRIM8#

main73210-40060-E0iGZG50200501-201701

LIGHT OAK,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-40030-B0iGZG50200501-201701

BLUISH GRAY,TRIM1#

main73220-40030-B1iGZG50199704-200501

BLUISH GRAY,TRIM8#

main73220-40030-E0iGZG50200501-201701

LIGHT OAK,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-40050-B0iGZG50200501-201701

MD.GRAY,TRIM1#

main73230-40050-B1iGZG50199704-200501

DK.BLUE GRAY,TRIM8#

main73230-40050-E0iGZG50200501-201701

ORCHID,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-40070-B0iGZG50199704-200004

MD.GRAY,TRIM1#

main73240-40070-B1iGZG50199704-200004

DK.BLUE GRAY,TRIM8#

main73240-40070-E0iGZG50199704-200004

ORCHID,TRIM4#

main73240-40100-B0iGZG50200501-201701

MD.GRAY,TRIM1#

main73240-40100-B1iGZG50200501-201701

DK.BLUE GRAY,TRIM8#

main73240-40100-E0iGZG50200004-200501

ORCHID,TRIM4#

85642MOTOR, HEIGHT ADJUSTABLE ANCHOR, RH

main85642-40010iGZG50199704-200501

85652MOTOR, HEIGHT ADJUSTABLE ANCHOR, LH

main85642-40010iGZG50199704-200501

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010511036

main90105-11036

9010511038

main90105-11038

9017911010

main90179-11010

9017911018

main90179-11018

91511B0614

main91511-B0614

91512G1025

main91512-G1025

19 parts on this diagram · 4 diagrams in section
