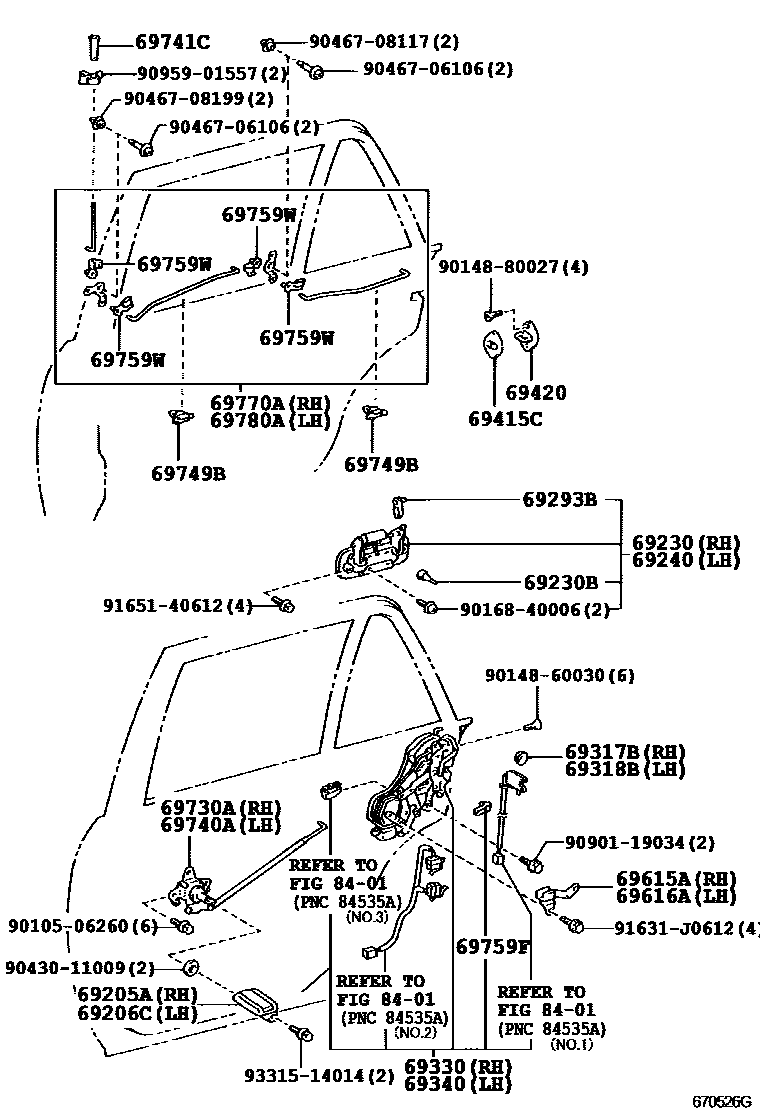

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69293BSNAP, REAR DOOR OUTSIDE HANDLE
69317BSEAL, REAR DOOR LOCK HOLE, RH
69318BSEAL, REAR DOOR LOCK HOLE, LH
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69415CCOVER, DOOR LOCK STRIKER, REAR
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69615APLATE, DOOR LOCK REMOTE CONTROL BASE, RH
69616APLATE, DOOR LOCK REMOTE CONTROL BASE, LH
69730ALINK ASSY, REAR DOOR LOCK CONTROL, RH
69740ALINK ASSY, REAR DOOR LOCK CONTROL, LH
69741CKNOB, REAR DOOR LOCK CONTROL
69749BCLAMP, REAR DOOR LOCK LINK
69759FSNAP, REAR DOOR LOCK CONTROL LINK
69759WSNAP, REAR DOOR LOCK CONTROL LINK
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
8401
9010506260
main90105-06260
9014860030
main90148-60030
9014880027
main90148-80027
9016840006
main90168-40006
9043011009
main90430-11009
9046706106
main90467-06106
9046708117
main90467-08117
9046708199
main90467-08199
9090119034
main90901-19034
9095901557
main90959-01557
91631J0612
main91631-J0612
9165140612
main91651-40612
9331514014
main93315-14014
36 parts on this diagram · 1 diagram in section
