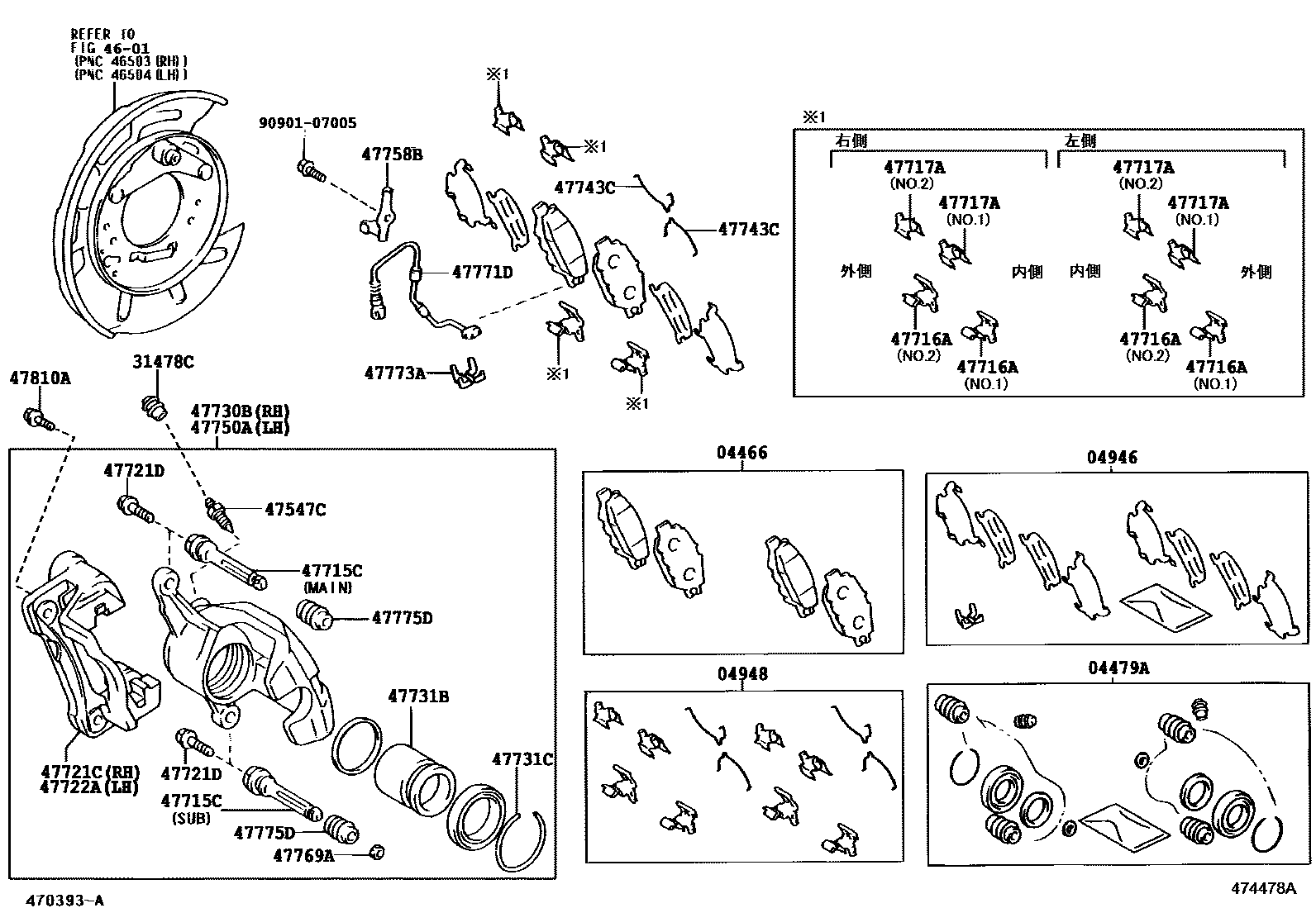

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-40040iGZG50199704-200501

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-50102iGZG50199704-200501

main04479-50170iGZG50200605

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-50021iGZG50199704-200501

04948FITTING KIT, DISC BRAKE, REAR

main04948-30050iGZG50199704-200501

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-50020×2iGZG50199704-200501

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030×2iGZG50199704-200501

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-50010×2iGZG50199704-200501

main47715-50030×2iGZG50199704-200501

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-30200×2iGZG50199804-200501

main47716-30210×2iGZG50199804-200501

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-30090×2iGZG50199804-200501

main47717-30100×2iGZG50200501

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-50070iGZG50200501

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164×4iGZG50199704-200501

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-50060iGZG50199704-200501

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-50111iGZG50199704-200501

47731BPISTON, REAR DISC BRAKE

main47731-30120×2iGZG50199704-200501

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-50002×2iGZG50199704-200501

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-50020×4iGZG50199704-200501

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-50111iGZG50199704-200501

47758BBRACKET, WIRE CLAMP, RH NO.1

main47758-50050iGZG50199704-200501

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010×2iGZG50199704-200501

47771DWIRE, PAD WEAR INDICATOR RH

main47771-50060iGZG50199704-200501

47773ARETAINER, PAD WEAR INDICATOR

main47773-50020iGZG50199704-200501

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-30070×4iGZG50199704-200501

main47775-50010×4iGZG50200605

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174×4iGZG50199704-200501

9090107005

main90901-07005

25 parts on this diagram · 1 diagram in section
