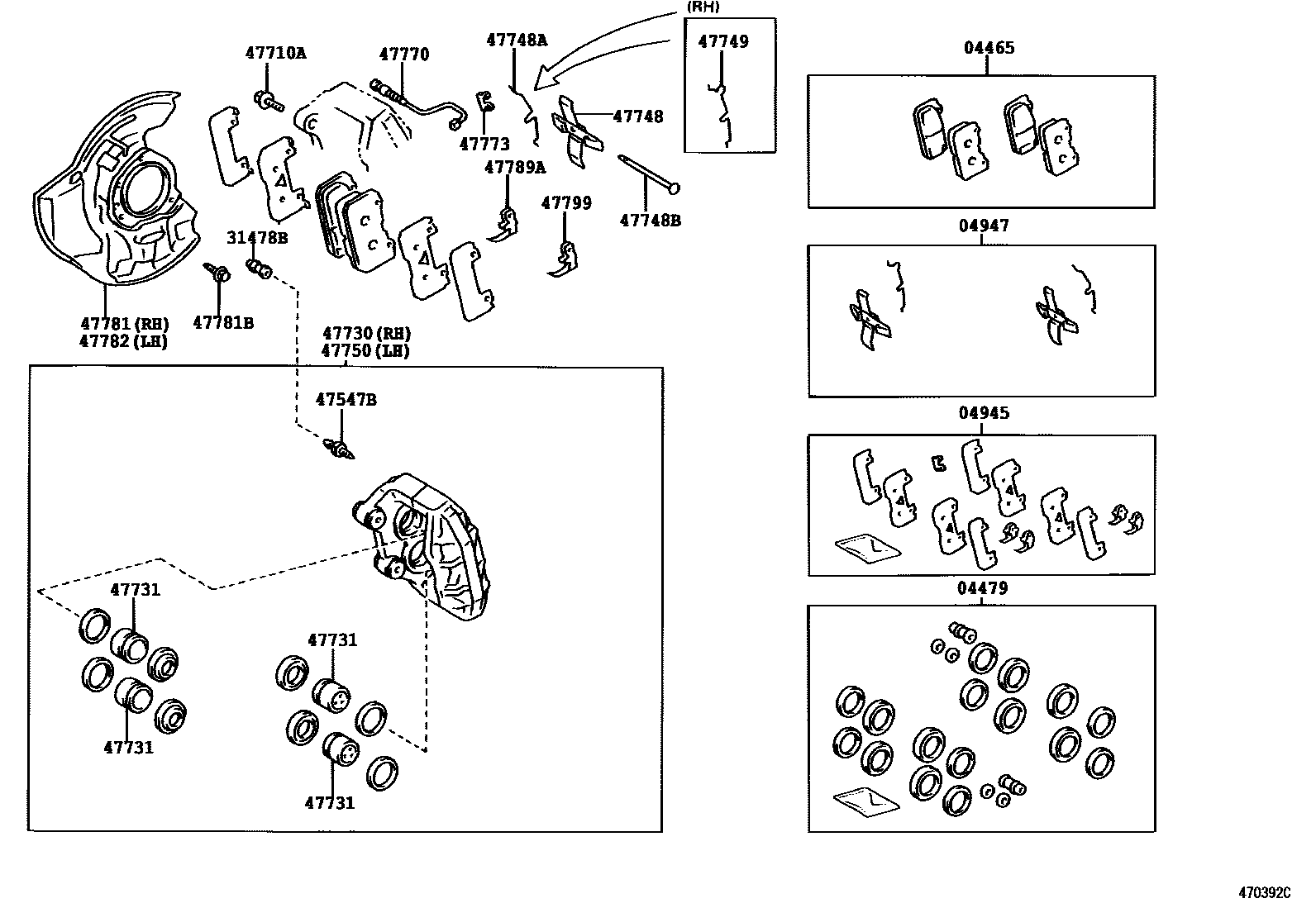

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-50070iGZG50199704-200501

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-50091iGZG50199704-200501

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-50012iGZG50199704-200501

04947FITTING KIT, DISC BRAKE, FRONT

main04947-50083iGZG50199704-200501

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010×2iGZG50199704-200501

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030×2iGZG50199704-200501

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228×4iGZG50199704-200501

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-50102iGZG50199704-200501

47731PISTON, FRONT DISC BRAKE

main47731-50060×8iGZG50199704-200501

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-50010×2iGZG50199704-200501

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12022iGZG50199704-200501

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50010×4iGZG50199704-200501

47749CLIP, PIN HOLD

main47749-50020iGZG50199704-200501

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-50102iGZG50199704-200501

47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH

main47770-50030iGZG50199704-200005

main47770-50031iGZG50200005-200501

47773RETAINER, PAD WEAR INDICATOR

main47773-50030iGZG50199704-200501

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-50031iGZG50199704-200501

47781BBOLT(FOR DUST COVER SETTING)

main90148-60028×8iGZG50199704-200501

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-50031iGZG50199704-200501

47789ASPACER, FRONT DISC BRAKE PAD, NO.1

main47789-50012×2iGZG50199704-200501

47799SPACER, DISC BRAKE PAD, NO.2

main47789-50012×2iGZG50199704-200501

21 parts on this diagram · 1 diagram in section
