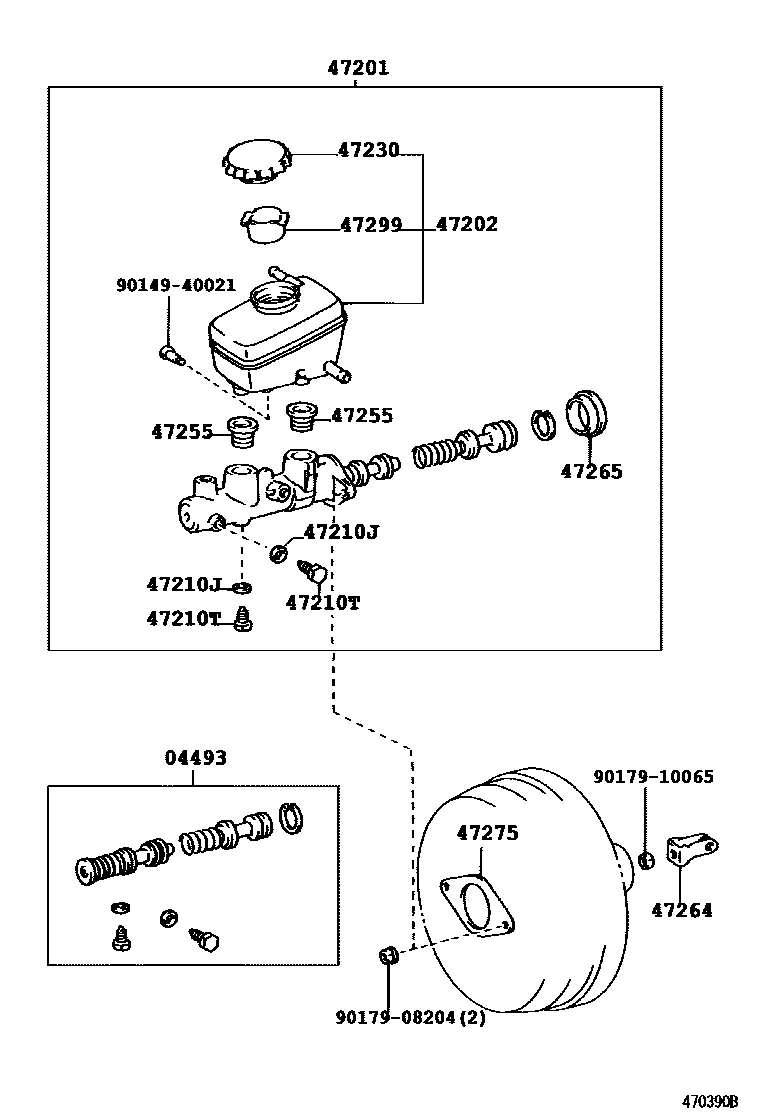

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-50040iGZG50199704-200004

main04493-50050iGZG50200004-200501

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-40070iGZG50199704-200004

main47201-40100iGZG50200004-200501

main47201-40110iGZG50200501

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-40020iGZG50199704-200004

main47220-40050iGZG50200004-200501

main47220-50180iGZG50200501

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iGZG50199704-200004

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iGZG50199704-200004

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20100iGZG50200004-200501

sub47230-47090

main47230-24010iGZG50199704-201612

sub47230-47090

main47230-47090iGZG50201612-201701

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iGZG50199704-200501

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-30050iGZG50199704-200501

47265BOOT, MASTER CYLINDER

main47265-20050iGZG50199704-200501

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iGZG50199704-200501

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGZG50199704-200501

9014940021

main90149-40021

9017908204

main90179-08204

9017910065

main90179-10065

14 parts on this diagram · 2 diagrams in section
