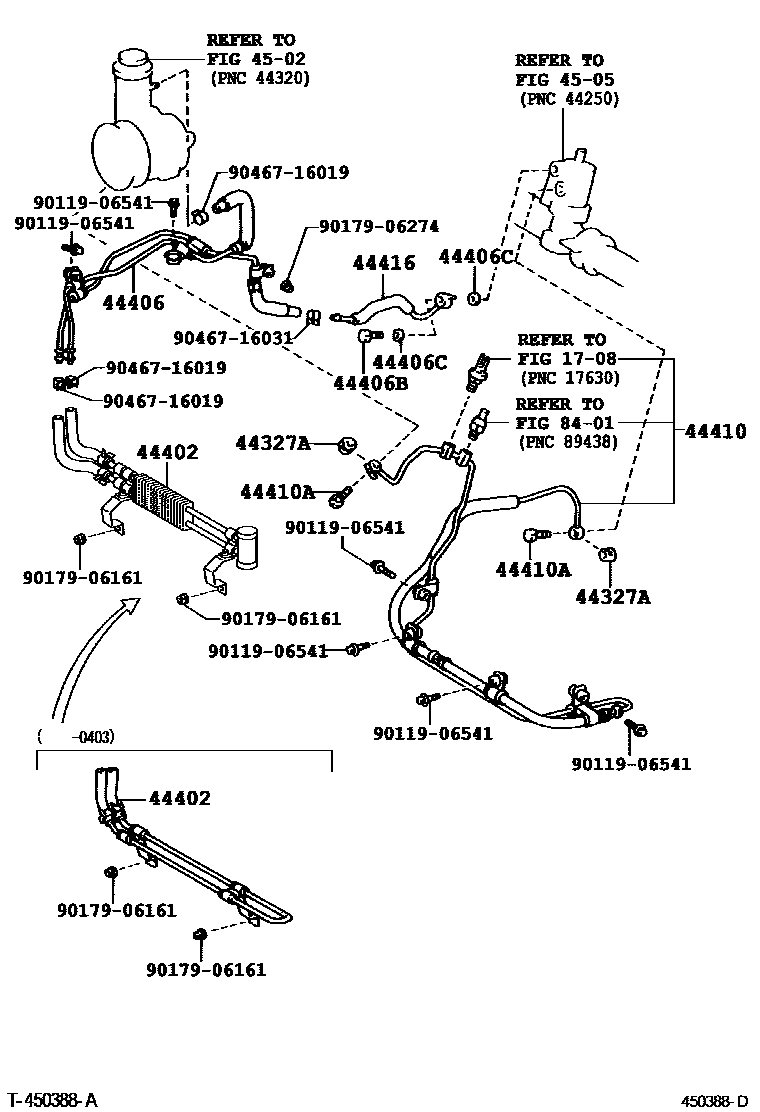

POWER STEERING TUBE

0001 1 0002 1

1708VACUUM PIPING

→ Go to FIG 17-08

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030×2iGZG50199704-200501

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-40030iGZG50199704-200403

main44402-40050iGZG50200403-200501

44406TUBE SUB-ASSY, RETURN

main44406-40010iGZG50199704-200403

main44406-40050iGZG50200403-200501

main44406-40060iGZG50200501

44406BBOLT, UNION(FOR RETURN TUBE)

main90401-17005iGZG50200208-200501

main96341-11703iGZG50199704-200208

44406CGASKET(FOR RETURN TUBE)

main90430-17006×2iGZG50199704-200501

44410TUBE ASSY, PRESSURE FEED

main44410-40010iGZG50199704-200501

main44410-40020iGZG50200501

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main96341-41603×2iGZG50199704-200501

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-40040iGZG50199704-200501

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906541

main90119-06541

9017906161

main90179-06161

9017906274

main90179-06274

9046716019

main90467-16019

9046716031

main90467-16031

17 parts on this diagram · 2 diagrams in section
