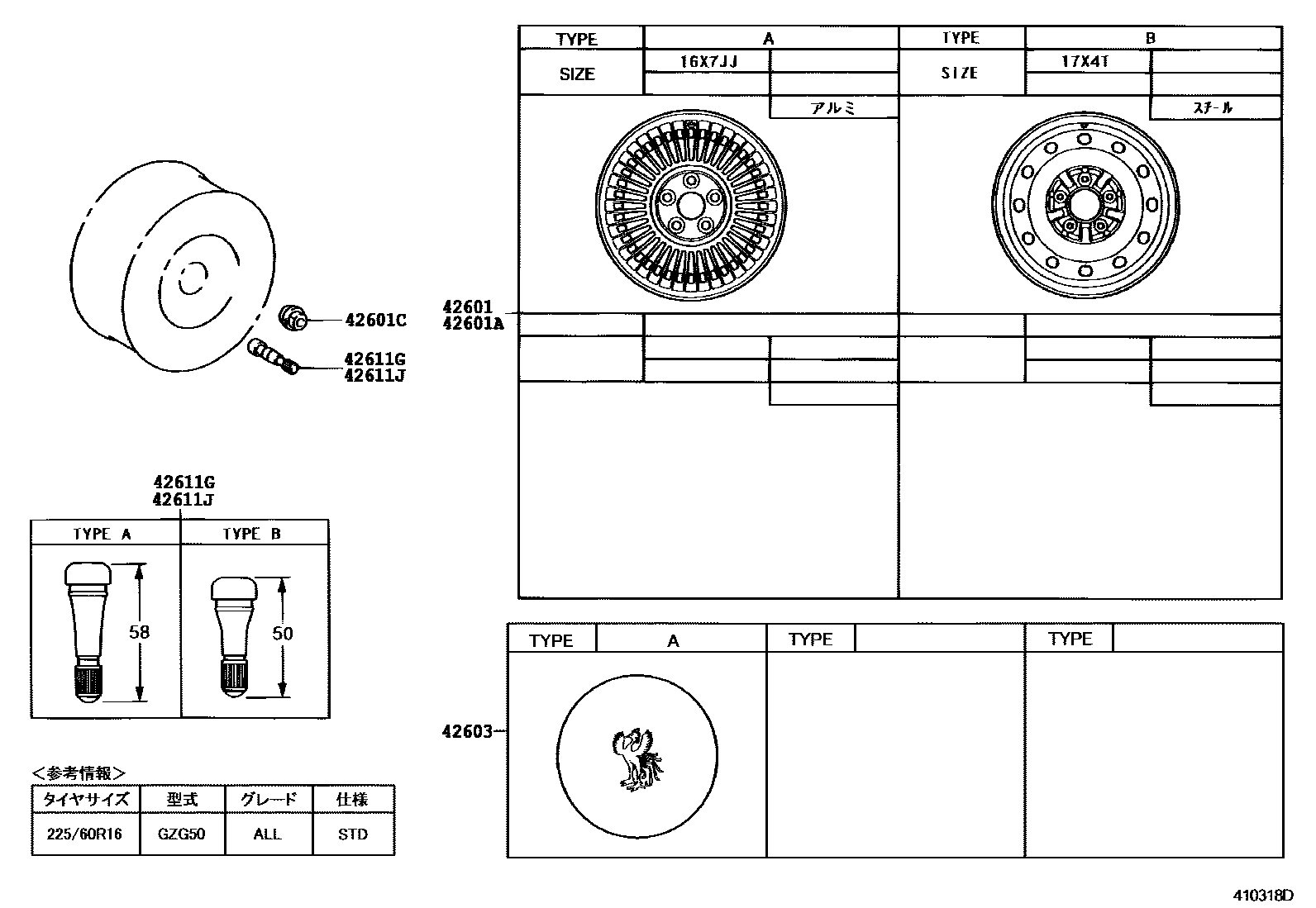

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-40070×4iGZG50200501

42601AWHEEL, DISC (FOR SPARE)

main42611-40070iGZG50200501

main42611-50090iGZG50200301-200501

42601CNUT, HUB (FOR AXLE)

main90942-01062×20iGZG50199704-200501

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-40020-B0×4iGZG50200501-201701

main42603-40020-B1×4iGZG50200501-201701

main42603-40020-C0×4iGZG50200501-201701

main42603-40020-G0×4iGZG50199704-200501

main42603-40020-J0×4iGZG50199704-200501

main42603-40020-J1×4iGZG50199704-200501

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004×4iGZG50199704-200501

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05004iGZG50199704-200501

main90942-05009iGZG50200301-200501

6 parts on this diagram · 2 diagrams in section
