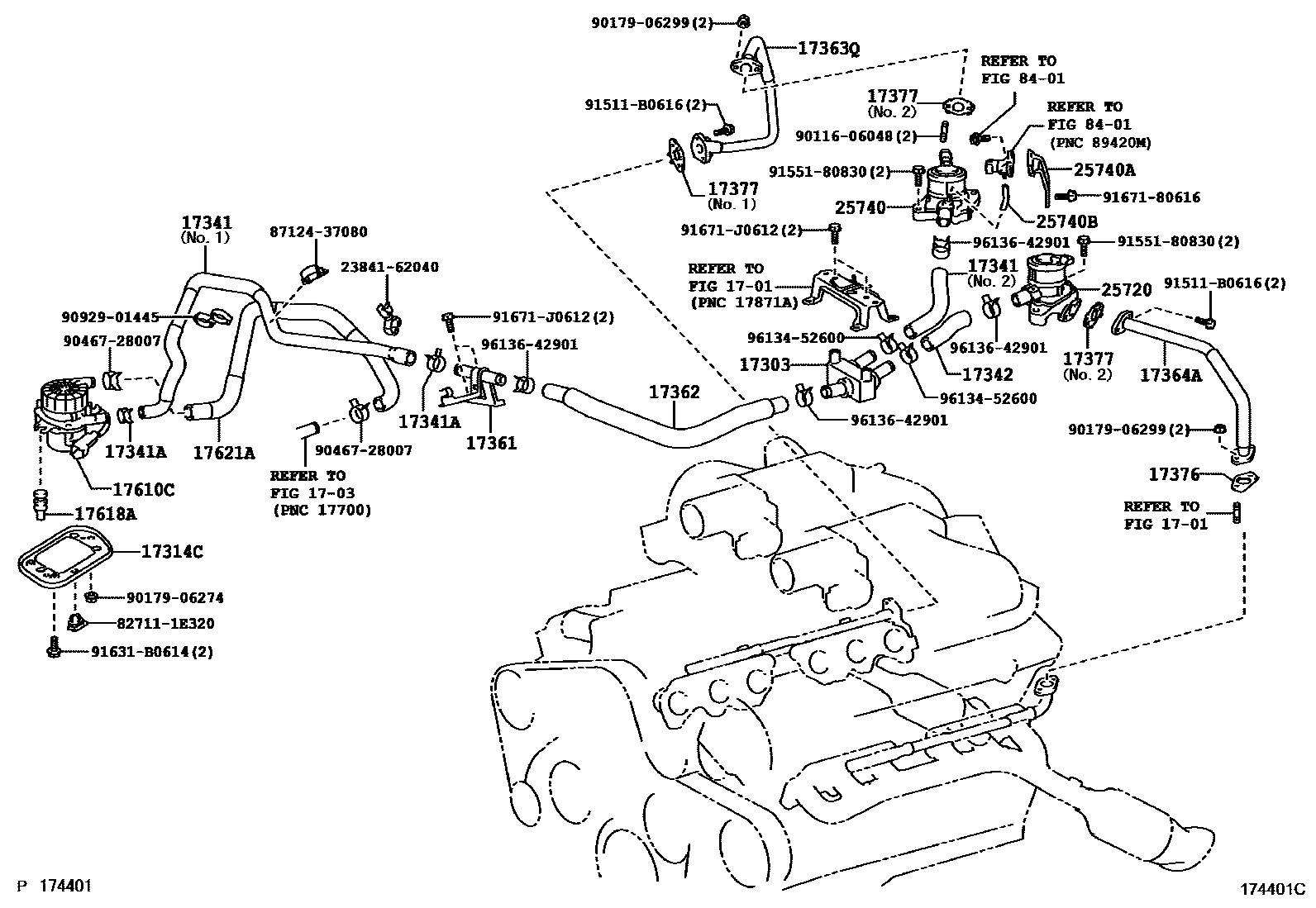

MANIFOLD AIR INJECTION SYSTEM
1701
1703
17303PIPE SUB-ASSY, AIR
17314CBRACKET, AIR PUMP
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17361TUBE, AIR
17362TUBE, AIR, NO.2
17363QTUBE, AIR, NO.3
17364ATUBE, AIR NO.4
17376GASKET, AIR TUBE, NO.1
17610CPUMP ASSY, AIR
17618AINSULATOR, AIR PUMP
25720VALVE ASSY, ELECTRIC AIR CONTROL
sub25720-32011
sub25720-32012
sub25720-32013
sub25720-32014
sub25720-32015
25740ABRACKET, AIR CONTROL VALVE
25740BHOSE(FOR AIR CONTROL VALVE ASSY)
8401
2384162040CLAMP, FUEL PIPE(HOSE), NO.1
main23841-62040
827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E320
8712437080CLAMP, HEATER
main87124-37080
9011606048
main90116-06048
9017906274
main90179-06274
9017906299
main90179-06299
9046728007
main90467-28007
9092901445
main90929-01445
91511B0616
main91511-B0616
9155180830
main91551-80830
91631B0614
main91631-B0614
9167180616
main91671-80616
91671J0612
main91671-J0612
9613452600
main96134-52600
9613642901
main96136-42901
36 parts on this diagram · 1 diagram in section
