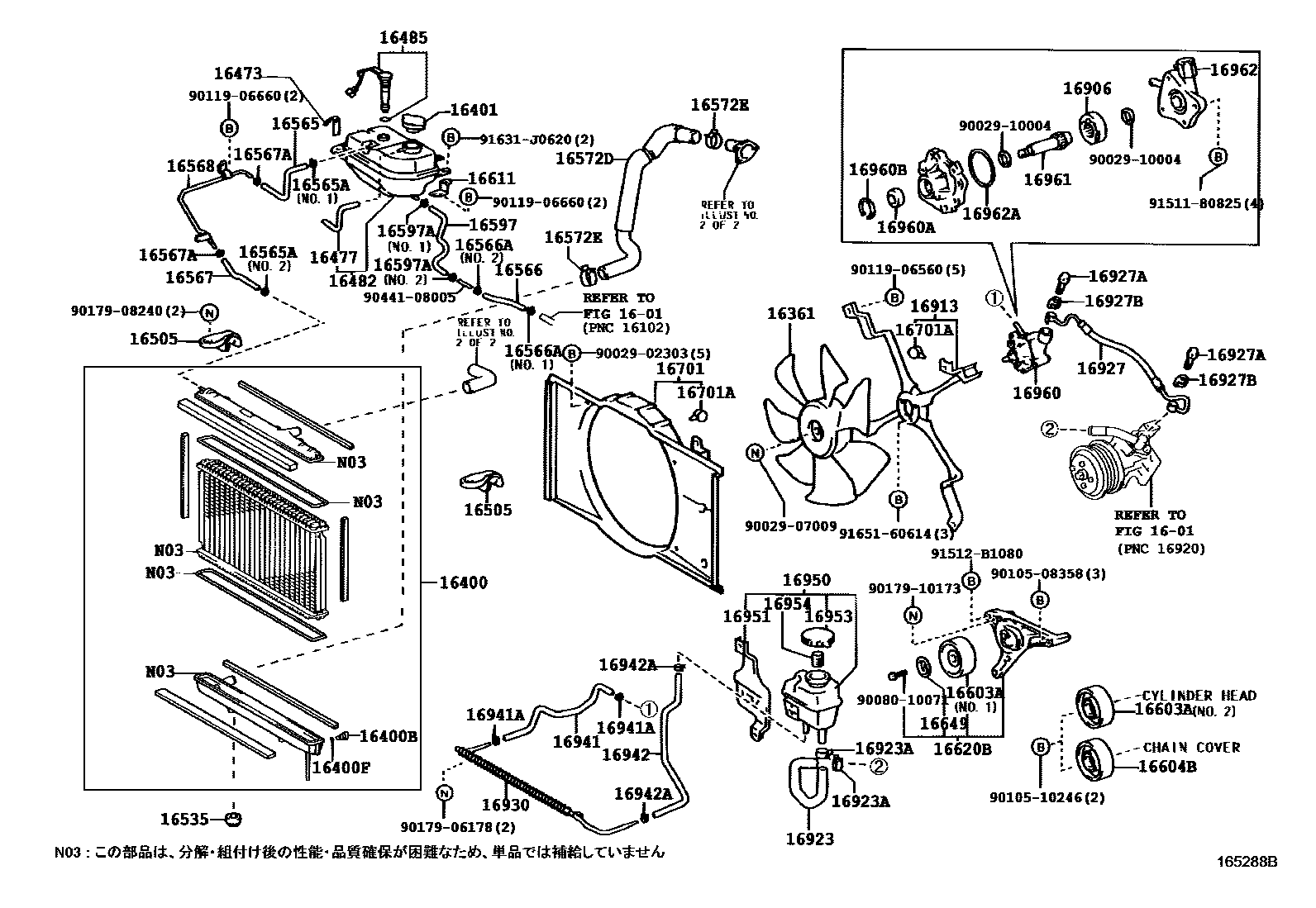

RADIATOR & WATER OUTLET
1601
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16473SUPPORT(FOR RADIATOR RESERVE TANK)
16477PIPE(FOR RADIATOR RESERVE TANK)
16482TANK SUB-ASSY, RADIATOR RESERVE
16485SWITCH ASSY, LEVEL WARNING
16535SUPPORT, RADIATOR, LOWER
16565HOSE, RESERVE TANK INLET
16566ACLIP(FOR RESERVE TANK OUTLET)
16567HOSE(FOR RADIATOR RESERVE TANK)
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16568PIPE, RADIATOR TO RESERVE TANK
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16597HOSE, RESERVE TANK OUTLET, NO.2
16597ACLIP(FOR RESERVE TANK OUTLET HOSE NO.2)
16603APULLEY SUB-ASSY, IDLER, NO.1
16604BPULLEY SUB-ASSY, IDLER, NO.2
16611BRACKET, RADIATOR RESERVE TANK
16620BTENSIONER ASSY, V-RIBBED BELT, NO.2
16649PLATE, IDLER PULLEY COVER
16701SHROUD SUB-ASSY, FAN
16701ACLIP(FOR FAN SHROUD)
16906GEAR SET, HYDRAULIC
16913STAY, HYDRAULIC MOTOR FAN SHROUD
16923HOSE, HYDRAULIC MOTOR SUCTION, NO.1
16923ACLIP(FOR SUCTION HOSE NO.1)
16927HOSE, HYDRAULIC MOTOR PRESSURE
16927ABOLT, UNION(FOR PRESSURE HOSE)
16927BGASKET(FOR PRESSURE HOSE)
16930COOLER ASSY, HYDRAULIC MOTOR OIL
16941HOSE, HYDRAULIC MOTOR RETURN, NO.1
16941ACLIP(FOR RETURN NO.1)
16942HOSE, HYDRAULIC MOTOR RETURN, NO.2
16942ACLIP(FOR RETURN HOSE NO.2)
16950TANK ASSY, HYDRAULIC MOTOR RESERVE
16951BRACKET, HYDRALIC MOTOR RESERVE TANK
16953CAP, HYDRAULIC MOTOR RESERVE TANK
16954STRAINER, HYDRAULIC MOTOR RESERVE TANK
16960MOTOR ASSY, HYDRAULIC GEAR
16960ASEAL, OIL(FOR HYDRAULIC GEAR MOTOR)
16960BRING, SNAP(FOR HYDRAULIC GEAR MOTOR)
16961SHAFT, HYDRAULIC GEAR MOTOR
16962COVER, HYDRAULIC GEAR MOTOR
16962ARING, O(FOR HYDRAULIC GEAR MOTOR COVER)
9002902303
main90029-02303
9002907009
main90029-07009
9002910004
main90029-10004
9008010071
main90080-10071
9010508358
main90105-08358
9010510246
main90105-10246
9011906560
main90119-06560
9011906660
main90119-06660
9017906178
main90179-06178
9017908240
main90179-08240
9017910173
main90179-10173
9044108005
main90441-08005
9151180825
main91511-80825
91512B1080
main91512-B1080
91631J0620
main91631-J0620
9165160614
main91651-60614
68 parts on this diagram · 5 diagrams in section
