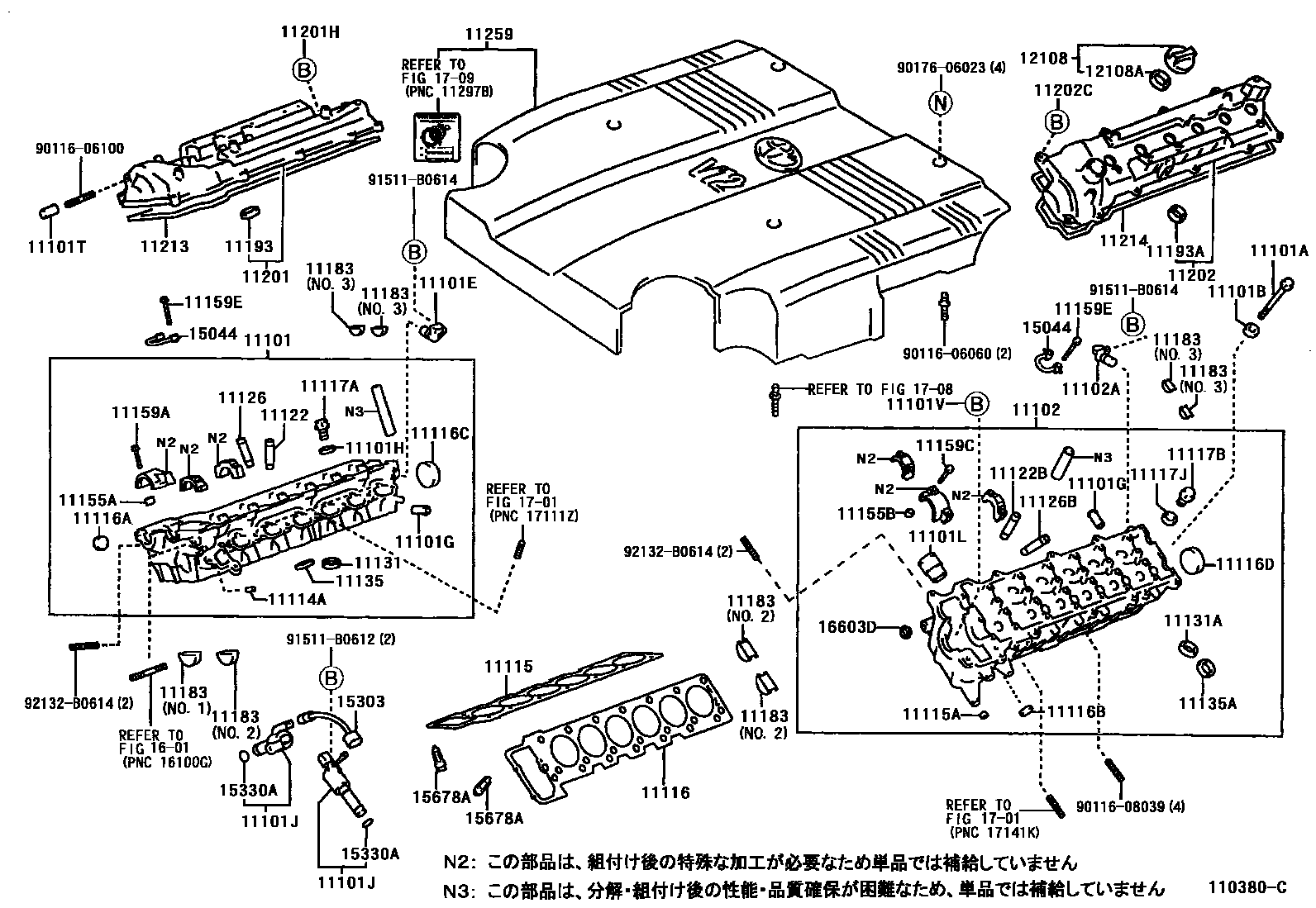

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11101GUNION(FOR CYLINDER HEAD)
11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)
11101LUNION, NO.2(FOR CYLINDER HEAD)
11101TPLUG, HEATER WATER
11101VBOLT(FOR CYLINDER HEAD SET SUB)
11102ASENSOR, CAMSHAFT POSITION
11114APIN, STRAIGHT
11115GASKET, CYLINDER HEAD
11115APIN, RING
11116GASKET, CYLINDER HEAD, NO.2
11116APLUG, TIGHT, NO.1
11116BPLUG, TIGHT, NO.2
11116CPLUG, TIGHT, NO.3
11116DPLUG, TIGHT, NO.4
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
sub11122-22040
11122BBUSH, INTAKE VALVE GUIDE, NO.2
sub11122-22040
11126BUSH, EXHAUST VALVE GUIDE
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
11131SEAT, INTAKE VALVE
11131ASEAT, INTAKE VALVE, NO.2
11135SEAT, EXHAUST VALVE
11135ASEAT, EXHAUST VALVE, NO.2
11155APIN, RING W/HEAD
11155BPIN, RING
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159EBOLT(FOR CAMSHAFT OIL FEED PIPE)
11183PLUG, SEMICIRCULAR
11193GASKET, SPARK PLUG TUBE
11193AGASKET, SPARK PLUG TUBE, LH
11201COVER SUB-ASSY, CYLINDER HEAD
11201HBOLT(FOR CYLINDER HEAD COVER)
11202COVER SUB-ASSY, CYLINDER HEAD, LH
11202CBOLT(FOR CYLINDER HEAD COVER LH)
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
11259COVER, V-BANK
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
15044PIPE SUB-ASSY, CAMSHAFT OIL FEED
15303HARNESS SUB-ASSY, OIL CONTROL VALVE
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
1601
16603DBUSH, IDLER PULLEY, NO.1
1701
1708
1709
9011606060
main90116-06060
9011606100
main90116-06100
9011608039
main90116-08039
9017606023
main90176-06023
91511B0612
main91511-B0612
91511B0614
main91511-B0614
92132B0614
main92132-B0614
64 parts on this diagram · 3 diagrams in section
