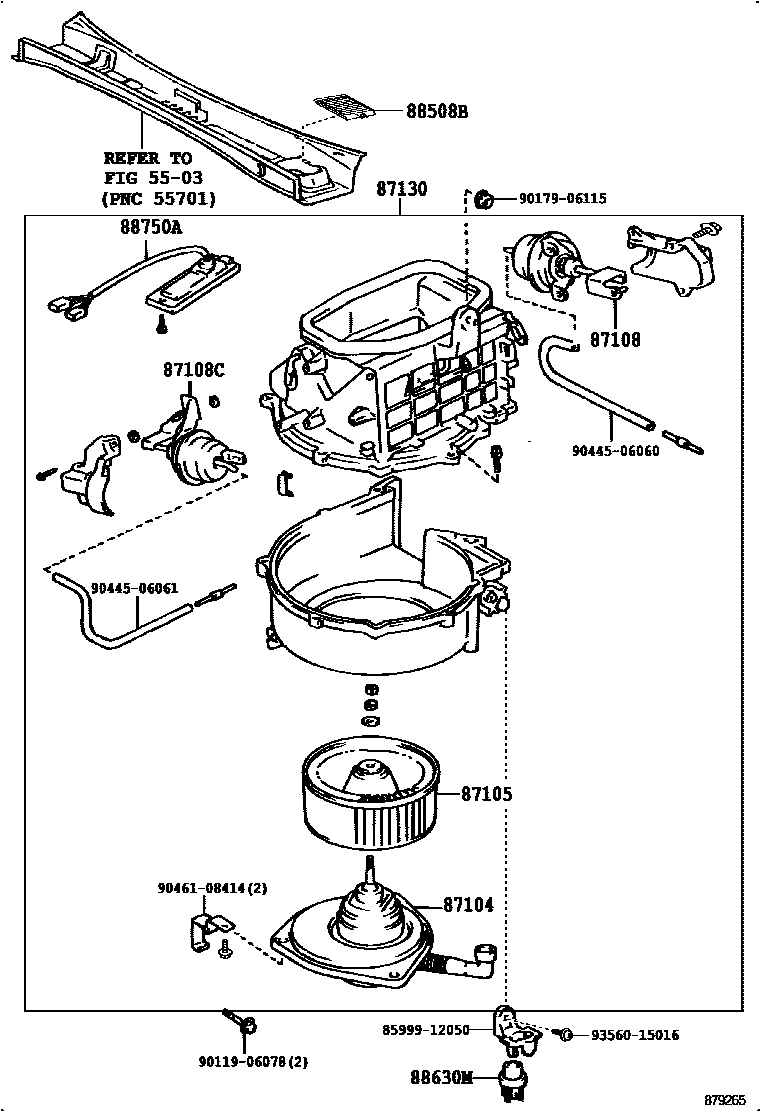

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-40010iVG4#198709-199103

main87104-40020iVG40..4HC..E198910-199009

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14030iVG4#198709-199701

87108DIAPHRAGM SUB-ASSY, HEATER DOOR CONTROL

main87108-40010iVG4#198709-199701

87108CDIAPHRAGM SUB-ASSY, HEATER BLOWER DAMPER

main87108-24020iVG4#198709-199701

87130BLOWER ASSY, HEATER, FRONT

main87130-40010iVG4#198709-199103

main87130-40020iVG40..4HC..E198910-199009

88508BFILTER SUB-ASSY, CLEAN AIR

main88508-40010iVG4#199009-199701

88630MRELAY ASSY, COOLER

main90987-02004iVG4#198709-199701

88750ATRANSISTOR ASSY, BLOWER RESISTOR

main88750-24011iVG4#198709-199701

8599912050BRACKET, COMBINATION RELAY

main85999-12050

9011906078

main90119-06078

9017906115

main90179-06115

9044506060

main90445-06060

9044506061

main90445-06061

9046108414

main90461-08414

9356015016

main93560-15016

16 parts on this diagram · 1 diagram in section
