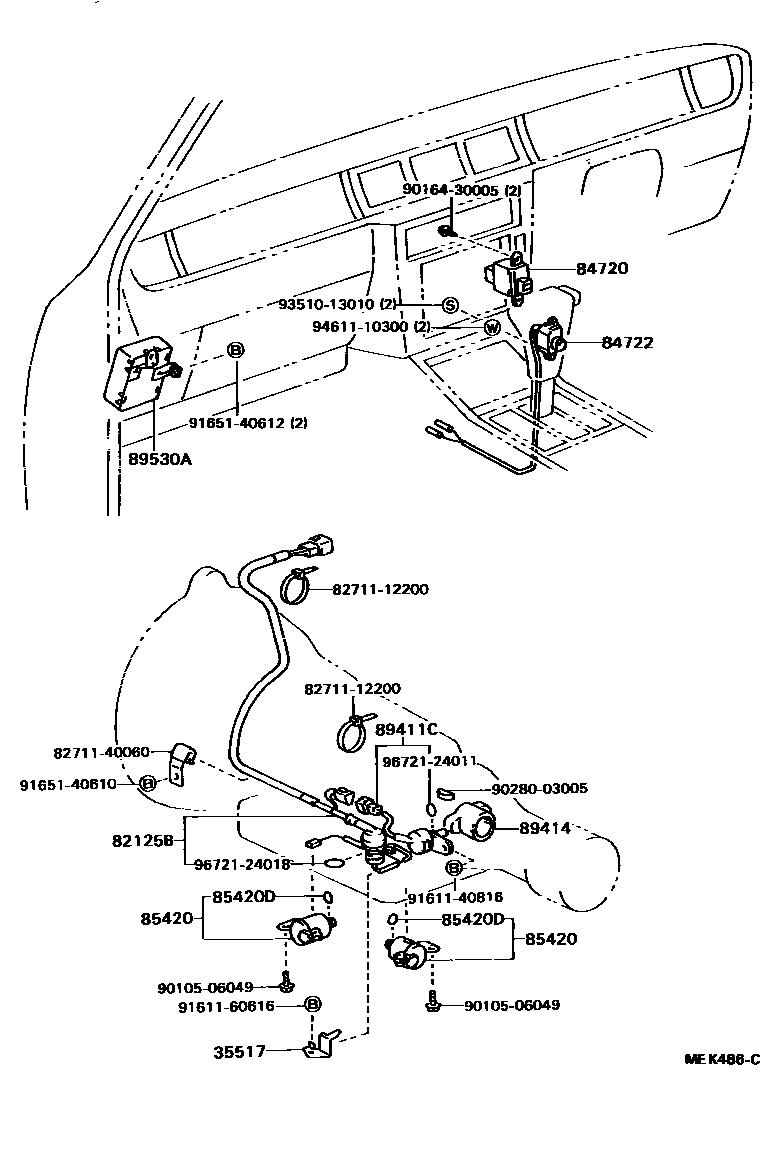

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

35517PLATE, TRANSMISSION WIRE LOCK

main35517-30010iVG4#198709-199212

82125BWIRE, TRANSMISSION

main82125-40010iVG40..D198709-199212

main82125-40020iVG4#..E,L; VG40..D199205-199212

main82125-40030iVG4#199212-199701

84720SWITCH ASSY, PATTERN SELECT

main84720-40010iVG40198709-199009

main84720-40020iVG4#199009-199701

84722SWITCH, TRANSMISSION CONTROL

main84722-14070-11iVG4#..4FC..(E,L)199009-199212

BLACK,TRIM2#

main84722-14070-13iVG40..4FC..E198709-199008

SHADOW GRAY,TRIM1#

main84722-14070-32iVG4#..4FC..(E,L)199009-199212

MAROON,TRIM3#

main84722-14070-34iVG4#..4FC198709-199212

DARK BLUE,TRIM8#

main84722-40020iVG4#..4FC199212-199701

main84722-40020-B0iVG4#..4FC199212-199701

SHADOW GRAY,TRIM1#

main84722-40020-E0iVG4#..4FC..(E,L)199212-199701

SABLE,TRIM4#

main84722-40020-J0iVG4#..4FC199212-199701

DARK BLUE,TRIM8#

85420SOLENOID ASSY, TRANSMISSION

main85420-12020×2iVG40198709-198804

main85420-22080×2iVG4#199205-199212

main85420-50020×2iVG4#199212-199701

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iVG4#198709-199205

89411CSENSOR, SPEED

main89411-22060iVG40..D198709-198812

main89411-22061iVG40..D198812-199212

main89411-22070iVG40..D199212-199701

SP2(ENGINE HOUSING)

main89411-50010iVG4#..E,L; VG40..D199212-199701

C0

89414ROTOR, SENSOR

main89414-22010iVG40..D199212-199701

main89414-30020iVG40..D198709-198812

main89414-30021iVG40..D198812-199212

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-40010iVG40198709-198903

main89530-40011iVG4#198903-199203

main89530-40012iVG4#199203-199212

main89530-40021iVG45..4HC199009-199212

main89530-40030iVG4#199212-199701

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271140060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-40060

9010506049

main90105-06049

9016430005

main90164-30005

9028003005

main90280-03005

9161140816

main91611-40816

9161160616

main91611-60616

9165140610

main91651-40610

9165140612

main91651-40612

9351013010

main93510-13010

9461110300

main94611-10300

9672124011

main96721-24011

9672124018

main96721-24018

22 parts on this diagram · 2 diagrams in section
