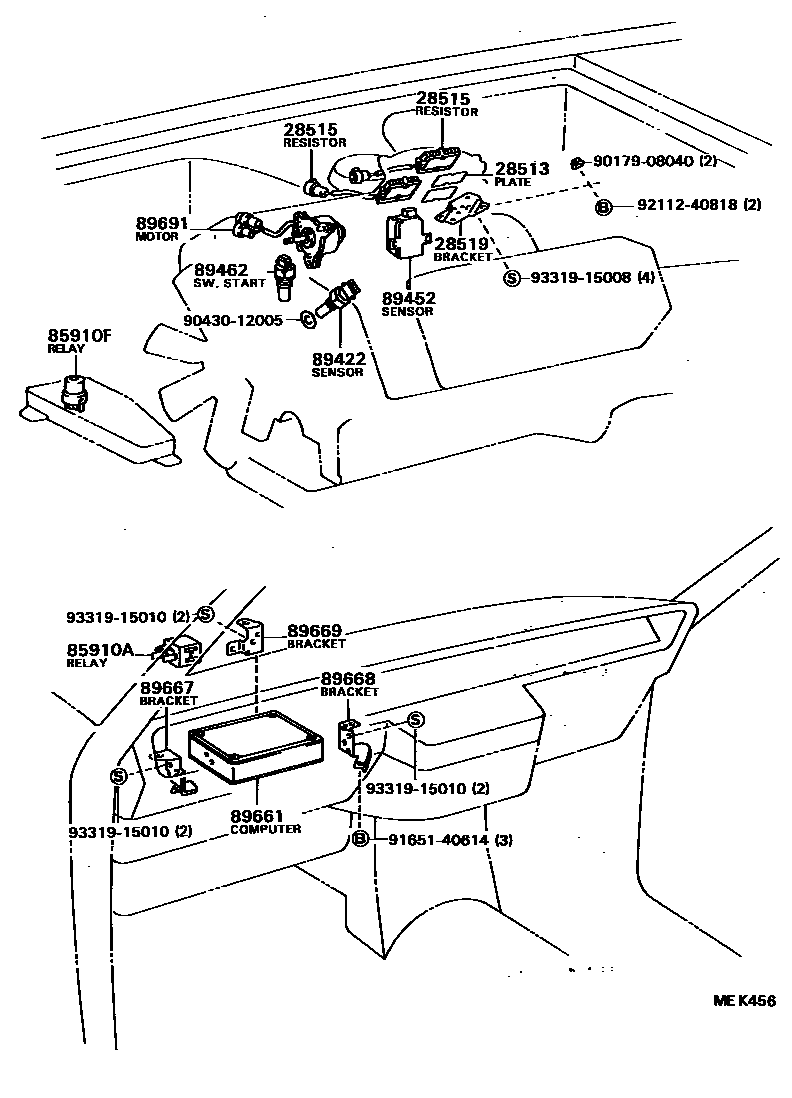

ELECTRONIC FUEL INJECTION SYSTEM

28513PLATE, SOLENOID RESISTOR

main28513-52010×2i5VEU..VG4#198709-199212

main28513-52020×2i5VEU..VG4#199212-199701

28515RESISTOR, SOLENOID

main28515-52010×2i5VEU..VG4#198709-199212

main28515-52020×2i5VEU..VG4#199212-199701

28519BRACKET, SOLENOID RESISTOR

main28519-52020i5VEU..VG4#198709-199701

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-22040iVG4#198709-199701

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iVG4#198709-199701

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iVG4#199009-199701

main89422-30020iVG40198709-199009

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iVG40198709-199009

main89452-22090iVG4#199009-199701

89462SWITCH, START INJECTOR TIME

main89462-20030iVG4#199009-199701

main89462-30011iVG40198709-199009

89661COMPUTER, ENGINE CONTROL

main89661-40020iVG40198709-198905

main89661-40021iVG40198905-199003

main89661-40022iVG4#199003-199212

main89661-40030iVG40..4HC..E198910-199003

main89661-40031iVG40..4HC..E199003-199005

main89661-40040iVG4#199212-199412

main89661-40050iVG40..4HC; VG45..4HC199212-199412

main89661-40060iVG4#199412-199701

main89661-40070iVG40..4HC; VG45..4HC199412-199701

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-40010iVG4#198709-199701

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-40010iVG4#198709-199701

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-40010iVG4#198709-199701

89691MOTOR, IDLE SPEED CONTROL

main89691-40010iVG40198709-199009

main89691-40011iVG4#199009-199701

9017908040

main90179-08040

9043012005

main90430-12005

9165140614

main91651-40614

9211240818

main92112-40818

9331915008

main93319-15008

9331915010

main93319-15010

19 parts on this diagram · 1 diagram in section
