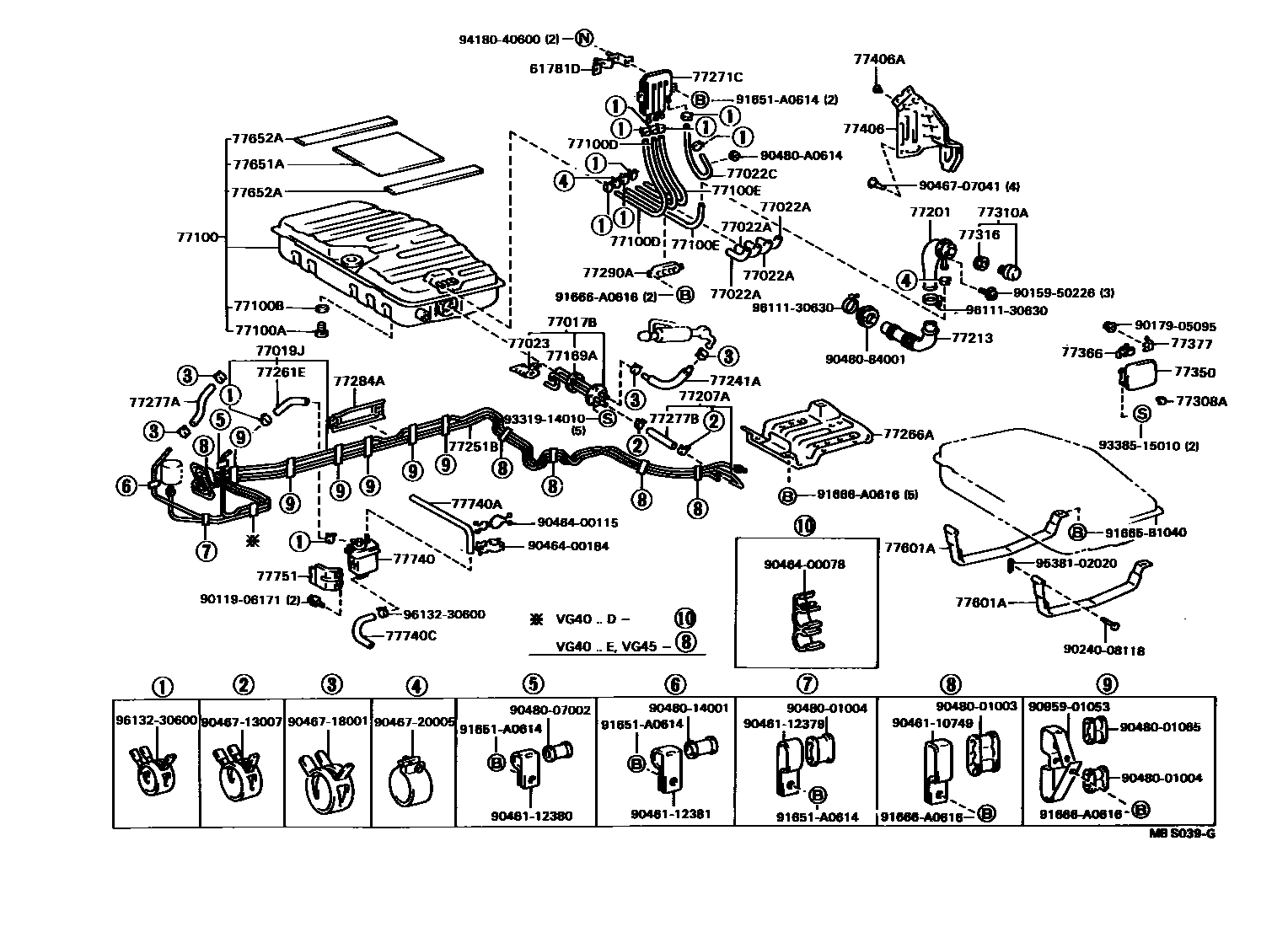

FUEL TANK & TUBE
61781DBRACKET, FUEL VAPOR LIQUID SEPARATOR
77017BTUBE SUB-ASSY, FUEL TANK VENT
77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER
77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
77169AGASKET, FUEL SUCTION TUBE SET
77201PIPE SUB-ASSY, FUEL TANK INLET
77207ATUBE SUB-ASSY, FUEL RETURN
77213HOSE, FUEL TANK SUB INLET
77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77251BTUBE, FUEL MAIN
77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
sub95338-06030
77266APROTECTOR, FUEL TUBE, NO.1
77271CSEPARATOR, FUEL VAPOR LIQUID
77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
sub95337-08020
77284APROTECTOR, FUEL TUBE, NO.3
77308ACUSHION(FOR FUEL INLET BOX COVER)
77310ACAP ASSY, FUEL TANK
sub77310-12140
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77406PROTECTOR SUB-ASSY, FUEL TUBE
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77740CANISTER ASSY, CHARCOAL
77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77751BRACKET, CHARCOAL CANISTER BASE
9011906171
main90119-06171
9015950226
main90159-50226
9017905095
main90179-05095
9024008118
main90240-08118
9046110749
main90461-10749
9046112379
main90461-12379
9046112380
main90461-12380
9046112381
main90461-12381
9046400078
main90464-00078
9046400115
main90464-00115
9046400184
main90464-00184
9046707041
main90467-07041
9046713007
main90467-13007
9046718001
main90467-18001
9046720005
main90467-20005
9048001003
main90480-01003
9048001004
main90480-01004
9048001065
main90480-01065
9048007002
main90480-07002
9048014001
main90480-14001
9048084001
main90480-84001
90480A0614
main90480-A0614
9095901053
main90959-01053
91651A0614
main91651-A0614
91665B1040
main91665-B1040
91666A0616
main91666-A0616
9331914010
main93319-14010
9338515010
main93385-15010
9418040600
main94180-40600
9538102020
main95381-02020
9611130630
main96111-30630
9613230600
main96132-30600
