LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-40040iVG4#198709-199212

sub69051-40041

main69051-40041iVG4#199212-199701

sub69051-29306

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-40040iVG4#198709-199212

sub69052-40041

main69052-40041iVG4#199212-199701

sub69052-29306

69054CCYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-40020iVG4#198709-199701

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-40020iVG4#198709-199701

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-40020iVG4#198709-199701

69503CYLINDER SET, LOCK

main69005-40030iVG4#198709-199212

sub69005-40031

main69005-40031iVG4#199212-199701

69503AKEY, BLANK

main90999-00141iVG4#198709-199701

main90999-00142iVG4#198709-199701

69555COVER, KEY

main84041-40011iVG4#198709-199701

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-30020iVG4#198709-199701

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iVG4#198709-199701

69685PAD, LOCK CYLINDER

main69513-12020iVG4#198709-199701

9015940205

main90159-40205

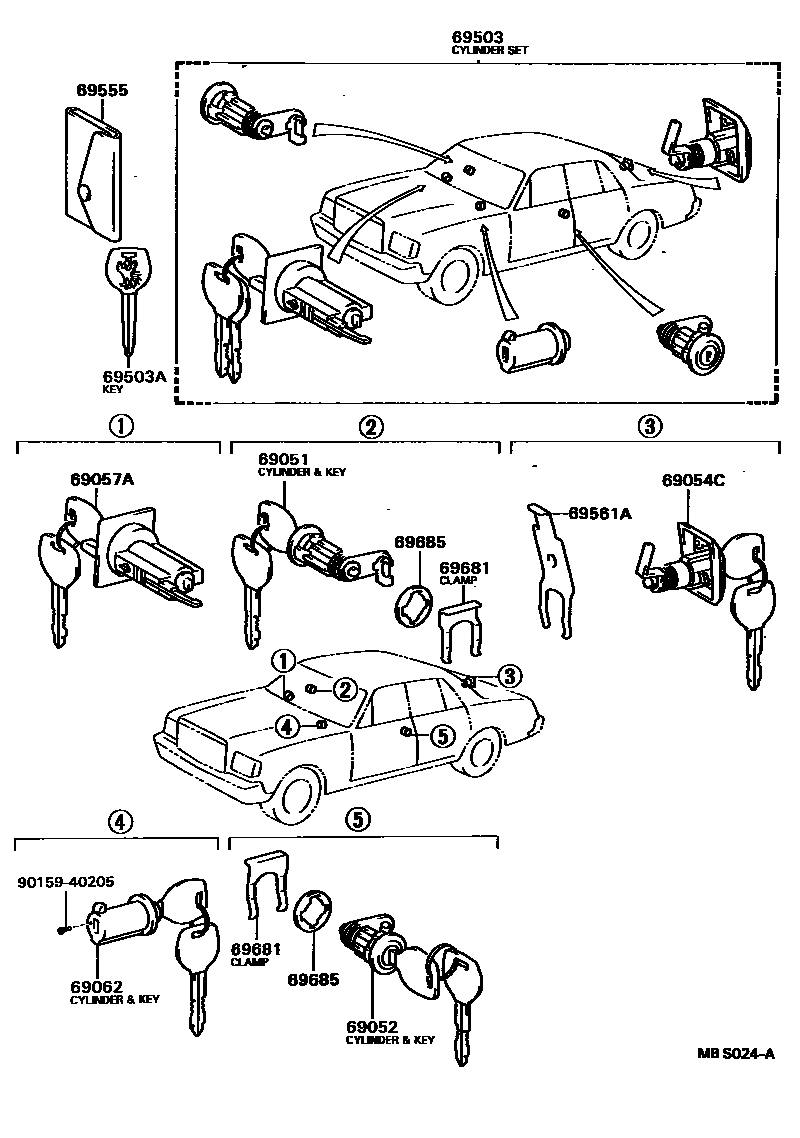

12 parts on this diagram · 1 diagram in section
